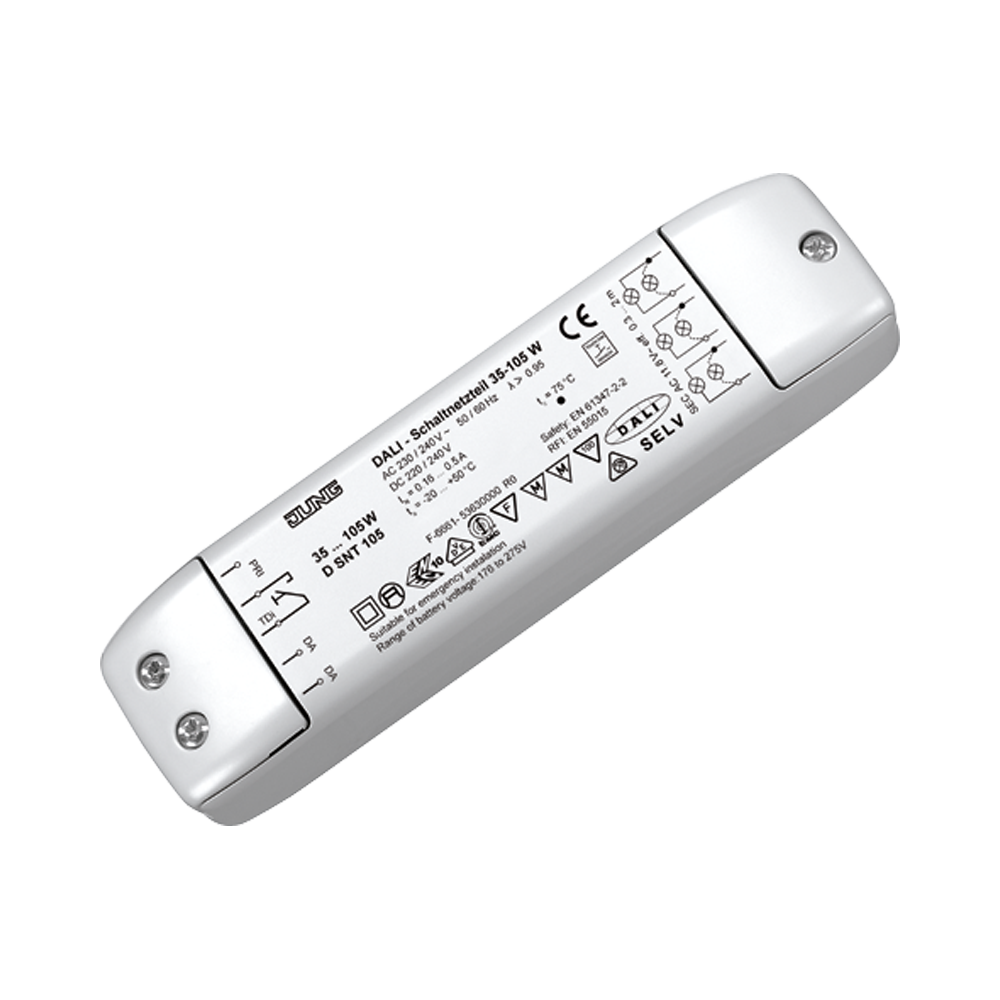

DALI transformer for LV halogen lamps
D SNT 105
Intended use
Product characteristics
- Power supply for 12 V halogen lamps
- Switching and brightness adjustment is performed with DALI control units or push-buttons
- Ceiling installation or surface mounting
Product characteristics
- No-load protection
- Electronic short-circuit protection
- Electronic overload protection
- Electronic over-temperature protection
- Suitable for operation in systems with emergency power supply
Read less...
Read more...
Information
| Article number: | D SNT 105 |
|---|---|
| EAN/GTIN: | 4011377051867 |
Read less...
Read more...
Technical data
| Rated capacity: | 35 ... 105 W |
| Rated voltage: | AC 230 / 240 V ~ |
| Mains frequency: | 50/60 Hz |
| Output voltage: | 11.5 V eff. ~ 40 kHz |
| Short-circuit protection: | electronic protection without fuse |
| Output cable length: | max. 2 m |
| Dimensions: | 170 x 44 x 34 mm |
| Ambient temperature: | max. 50 °C |
| Terminals: | screw terminals |
| primary terminals: | 1 x 0.5 ... 1.5 mm² |
| secondary terminals: | 1 x 0.75 ... 2.5 mm² |
| Approvals: | VDE |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Tendering text | |
| EC Declaration of Conformity | |
| Product data sheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.222 KG |
| Length | 170 MM |
| Height | 34 MM |
| Width | 44 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.222 KG |
| Length | 216 MM |
| Height | 54 MM |
| Width | 52 MM |
