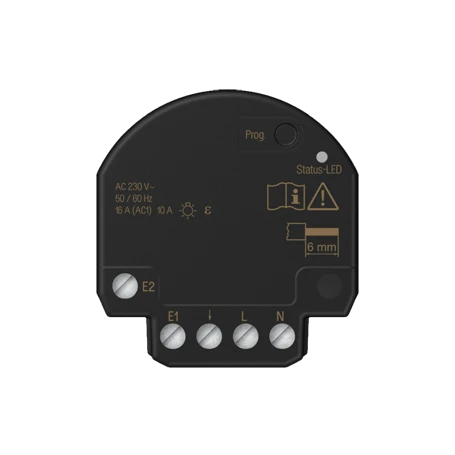

JUNG HOME switch actuator 1-gang mini with 2 binary inputs
BT S1 B2 U
Intended use
Product characteristics
- Manual and automatic switching of lighting and common household devices
- Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button, JUNG HOME sensors and JUNG HOME app
- Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
- Wireless linking with JUNG HOME system devices
- Installation in flush box with dimensions according to DIN 49073
- Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG
Product characteristics
- Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
- Independent use of actuator functions and binary inputs
- Multi-coloured status indicator and Prog button for commissioning
- Disabling the Prog button
- Including the load in areas (groups), central functions and scenes
- Up to 16 time programs
- Staircase lighting function (automatic switch-off) with switch-off warning
- Run-on time, switch-on delay, switch-off delay
- Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
- Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
- Activate/deactivate automatic functions using the JUNG HOME app
- Automatic date and time update when connecting with mobile device
- Time programs with sunrise or sunset (astro timer)
- Wind alarm via connection of weather sensors to binary inputs
- Bluetooth® Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Read less...
Read more...
Information
| Article number: | BT S1 B2 U |
|---|---|
| EAN/GTIN: | 4011377202801 |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Input voltage: | AC 230 V ~ |
| Stand-by power: | max. 0.2 W |
| Power loss: | max. 4 W |
| Ambient temperature: | −5 ... +45 °C |
| Storage temperature: | −5 ... +45 °C |
| Transport temperature: | −25 ... +70 °C |
| Relative humidity: | 20 ... 70 % (no condensation) |
| Switching current at 35 °C | |
| Ohmic: | 16 A (AC1) |
| Motors: | 6 A |
| Installation depth: | 20 mm |
| Accuracy per month: | ± 13 s |
| Power reserve: | min. 4 h |
| Connected load at 35 °C | |
| Incandescent lamps: | 2300 W |
| HV halogen lamps: | 2300 W |
| Electronic transformers: | 1500 W |
| Inductive transformers: | 1000 VA |
| HV LED lamps: | typical 400 W |
| Compact fluorescent lamps: | typical 400 W |
| Fluorescent lamps non-compensated: | 920 VA |
| Reduction of load | |
| for every 5 °C exceededing 35 °C: | −5 % |
| for installation into wooden or hollow walls: | −15 % |
| for installation into multiple combinations: | −20 % |
| Cable length | |
| Output cable: | max. 100 m |
| Binary input: | max. 50 m |
| Dimensions (L x W x H): | 48 x 51 x 20 mm |
| Radio frequency: | 2402.0 ... 2480.0 MHz |
| Transmitting power: | max. 10 mW (class 1.5) |
| Transmission range | |
| in buildings: | approx. 30 m |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Workbook |
Select language
|
| Tendering text | |
| EC Declaration of Conformity | |
| Product data sheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.07 KG |
| Length | 82 MM |
| Height | 45 MM |
| Width | 82 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 0.798 KG |
| Length | 235 MM |
| Height | 92 MM |
| Width | 175 MM |
