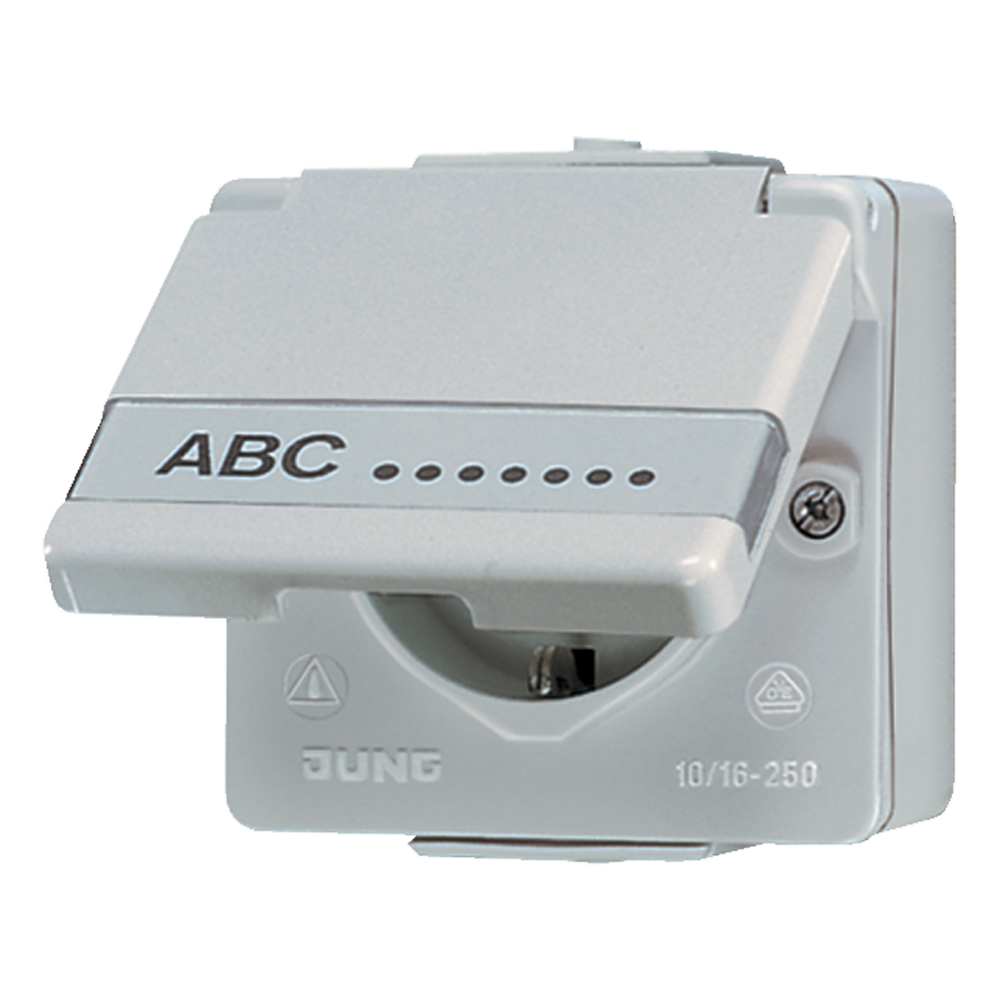

SCHUKO® socket, 16 A 250 V ~, with inscription field, IP 44, WG 600

620 NAW

620 NAW

with inscription field 17 x 72 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

height above surface: 47 mm

Spare part:
Transparent cover with paper inlay ref.-no.: 606 NA

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

discontinued

Successors Art. No. 820 NAW Date of discontinuation 31.10.2026

Degree of protection IP44 is ensured.

Individual inscription of paper inlays for incription fields possible

Information

Article number:	620 NAW
EAN/GTIN:	4011377488403
Successors	Art. No. 820 NAW
Date of discontinuation:	31.10.2026

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
