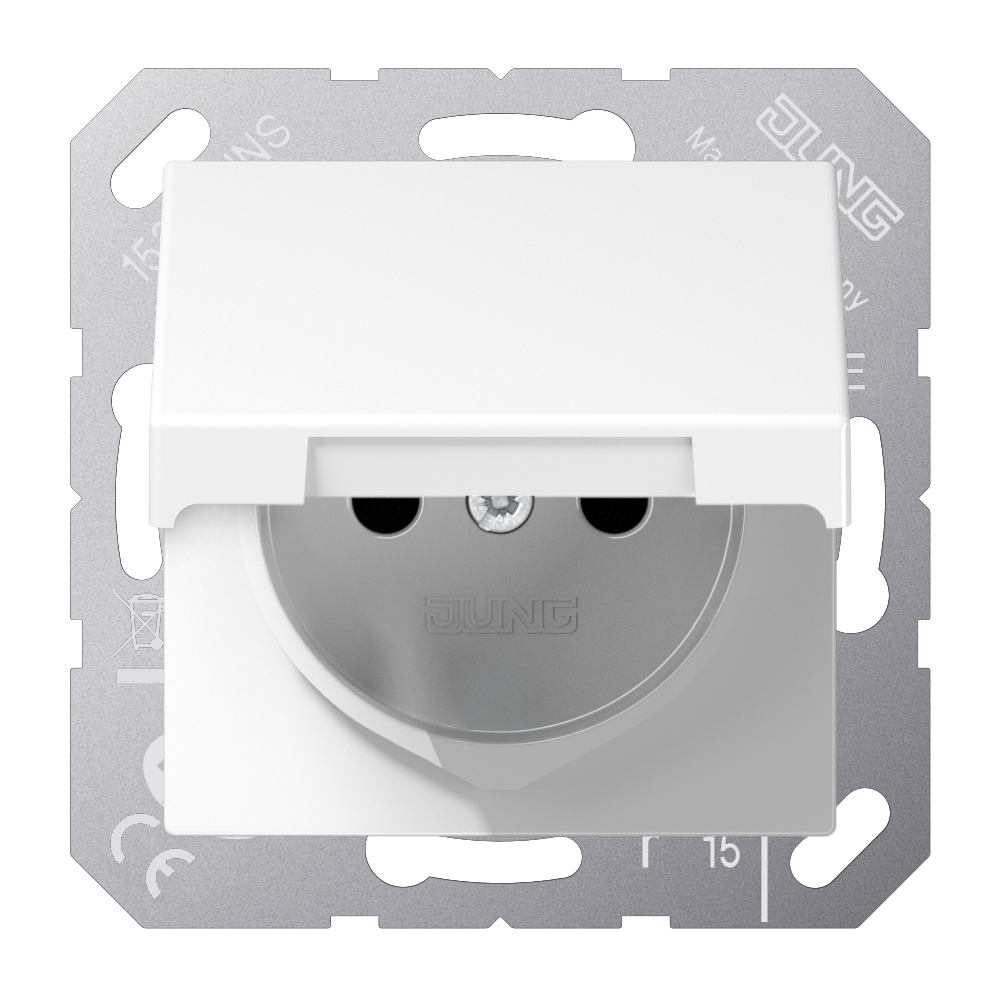

Socket, French/Belgian system, Safety Plus, hinged lid, duroplastic, A range, white

A 1520 FKIKL WW

Socket, French/Belgian system, Safety Plus, duroplastic, white

A 1520 FKIKL WW

2-pole + male earth pin, 16 A / 250 V ~
CEE 7/5
with hinged lid (with spring)
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy

Read less... Read more...

new

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Information

Article number:	A 1520 FKIKL WW
EAN/GTIN:	4011377380240
Colour:	white

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.094 KG
Length	71 MM
Height	39 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	1.042 KG
Length	290 MM
Height	80 MM
Width	180 MM
Palette
Packaging unit	2240 pc.
Weight	308.208 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
