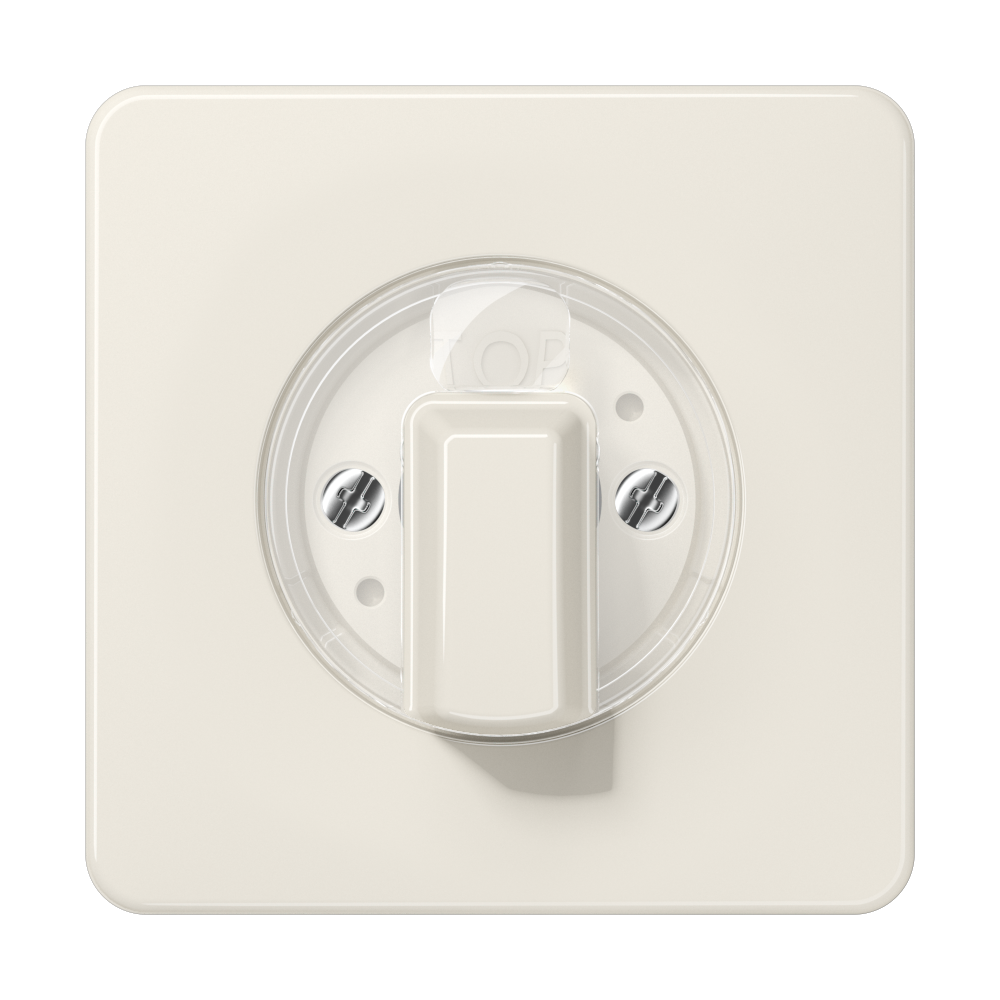

Centre plate for rotary switch insert 1-gang, duroplastic, CD range, ivory

CD 1541

Centre plate, for rotary switch insert, ivory
arrow-slider
arrow-slider
  • Centre plate, for rotary switch insert, ivory
arrow-left-slim
arrow-right-slim
  • Centre plate, for rotary switch insert, ivory
CD 1541
arrow-left-slim
arrow-right-slim
  • Centre plate, for rotary switch insert, ivory
for rotary switch ref.-no.: 1101-4, 1101-20, 1101-32
for timer switch ref.-no.: 11015, 11120-20, 11030, 11030-20, 11060
for rotary blind switch ref.-no.: 1234.10, 1234.20

also for volume control WHD type: LST..JU UP and LR..JU UP and for program selection WHD type: PRO 3 JU..

Duroplastic (scratch-proof) glossy
Read less... Read more...
Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
Individual colour printing possible
More articles

Information

Article number: CD 1541
EAN/GTIN: 4011377117730
Colour: ivory
Material: duroplastic
Width: 67 mm
Height: 67 mm
Read less... Read more...
Downloads
Show all downloads
Tendering text
GB
Select language
Select language
EN
DE
AT
AE
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Product data sheet
GB
Select language
Select language
DE
AT
EN
AE
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.037 KG
Length 66 MM
Height 28 MM
Width 64 MM
Carton
Packaging unit 10 pc.
Weight 0.35 KG
Length 210 MM
Height 94 MM
Width 96 MM
Read less... Read more...

Inserts

All products
1101-4

Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, anthracite
Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, anthracite
1101-20

Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, anthracite
Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, anthracite
1101-4 WW

Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, white
Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, white
1101-20 WW

Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, white
Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, white

Inserts

1101-4

Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, anthracite
Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, anthracite
1101-20

Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, anthracite
Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, anthracite
1101-4 WW

Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, white
Rotary switch insert, 3-level switch with OFF position, 16 AX 250 V ~, white
1101-20 WW

Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, white
Rotary switch insert, 1-way switch, 2-pole, 20 AX 250 V ~, white
1234.10

Rotary blind switch insert, 1-pole (1 motor), A 250 V ~, anthracite
Rotary blind switch insert, 1-pole (1 motor), A 250 V ~, anthracite
1234.10 WW

Rotary blind switch insert, 1-pole (1 motor), A 250 V ~, white
Rotary blind switch insert, 1-pole (1 motor), A 250 V ~, white
1234.20

Rotary blind switch insert, 2-pole (2 motors), A 250 V ~, anthracite
Rotary blind switch insert, 2-pole (2 motors), A 250 V ~, anthracite
1234.20 WW

Rotary blind switch insert, 2-pole (2 motors), A 250 V ~, white
Rotary blind switch insert, 2-pole (2 motors), A 250 V ~, white
11015

Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
11015 WW

Timer switch, 2-pole, 1-way, 16 AX 250 V ~, white
Timer switch, 2-pole, 1-way, 16 AX 250 V ~, white
11120-20

Timer switch, 1-pole, 2-way, 16 AX 250 V ~, anthracite
Timer switch, 1-pole, 2-way, 16 AX 250 V ~, anthracite
11120-20 WW

Timer switch, 1-pole, 2-way, 16 AX 250 V ~, white
Timer switch, 1-pole, 2-way, 16 AX 250 V ~, white
11030

Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
11030-20

Timer switch, 1-pole, 2-way, 16 AX 250 V ~, anthracite
Timer switch, 1-pole, 2-way, 16 AX 250 V ~, anthracite
11060

Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
11120

Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
Timer switch, 2-pole, 1-way, 16 AX 250 V ~, anthracite
1101-32

Rotary switch insert, 1-way switch, 2-pole, 32 AX 250 V ~, white
Rotary switch insert, 1-way switch, 2-pole, 32 AX 250 V ~, white

Frames

CD 581 W

Frame 1-gang, ivory
Frame 1-gang, ivory
CD 581 A W

Surface cap 1-gang, ivory
Surface cap 1-gang, ivory
