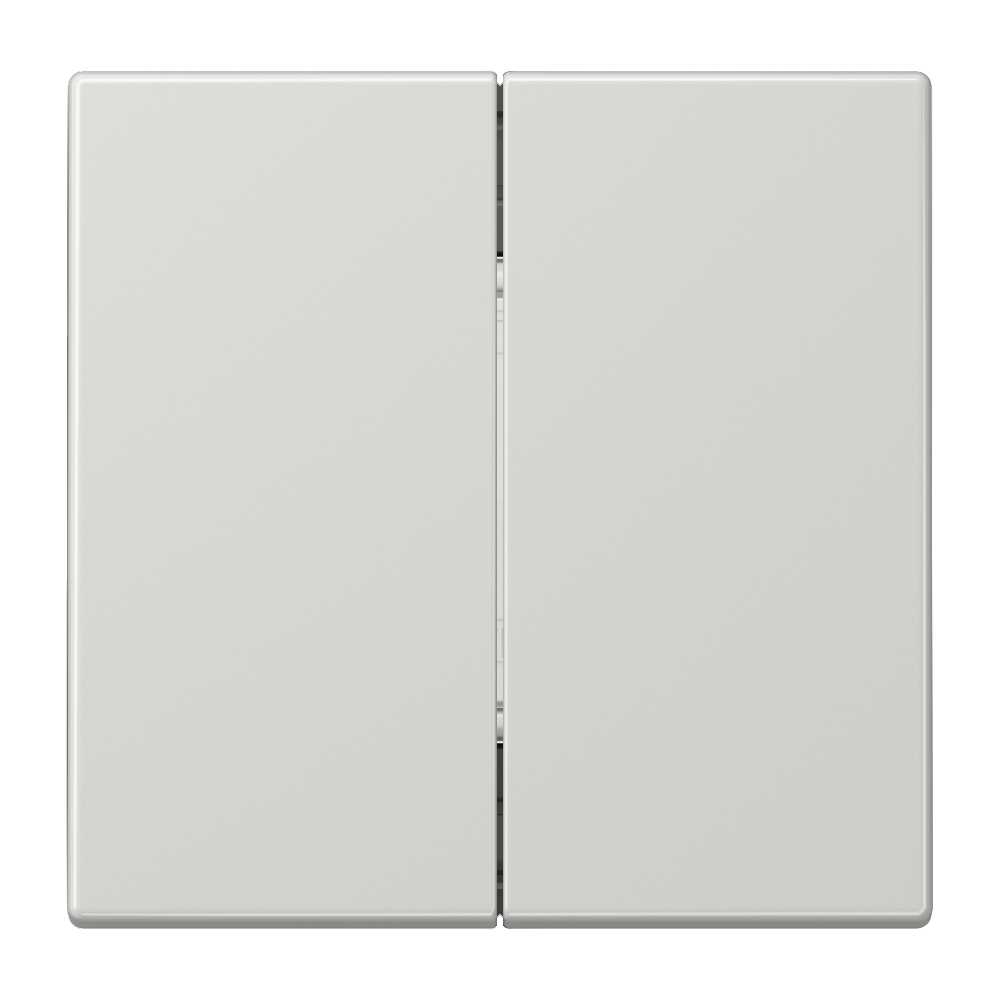

Matter push-button 2-gang, battery-powered, 4-channel, thermoplastic, LS range, light grey

MAT LS 995 LG

MAT LS 995 LG

4-channel
including mounting plate, adhesive film and retaining screw

Intended use

Operating devices or triggering actions in a Matter-compatible smart home system in combination with a border router
Wireless link to a border router that supports the Thread radio standard
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)

Product characteristics

Matter certified
Works with the Bluetooth^® Low Energy wireless standard during commissioning
Works with the Thread wireless standard during operation
Integration into smart home systems that support Matter, e.g. Apple Home or Samsung Smart Things
Functionality depends on the smart home system
Commissioning and parameterisation via the apps of the smart home system
Can be updated using the apps of the smart home system
Battery operation with one included lithium button cell

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Rated voltage:	DC 3 V
Ambient temperature:	−5 ... +45 °C
Storage temperature:	−5 ... +45 °C
Degree of protection:	IP20
Protection class:	III
Matter
Number of smart home systems:	max. 5
Communication protocol Matter
Thread
Radio frequency:	2.402 ... 2.480 GHz
Transmitting power:	typical 10 mW
Communication protocol Thread
Bluetooth^®
Radio frequency:	2.402 ... 2.480 GHz
Transmitting power:	typical 10 mW (class 1)
Transmission range:	typical 10 m
Communication protocol Bluetooth^® Low Energy
Battery life	approx. 3 years
