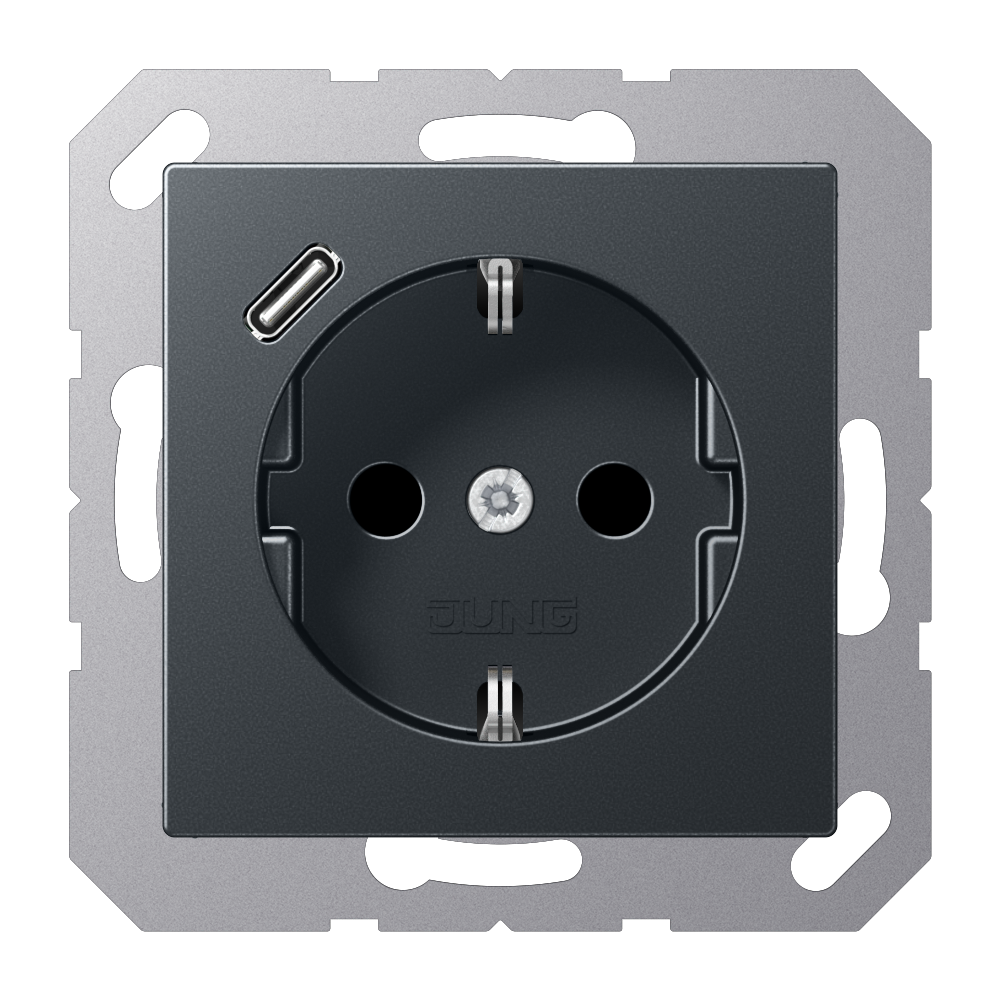

SCHUKO® socket, 16 A, with USB charger (JUNG Quick Charge®), 1 x type C, Safety Plus, A range, matt anthracite

A 1520-18 C ANM

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, thermoplastic lacquered, matt anthracite

A 1520-18 C ANM

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type C
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Spare part:
Centre plate ref.-no.: A 1520-18 C PL ..

matt lacquered

Accessories:
Frame 28 mm structure height ref.-no.: A 558.. HBF ..
Plastic design cover made from 95% recycled material in accordance with DIN EN ISO 14021 - sustainable, conserves resources

Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	A 1520-18 C ANM
EAN/GTIN:	4011377184305
Colour:	matt anthracite
Material:	thermoplastic lacquered
Type:	1 x type C
Width:	55 mm
Height:	55 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE EN ES FR NL NO
Tendering text	GB Select language Select language EN DE AT AE SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	GB Select language Select language EN DE AT AE SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	GB Select language Select language DE EN AE SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.12 KG
Length	70 MM
Height	60 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.144 KG
Length	84 MM
Height	74 MM
Width	84 MM
Palette
Packaging unit	1440 pc.
Weight	285.05 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
