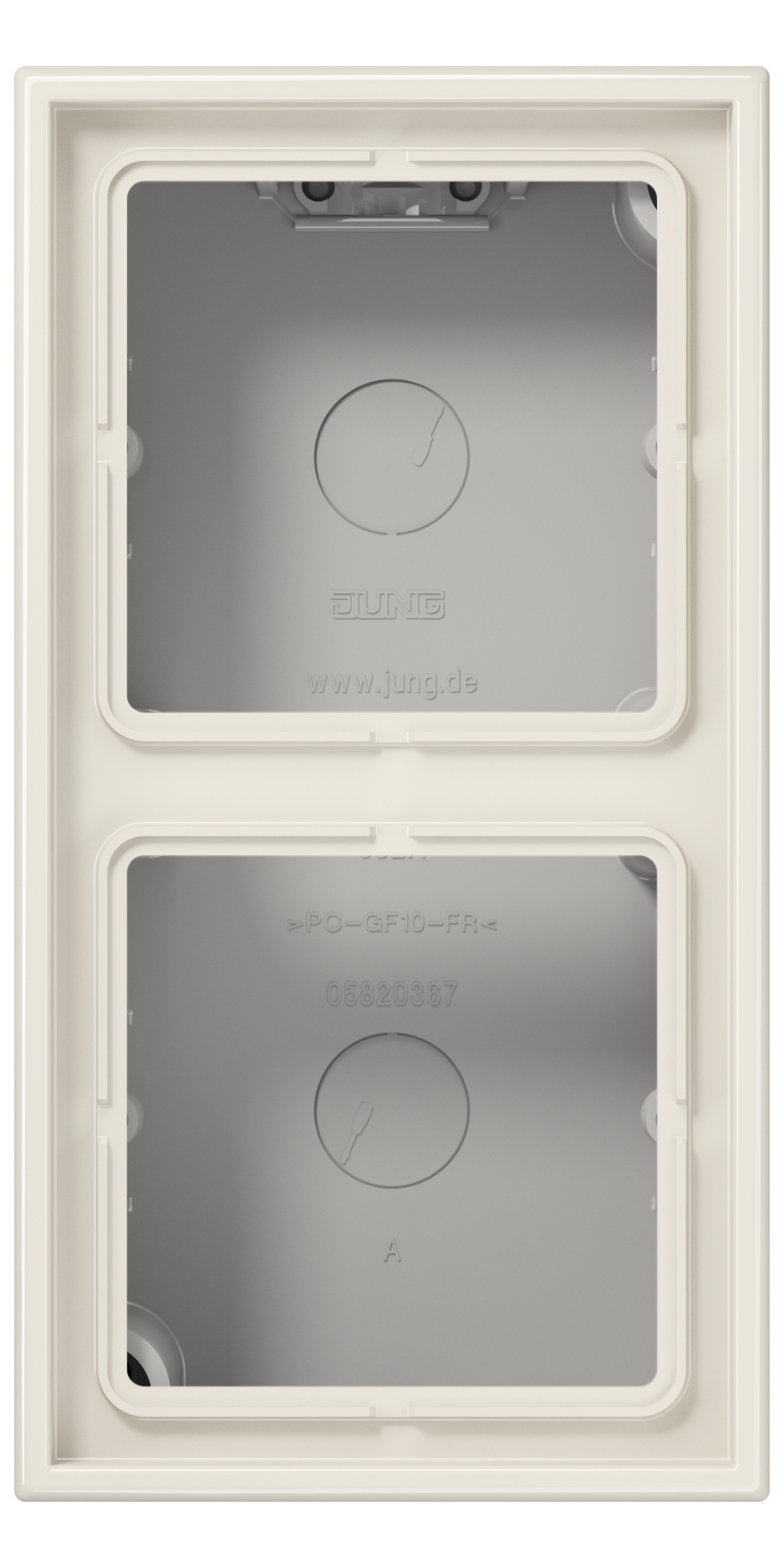

Surface cap 2-gang, LS CUBE, duroplastic, ivory, vertical and horizontal installation

LS 582 A W

LS 582 A W

with integrated frame and non-flammable ground plate
for inserts with covers of the LS range (except LS 1912 toggle switches, key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
152 x 81 x 47 mm
Installation depth max. 34 mm

Duroplastic (scratch-proof) glossy

Spare part:
mounting box ref.-no.: 582 A

Read less... Read more...

Article number:	LS 582 A W
EAN/GTIN:	4011377048690
Colour:	ivory
Material:	duroplastic
Version:	2-gang

Read less... Read more...

Downloads

Show all downloads

Tendering text	GB Select language Select language EN DE AT AE SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	GB Select language Select language DE EN AE SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.174 KG
Length	150 MM
Height	48 MM
Width	80 MM
Carton
Packaging unit	1 pc.
Weight	0.222 KG
Length	160 MM
Height	90 MM
Width	92 MM
Outer carton
Packaging unit	10 pc.
Weight	2.404 KG
Length	460 MM
Height	190 MM
Width	192 MM
Palette
Packaging unit	480 pc.
Weight	180.88 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
