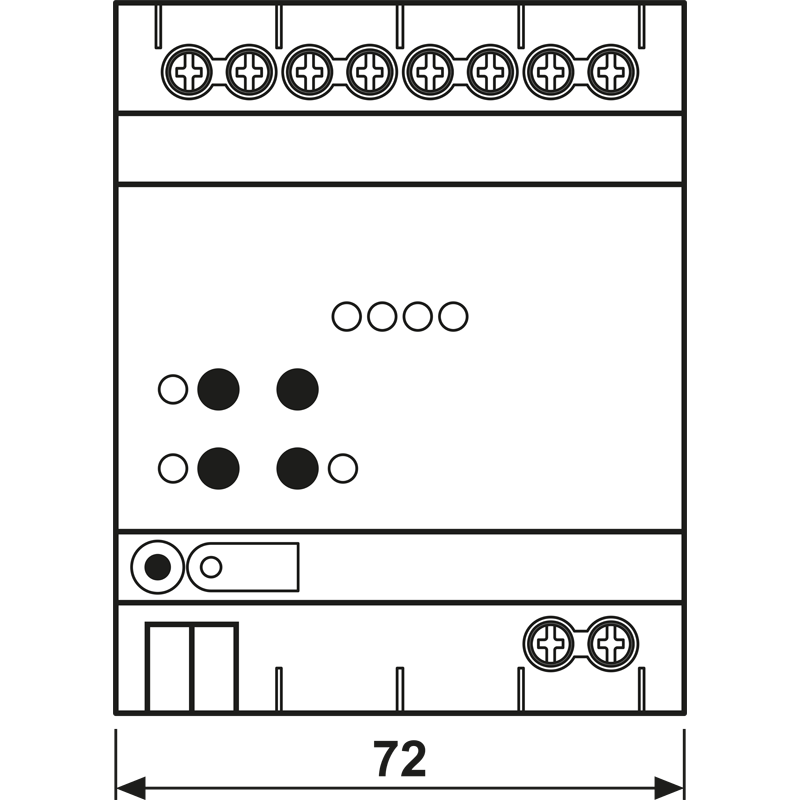

KNX DALI-2 actuator Colour 4-gang, rail mounting device, 4 rail units, Secure
30004 1S DA2 R
rail mounting device, 4 rail units
Kasutusotstarve
Toote omadused
Kasutusotstarve
- Controlling of luminaires and other applications with DALI operating device in KNX installations e.g. electronic ballast
- Mounting on DIN rail according to EN 60715 in distribution box
Toote omadused
- DALI-2 certified
- Multi-master capable: additional sensors can be installed as application controllers in any DALI system
- Control of up to 128 DALI devices in 4 DALI sytems
- Broadcast control of each of the four DALI systems
- Setting of colour temperature or light colour (RGB, RGBW) for luminaires with DALI Device Type 8 acc. to IEC 62386-209
- Short-circuit, overload and overvoltage protected
- Operating hours counter
- Automatic colour circle pass or brightness pass
- Suitable for operation with DC voltage of emergency lighting systems
- Manual operation of the DALI systems
- Forced guidance of disabling function
- Collective feedback
- Central switching and dimming function
- Disabling function for each DALI system
- Separate ON and OFF delay for each DALI system
- Staircase lighting timer with switch-off warning
- Standby switch-off of the DALI devices
- KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
- Can be updated with the ETS Service App
Read less...
Read more...
new
Information
| Article number: | 30004 1S DA2 R |
|---|---|
| EAN/GTIN: | 4011377322523 |
Read less...
Read more...
Technical data
| KNX | |
| KNX medium: | TP 256 |
| Commissioning mode: | S-mode |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | 3 ... 4 mA |
| Connection, KNX: | connection terminal |
| Power supply | |
| Nimipinge: | AC 110 ... 240 V ~, 50/60 Hz |
| Nimipinge: | DC 110 ... 240 V |
| Võimsuskadu: | max. 3 W |
| Energiatarve: | < 5 W |
| DALI | |
| DALI nimipinge: | DC 15.2 V (typ.) |
| Output current per DALI system: | typical 64 mA, max. 250 mA for short periods |
| Guaranteed bus current per DALI system: | 80 mA |
| DALI seadmete arv: | max. 40 per DALI system ∑ DA1 ... DA4 max. 128 |
| DALI transmission rate: | 1,2 kbit/s |
| DALI protocol: | EN 62386 |
| Käivitusaeg: | max. 5 s |
| Cable type: | sheathed cable 230 V, e,g. NYM |
| Cable length DALI | |
| with 0.5 mm²: | max. 116 m |
| with 0.75 mm²: | max. 174 m |
| with 1.0 mm²: | max. 238 m |
| with 1.5 mm²: | max. 300 m |
| Ambient conditions | |
| Õhutemperatuur: | −5 ... +45 °C |
| Hoiustamistemperatuur: | −5 ... +45 °C |
| Transporditemperatuur: | −25 ... +70 °C |
| Mounting width: | 72 mm (4 rail units) |
| Connection, power supply and DALI | |
| Connection mode: | screw terminals |
| ühe juhtme: | 0.5 ... 4.0 mm² |
| Kiudjuhe ilma otsahülsita: | 0.5 ... 4.0 mm² |
| Kiudjuhe otsahülsiga: | 0.5 ... 2.5 mm² |
Read less...
Read more...
Allalaadimised
| Kasutusjuhised | |
|---|---|
| Product documentation | |
| Datenbank ETS5 + ETS6 Secure | |
| Update | |
| Teenuse kirjeldus | |
| EÜ vastavusdeklaratsioon | |
| Artikli andmeleht |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.165 KG |
| Length | 95 MM |
| Height | 60 MM |
| Width | 95 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.204 KG |
| Length | 100 MM |
| Height | 80 MM |
| Width | 100 MM |
