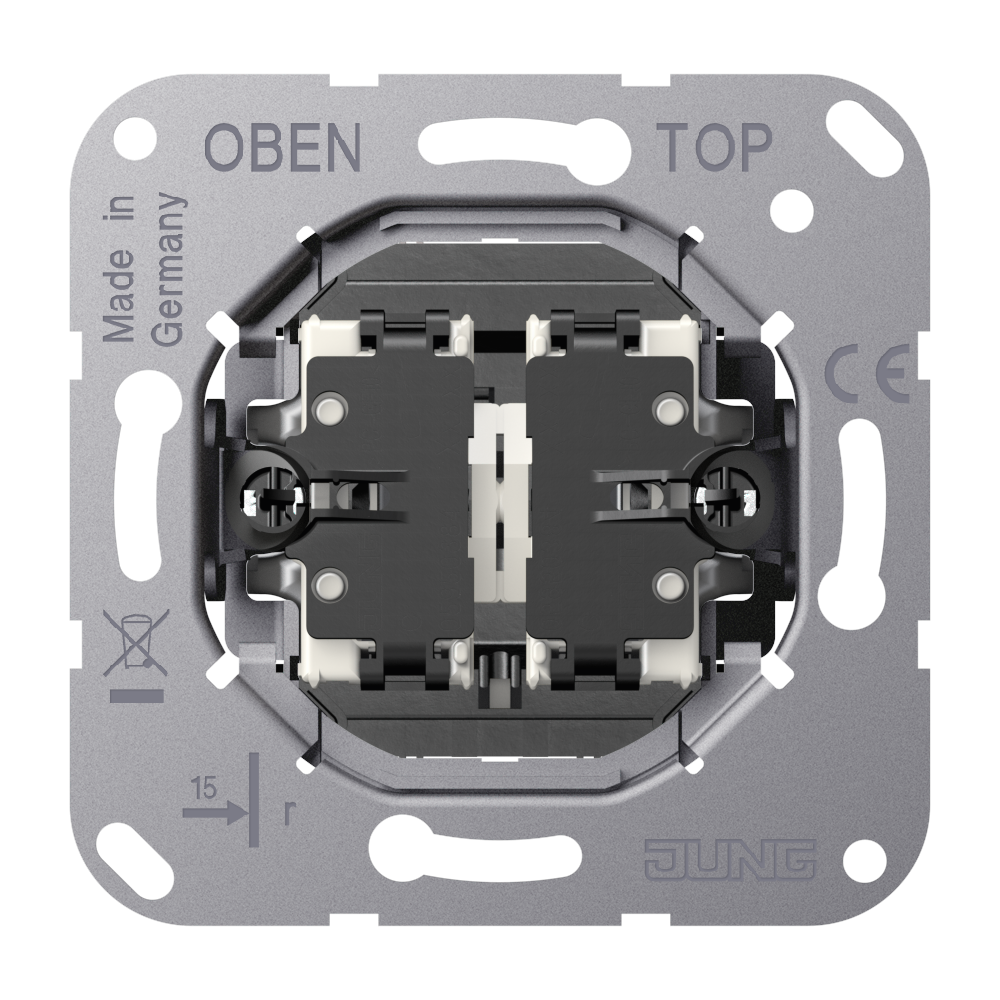

2-gang toggle blind push-button insert, 1-pole (1 motor), without claws, flush-mounted
K 539 VEU
with screwless terminals for rigid wires up to 2.5 mm2
screw fixing only, without claws
mechanical interlocking to avoid switching of both rockers at the same time
depth of flush box (inner dimension): min. 43 mm
for centre plates with 2 toggle levers ref.-no.: ..12-5 P..
screw fixing only, without claws
mechanical interlocking to avoid switching of both rockers at the same time
depth of flush box (inner dimension): min. 43 mm
for centre plates with 2 toggle levers ref.-no.: ..12-5 P..
Read less...
Read more...
Information
| Article number: | K 539 VEU |
|---|---|
| EAN/GTIN: | 4011377175129 |
| Version: | 1-pole (1 motor) |
Read less...
Read more...
Parsisiunčiama medžiaga
| Montavimo instrukcija | |
|---|---|
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.108 KG |
| Length | 85 MM |
| Height | 73 MM |
| Width | 85 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 1.078 KG |
| Length | 360 MM |
| Height | 88 MM |
| Width | 178 MM |
