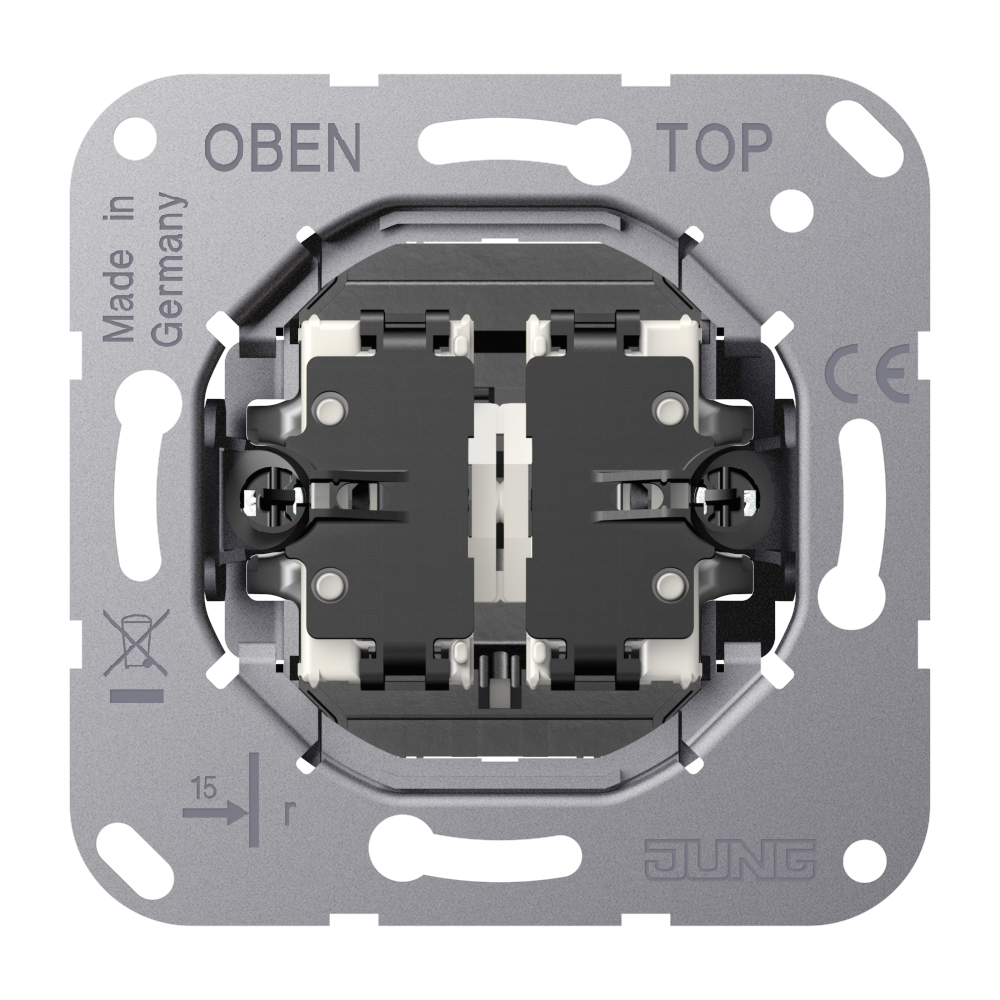

2-gang toggle push-button insert, 2 x 1-pole, 2-way, without claws, 10 A 250 V ~

K 539 EU

2-gang toggle push-button insert, 2 x 1-pole, 2-way, 10 A, 250 V ~

K 539 EU

with screw terminals for rigid and flexible wires up to 2.5 mm²

screw fixing only, without claws
depth of flush box (inner dimension): min. 43 mm
for centre plates with 2 toggle levers ref.-no.: ..12-5.., ..12-250.., ..12-25..

Read less... Read more...

Information

Article number:	K 539 EU
EAN/GTIN:	4011377360587
Version:	2 x 1-pole, 2-way

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Montavimo instrukcija	Select language Select language DE EN
Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
ES atitikties deklaracija	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.106 KG
Length	85 MM
Height	73 MM
Width	85 MM
Carton
Packaging unit	10 pc.
Weight	1.064 KG
Length	360 MM
Height	90 MM
Width	178 MM
