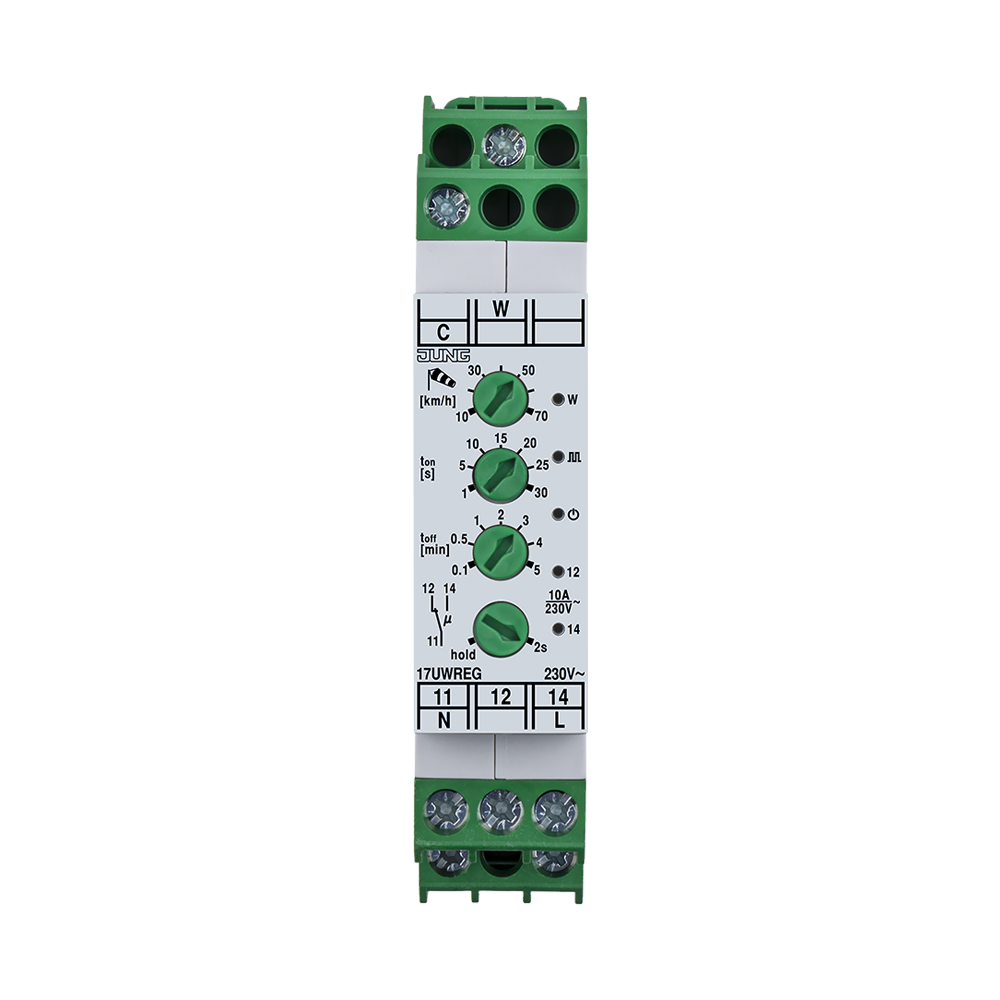

Converter wind
17 UW REG
rail mounting device, 1 rail unit
for connection of wind sensor ref.-no.: 17 W
Product characteristics
for connection of wind sensor ref.-no.: 17 W
Product characteristics
- Adjuster for threshold value "wind force"
- Adjuster for switch-on delay
- Adjuster for switch-off delay
- Operating mode switch (2-second pulse or permanent)
- LED "W": wind speed exceeded
- LED "pulse": current wind pulses
- LED "12": status indication relay output 12
- LED "14": status indication relay output 14
- Integrated power supply for sensors
- Group control with universal blinds insert
- Integration into JUNG HOME via binary inputs
Read less...
Read more...
new
Information
| Article number: | 17 UW REG |
|---|---|
| EAN/GTIN: | 4011377360778 |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Power consumption: | 0,6 W |
| Wind | |
| Measuring range: | 10 ... 70 km/h |
| Switching hysteresis: | 25 % |
| Switch-on delay: | 1 … 30 s (dynamic) |
| Switch-off delay: | 6 ... 300 s (adjustable) |
| Relay output: | 1 floating 2-way contact, 10 A / 250 V ~ |
| Power supply for sensor: | DC 3.3 V (PELV) |
| Connection | |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded with ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 1.5 mm² |
| Mounting width: | 18 mm (1 rail unit) |
| Ambient temperature: | −10 ... +45 °C |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Produkto dokumentacija | |
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.063 KG |
| Length | 89 MM |
| Height | 59 MM |
| Width | 18 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.098 KG |
| Length | 95 MM |
| Height | 46 MM |
| Width | 95 MM |
