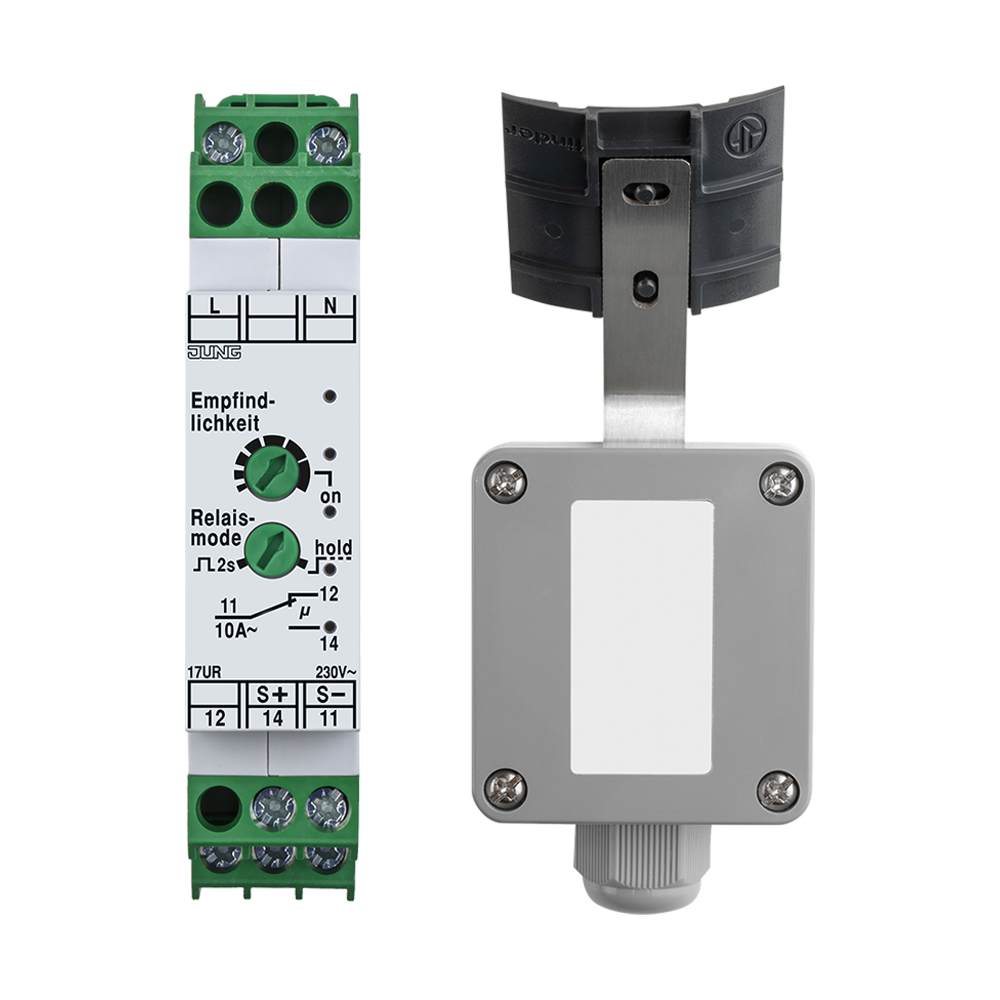

Converter with rain sensor
17 UR
Product characteristics
- Adjuster for sensitivity
- Operating mode switch (2-second pulse or permanent)
- LED "hold": threshold value exceeded
- Integrated power supply for sensors
- Rain sensor with heated surface
- Including mounting bracket for wall or pole mounting of the sensor
- Group control with universal blinds insert
- Integration into JUNG HOME via binary inputs
Read less...
Read more...
new
Degree of protection IP65 is ensured.
Information
| Article number: | 17 UR |
|---|---|
| EAN/GTIN: | 4011377360822 |
Read less...
Read more...
Technical data
| Converter | |
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Power consumption: | 1,2 W |
| Switch-off delay: | 30 s |
| Relay output: | 1 floating 2-way contact, 10 A / 250 V ~ |
| Power supply for sensor: | DC 24 V (PELV) |
| Connection | |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded with ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 1.5 mm² |
| Mounting width: | 18 mm (1 rail unit) |
| Ambient temperature: | −10 ... +45 °C |
| Rain sensor | |
| Supply voltage: | DC 24 V (PELV) |
| Sensor type: | capacitive |
| Heating power: | 0,6 W |
| Recommended cable: | J-Y(St)Y 2 x 2 x 0.8 mm |
| Cable length: | max. 25 m (with 2 x 0.25 mm²) |
| Cable inlet: | cable gland PG11 |
| Degree of protection: | IP65 |
| Dimensions: | 58 x 34 x 64 mm |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Produkto dokumentacija | |
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.182 KG |
| Length | 85 MM |
| Height | 34 MM |
| Width | 58 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.232 KG |
| Length | 96 MM |
| Height | 77 MM |
| Width | 95 MM |
