rail mounting device, 8 rail units
Intended use- Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
- Suitable for mixed load up to the specified output
- Operation by means of push-button sensors, sensor modules, push-button modules or unlit installation buttons
- Operation by means of push-button sensors, sensor modules, push-button modules or unlit installation buttons
- Mounting on DIN rail according to EN 60715 in distribution box
- It is not possible to operate the device with universal amplifiers in conjunction with electronic transformers! Please use TRONIC amplifiers for power extension when operating electronic transformers.
Product characteristics- The dimming station can be controlled using the button panel
- Activation of status LEDs on the control units. The dimming station has the activation outputs A1’...A4’ for this purpose.
- Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
- Electronic over-temperature protection
- Integrated memory function for each channel (storing of switch-on brightness value)
- Switch-on brightness can be saved permanently
- Switch-on via bulb-preserving soft start
- Switching off by dim-down function
- Increase in output power possible through parallel switching of multiple outputs

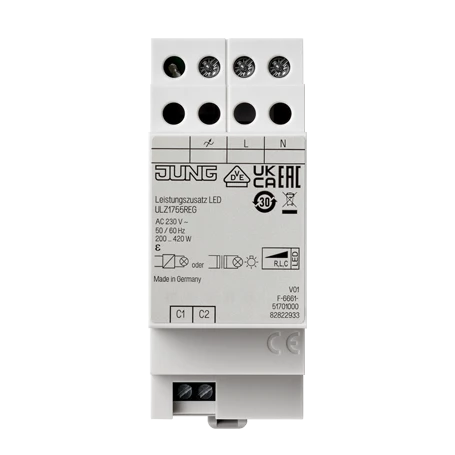

- Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)
- Special connection for hotel card switch
- Central switching function All On, All Off
- Parallel connection of two dimming stations or one dimming and one relay station
- Automatic setting of the dimming principle suitable for the load
- Optional accessory: compensation module LED, ref.-no.: KM LED 230 U
Function hotel card switchIn combination with a hotel card switch (ref.-no.: .. CARD ..): When plugging in the hotel card the light will be switched on with the stored brightness level. After removing the hotel card the light remains on and can be controlled for 1 more minute. After the elapsed time the light dims down (within an adjustable time of 30 seconds to 3 minutes) to minimum brightness and then switches off. The dimming station can be controlled again after plugging in the hotel card.
