Relay station universal, 8-gang, rail mounting device, 8 rail units
RS 8 REGHE
rail mounting device, 8 rail units
with manual electronic operation and LED status indication
8 1-way NO contacts
Intended use
Product characteristics
with manual electronic operation and LED status indication
8 1-way NO contacts
Intended use
- Switching of lighting
- Switching of single-phase fan motors
- Switching of electrically driven blinds, shutters and awnings
- Mounting on DIN rail in distribution box
- Operation by means of sensor modules, push-button modules, or unlit installation buttons
Product characteristics
- Local control. The relay station can be controlled using the button panel when the control units are not connected.
- Activation of status LEDs on the control units. The relay station has the activation outputs A1’...A8’ for this purpose.
- Switching operation
- Push-button operation
- Blind operation with slat adjustment
- Mixed operation of switching, push-button and blind control is possible.
- Central switching function All On, All Off
- Parallel switching of two relay stations or one dimming and one relay station
Read less...
Read more...
Information
| Article number: | RS 8 REGHE |
|---|---|
| EAN/GTIN: | 4011377036345 |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 ... 240 V ~ |
| Mains frequency: | 50/60 Hz |
| Power loss: | 12,5 W |
| Stand-by power: | 0,5 W |
| Length of control cable: | max. 100 m |
| Number of control units | |

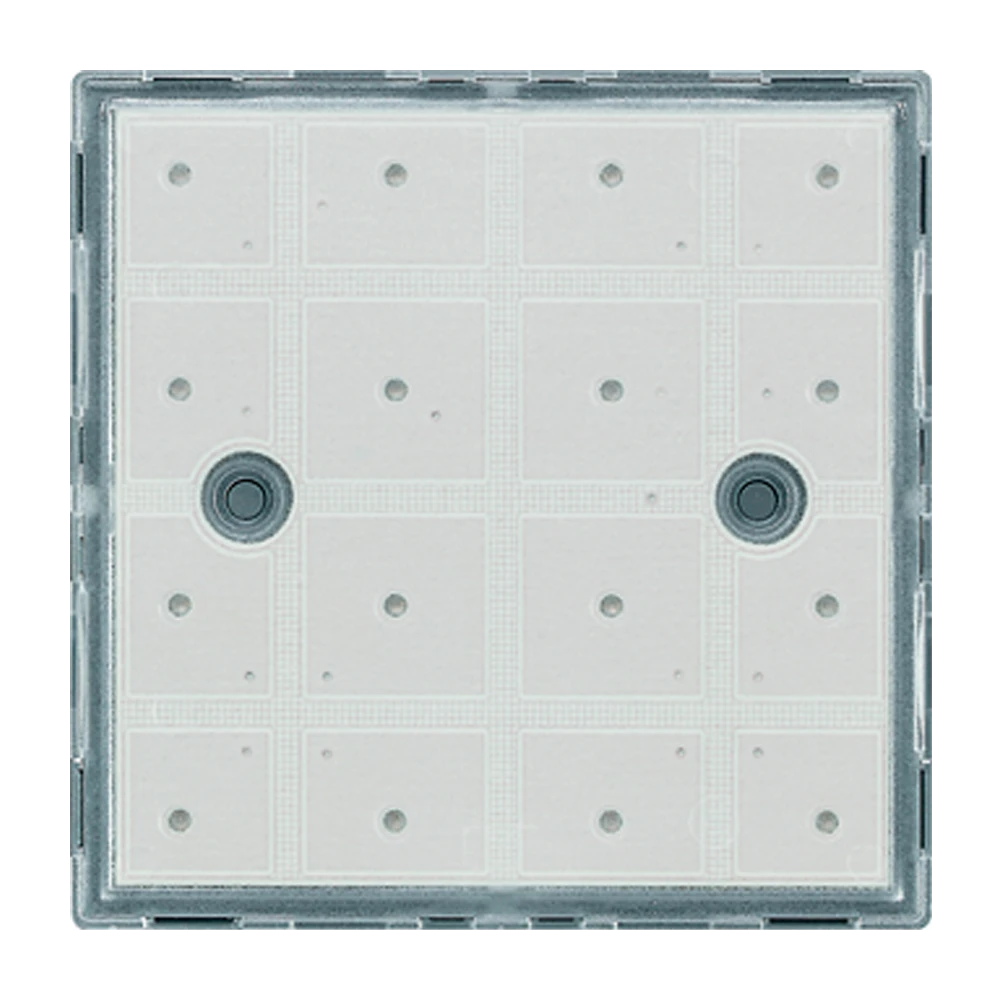

| Sensor module (ref.-no. SM 1608): | max. 4 (also when relay/dimming stations are connected in parallel) |
| Push-button module 24 V AC/DC (1-way NO contact): | depending on push-button module, consider current consumption |
| Push-button module (ref.-no. 4008 TSM): | max. 4 (also when relay/dimming stations are connected in parallel) |
| Control units | |
| Voltage: | DC 24 V SELV |
| Current carrying capacity: | Σ 80 mA |
| Switching inputs E1 ... E8 | |
| Resistance Ri: | 200 kΩ |
| Control voltage: | DC 24 V SELV |
| Activation outputs A1' ... A8' | |
| Resistance Ra: | 330 Ω |
| Control voltage: | DC 24 V SELV |
| Current carrying capacity: | 10 mA |
| Connection, mains and load outputs | |
| Connection mode: | screw terminals |
| single wire: | 1 x 1,5 ... 4 mm² |
| stranded without ferrule: | 1 x 0,75 ... 4 mm² |
| stranded with ferrule: | 1 x 0,5 ... 2,5 mm² |
| Connection of switching inputs, activation outputs and control units | |
| Connection mode: | screw terminals |
| single wire: | 1,5 mm² |
| stranded without ferrule: | 1 mm² |
| stranded with ferrule: | 0,75 mm² |
| Load outputs A1 ... A8 | |
| Contact type: | floating 1-way NO contact (µ contact) |
| Breaking capacity per load output: | AC 250 V ~ / 16 AX |
| Switching current, load outputs: | Σ 80 A |
| Switching current neighbouring load outputs: | Σ 20 A |
| Loads per output | |
| Ohmic load: | 3000 W |
| Capacitive load: | 16 A / max. 140 µF |
| Blind / Fan motors: | 1380 VA |
| Switch-on current: | max. 800 A (200 µs) max. 165 A (20 ms) |
| Lamp loads | |
| Incandescent lamps: | 3000 W |
| HV halogen lamps: | 2500 W |
| LV halogen lamps with | |
| electronic transformers: | 1500 W |
| inductive transformers: | 1200 VA |
| Fluorescent lamps | |
| non-compensated: | 1000 W |
| parallel compensated: | 1160 W / 140 µF |
| lead-lag circuit: | 2300 W / 140 µF |
| Electronic ballast: | depending on type |
| Minimum load: | AC 12 V, 100 mA |
| Ambient temperature: | −5 ... +45 °C |
| Storage temperature: | −25 ... +70 °C |
| Mounting width: | 144 mm (8 rail units) |
| Change-over time for direction change: | 1 s |
| Switch-on time, blinds operation: | 2 min |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.426 KG |
| Length | 142 MM |
| Height | 72 MM |
| Width | 92 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.568 KG |
| Length | 180 MM |
| Height | 92 MM |
| Width | 118 MM |
