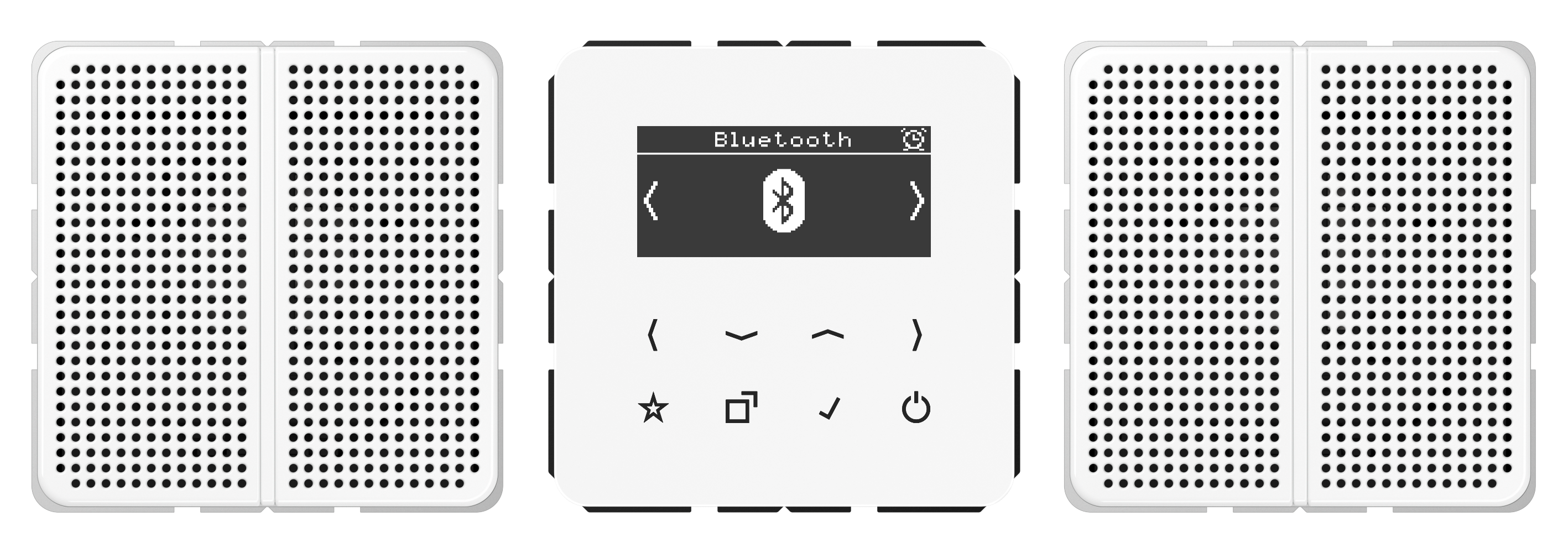

Smart Radio DAB+ Bluetooth®, stereo set, CD range, white
DAB CD2 BT WW
including power supply
with two loudspeakers
Intended use
Product characteristics
Satellite function
The radio is equipped with a satellite input to connect an external switch.
with white display
Spare part:
Spare part:
power supply ref.-no.: NT-AUDIO
display ref.-no.: DAB CD BT-DISP WW, DAB CD BT-DISP SW
with two loudspeakers
Intended use
- DAB reception in the frequency range 174 MHz to 240 MHz (VHF band III and channel 13)
- FM reception in the frequency range 87.5 MHz to 108 MHz (VHF band II)
- Playback and control of music on mobile devices via Bluetooth®
- Mounting on wall box with dimensions according to DIN 49073
- Depth of flush box (inner dimension): min. 40 mm
Product characteristics
- Digital radio with display and sensor buttons
- Real glass front
- Stereo reception
- Connection terminals for two loudspeakers
- Stereo/mono switch-over
- Simple operation
- Integrated antenna for DAB+ and FM
- High reception quality
- Automatic station scanning
- Storage of 8 favourites DAB+ and 8 favourites FM (will be retained after power failure)
- Storage of 8 Bluetooth® audio sources
- Bluetooth® device name can be changed
- Switch-on with last station
- Switch-on with last volume
- Switch-on with last operating mode (DAB+, FM or Bluetooth®)
- Display of station information, time and current settings
- Current time via RDS and DAB+
- Brightness level of display can be adjusted
- Night mode
- Alarm function
- Sleep mode
- Switching on/off via extension unit
- Line-out output (AUX) to connect external amplifiers
- Optional external cable antenna ref.-no.: RAD-ANT
Satellite function
The radio is equipped with a satellite input to connect an external switch.
with white display
Spare part:
Spare part:
power supply ref.-no.: NT-AUDIO
display ref.-no.: DAB CD BT-DISP WW, DAB CD BT-DISP SW
Read less...
Read more...
Information
| Article number: | DAB CD2 BT WW |
|---|---|
| EAN/GTIN: | 4011377172715 |
| Colour: | loudspeaker white |
| Colour: | white |
| Range: | CD range |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Connection | screw terminals |
| Terminals for: | 1 x 2.5 mm² or 1 x 1.5 mm² |
| Power consumption stand-by: | < 1 W |
| Power consumption during operation: | < 4 W |
| Temperature range: | 0 ... +50 °C |
| Atmospheric humidity: | 15 ... 90 % (no condensation) |
| DAB frequency range: | 174 ... 240 MHz |
| FM frequency range: | 87,5 ... 108 MHz |
| Bluetooth®: | A2DP, AVRCP |
| Radio frequency: | 2,402 ... 2,480 GHz |
| Transmitting power: | < 4 dBm |
| Separate loudspeaker connection cable: | twin loudspeaker cable H03VH-H, 2 x 0.75 mm alternative: J-Y(St)Y 2 x 2 x 0.6 mm |
| Length of connected cable: | max. 5 m |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Release | |
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.434 KG |
| Length | 236 MM |
| Height | 92 MM |
| Width | 96 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.434 KG |
| Length | 236 MM |
| Height | 92 MM |
| Width | 96 MM |
