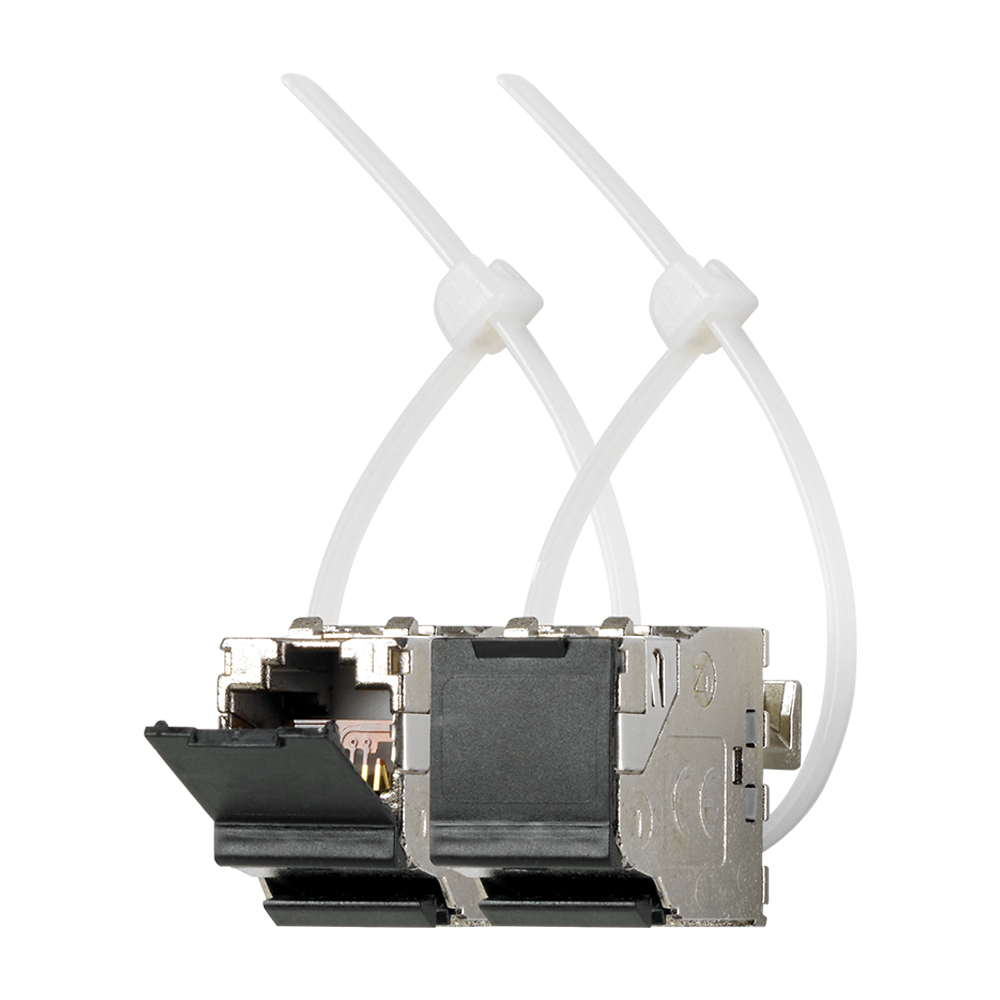

Universal modular jack socket cat. 6A iso, type A

UMA-CAT6A-25

RJ 45, shielded
with dust protection cover
for centre plates ref.-no.: ..569-1 WE .., ..569-2 WE .., .. 1969-1 .. WE .., .. 1969-2 .. WE ..
suitable for standard keystone openings
suitable for 25 Gbit Ethernet
scope of delivery: 2 pieces

suitable for PoE+ acc. to IEEE 802.3at
> 750 insertion/removal cycles

Unmistakable terminals with colour code and numeration (A and B code of the same value)
For data cables with a diameter of 6 – 10 mm
For wires of AWG 22 to AWG 24 (rigid)

Can be combined with 2-gang supporting frame ref.-no.: UMA-MA2-KS2 and centre plates .. 569 T .., .. 969 T .. of all design ranges.

Read less... Read more...

Information

Article number:	UMA-CAT6A-25
EAN/GTIN:	4011377207813

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Naudojimosi instrukcija	Select language Select language DE EN
Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.054 KG
Length	53 MM
Height	30 MM
Width	70 MM
Carton
Packaging unit	6 pc.
Weight	0.321 KG
Length	160 MM
Height	60 MM
Width	75 MM
