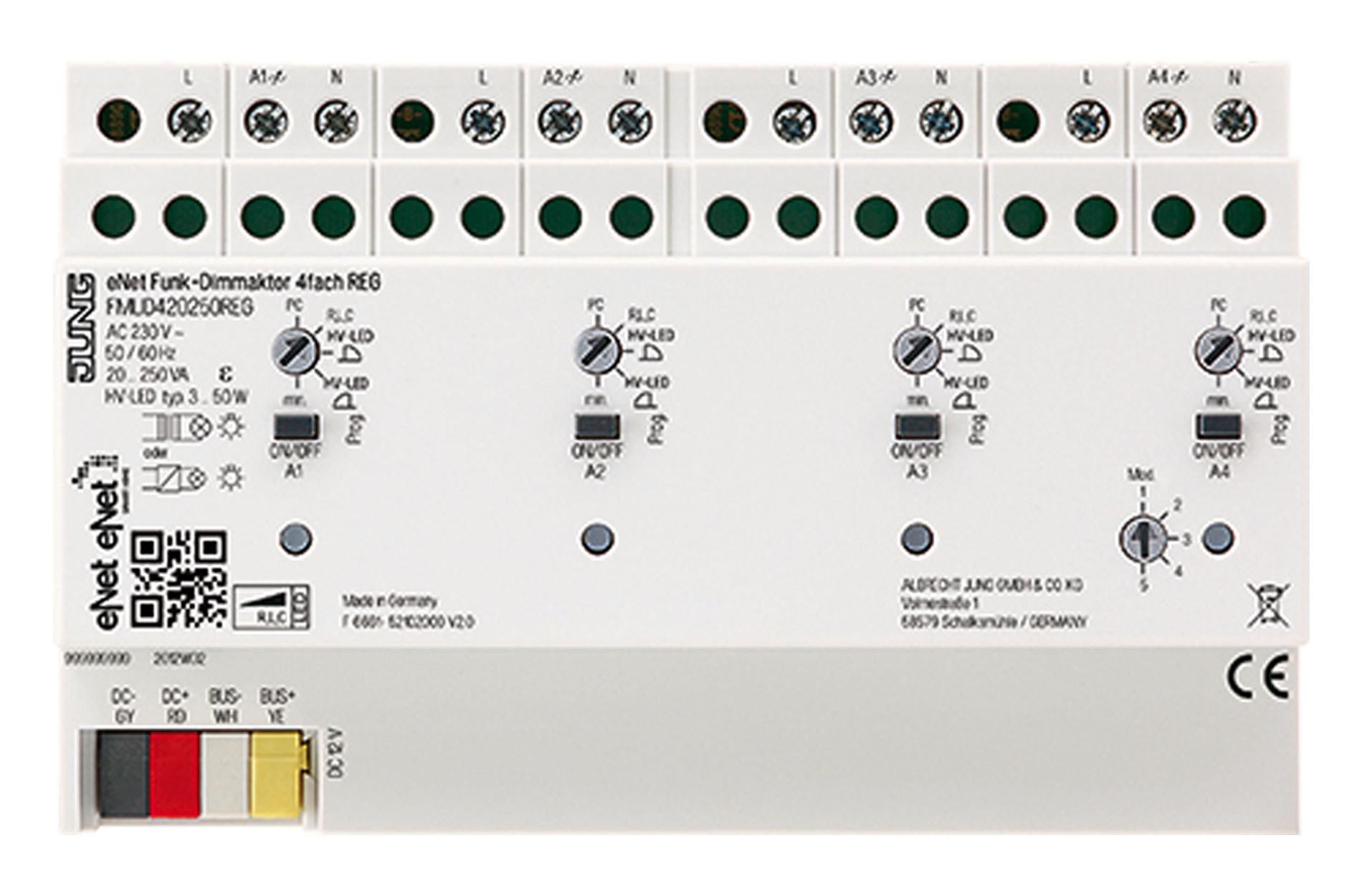

eNet radio dimming actuator 4-gang, for rail mounting, rail mounting device, 8 rail units

FM UD 420250 REG

rail mounting device, 8 rail units

Numatytoji paskirtis

Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
Operation with power supply (ref.-no. NT 1220 REG VDC) and eNet radio receiver (ref.-no. FM FK 32 REG) or eNet server
Operation with suitable eNet radio transmitters
Mounting on DIN rail according to EN 60715 in distribution box

Produkto savybės

Switch-on via bulb-preserving soft start
Switch-on brightness for each output can be saved permanently
Minimum brightness for each output can be saved permanently
Scene operation possible
Status indication of the outputs via LED
Status feedback to radio transmitter
Outputs switchable with Prog button
Increase in output power possible through parallel switching of multiple outputs
Apsauga nuo trumpojo jungimo su privalomu išjungimu ne vėliau kaip po 7 sekundžių
Apsauga nuo perkaitimo
Automatic or manual setting of the dimming principle suitable for the load
Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)
Optional accessory: compensation module LED, ref.-no.: KM LED 230 U

Can be set with eNet server:

Maximum brightness
Dimming speed
Switch-on delay / switch-off delay
Dim up/dim down ramp
Switch-off warning
Operating locks
Continuous on, Continuous off
Hotel function
Run-on time

Supplementary functions with eNet server:

Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of the device software
Reading of error memory

Read less... Read more...

Information

Article number:	FM UD 420250 REG
EAN/GTIN:	4011377087545

Read less... Read more...

Technical data

Nominalioji įtampa:	AC 230 V ~
Tinklo dažnis:	50/60 Hz
Maitinimo nutrūkimas:	max. 8 W
Budėjimo režimo galia:	max. 1,2 W
Aplinkos temperatūra:	−5 ... +45 °C
Connected load per output at 45 °C
Power specifications including transformer power dissipation.
Operate inductive transformers with at least 85 % nominal load.
For ohmic-inductive mixed load, maximum 50 % proportion of ohmic load. Otherwise incorrect calibration of the dimmer may result.
Max. load for outputs connected in parallel is limited to 95 %.
The minimum load of parallel switching of load outputs is 250 VA.
Kaitrinės lempos:	20 ... 250 W
Halogeninės lempos:	20 ... 250 W
Elektroniniai transformatoriai:	20 ... 250 W
Electronic transformers with LV LED:	typical 20 ... 100 W
Indukciniai transformatoriai:	20 ... 250 VA
Inductive transformers with LV LED:	typical 20 ... 100 VA
Reguliuojamo ryškumo aukštos įtampos LED lempos:	typical 3 ... 50 W
Dimmable compact fluorescent lamps:	typical 3 ... 50 W
With setting "LED trailing edge phase control" the max. connection power for HV LED lamps and electronic transformers with LV LED doubles.
Ohmic-inductive:	20 ... 250 VA
Ohmic-capacitive:	20 ... 250 VA
Capacitive-inductive:	not permitted
Amplifiers:	see instructions for amplifier
Prijungimas, išvadai
Connection mode:	screw terminals
vieno laido:	1 x 1,5 ... 4 mm²
Daugiagyslis laidas be antgalio:	1 x 0,75 ... 4 mm²
Daugiagyslis laidas su antgaliu:	1 x 0,5 ... 2,5 mm²
Contact type:	ε
Length of output cable per channel:	max. 100 m
Mounting width:	144 mm (8 rail units)
Bus line
Nominalioji įtampa:	DC 12 V SELV
Current consumption:	10 mA
Connection bus:	terminal
Cable length:	max. 3 m

Read less... Read more...
