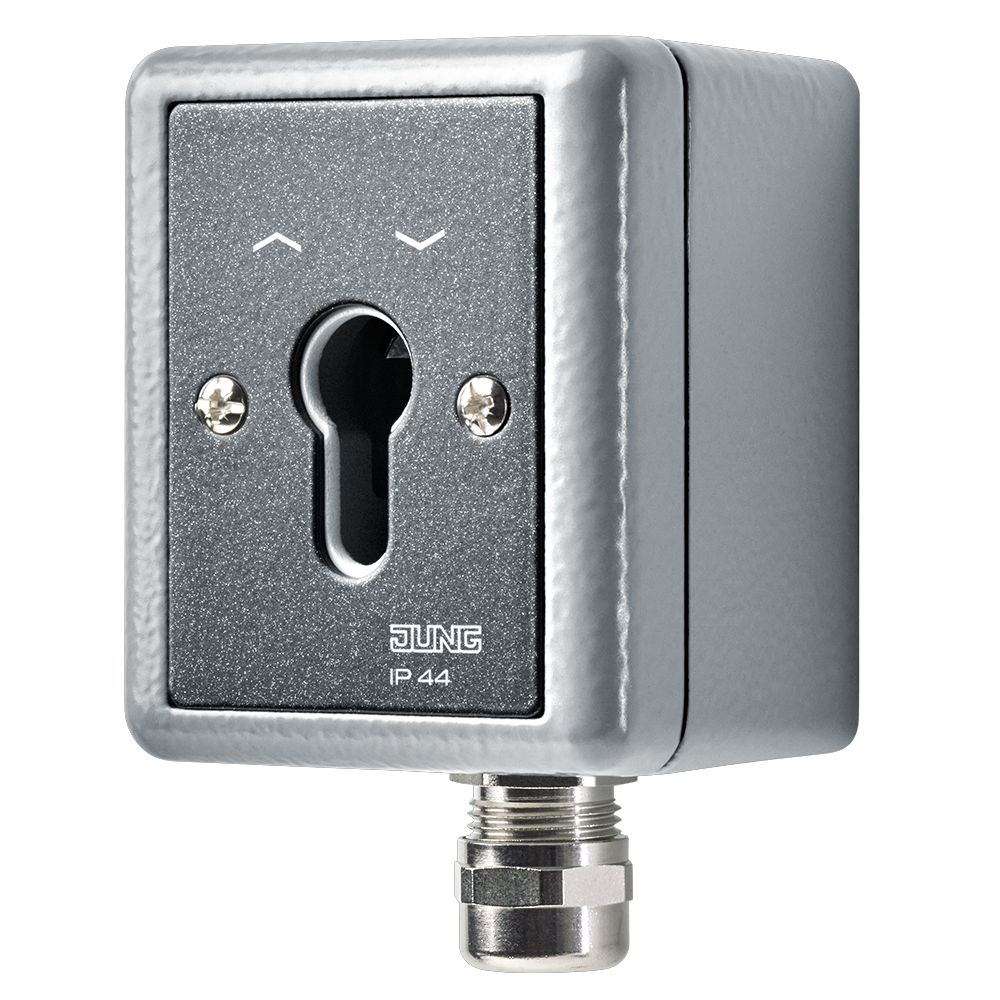

Blind key switch, Push-button, 2-pole (2 motors), AX 250 V ~, IP 44, WG 800
834.28 G
10 A 250 V~
delivery without locking plate
for profile half cylinder with total length of approx. 40 mm, e.g. ref.-no.: 28, 28 G1
with screw terminals for rigid and flexible wires up to 2.5 mm2
with 1 inlet M 20 x 1.5 at the bottom, with PE terminal
aluminium housing 90 x 75 x 65 mm
colour of housing: silver-grey (similar RAL 7001), cover: metallic anthracite
When using locking cylinder from other manufacturer, please consider, that the cylinder has key access on only one side. (Otherwise water can get through the cylinder into the switch housing. IP44 is thus not guaranteed.)
A pre-travel prevents a quick change of direction.
Profile half cylinder (acc. to DIN 18252) for key switches
with 3 keys
different locks: ref.-no. 28
equal locks: ref.-no. 28 G1
Spare key
for 28 G1: ref.-no. 28 G1 SL
delivery without locking plate
for profile half cylinder with total length of approx. 40 mm, e.g. ref.-no.: 28, 28 G1
with screw terminals for rigid and flexible wires up to 2.5 mm2
with 1 inlet M 20 x 1.5 at the bottom, with PE terminal
aluminium housing 90 x 75 x 65 mm
colour of housing: silver-grey (similar RAL 7001), cover: metallic anthracite
When using locking cylinder from other manufacturer, please consider, that the cylinder has key access on only one side. (Otherwise water can get through the cylinder into the switch housing. IP44 is thus not guaranteed.)
A pre-travel prevents a quick change of direction.
Profile half cylinder (acc. to DIN 18252) for key switches
with 3 keys
different locks: ref.-no. 28
equal locks: ref.-no. 28 G1
Spare key
for 28 G1: ref.-no. 28 G1 SL
Read less...
Read more...
Degree of protection IP44 is ensured.
Information
| Article number: | 834.28 G |
|---|---|
| EAN/GTIN: | 4011377880009 |
| Version: | Push-button, 2-pole (2 motors) |
Read less...
Read more...
Lejupielādes
| Operating instructions | |
|---|---|
| Tehniskā specifikācija | |
| ES Atbilstības deklarācija | |
| Artikeldatenblatt | |
| Datenblatt |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.506 KG |
| Length | 120 MM |
| Height | 95 MM |
| Width | 93 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.506 KG |
| Length | 120 MM |
| Height | 95 MM |
| Width | 93 MM |
| Outer carton | |
| Packaging unit | 10 pc. |
| Weight | 5.26 KG |
| Length | 462 MM |
| Height | 115 MM |
| Width | 185 MM |
| Palette | |
| Packaging unit | 640 pc. |
| Weight | 345.84 KG |
| Length | 1200 MM |
| Height | 1476 MM |
| Width | 800 MM |
