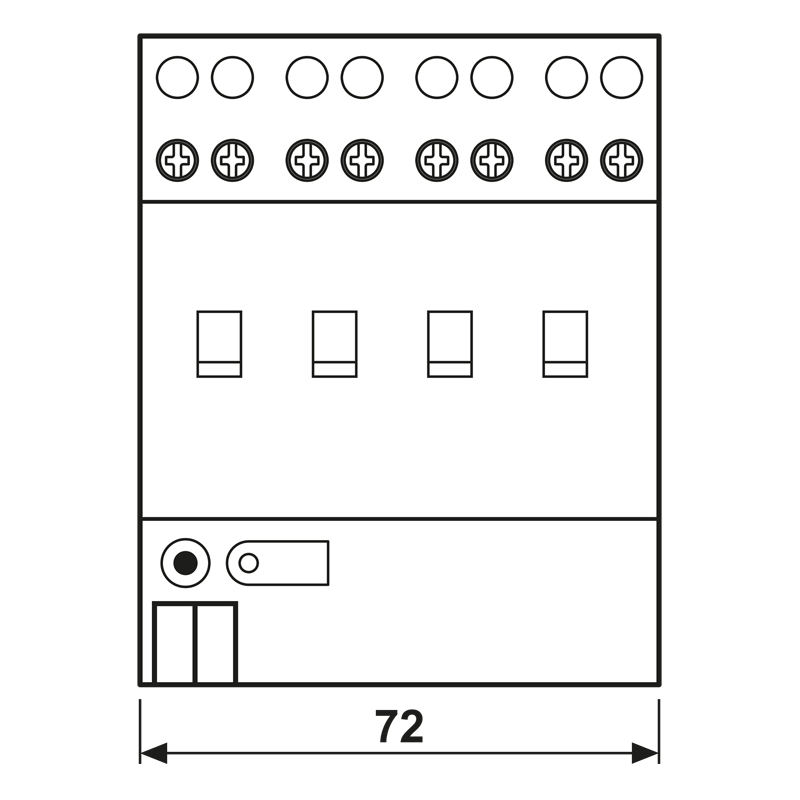

KNX switch actuator, 4-gang, rail mounting device, 4 rail units
2304.16 REGHM
rail mounting device, 4 rail units
4 1-way NO contacts with manual mechanical operation and status indicator
ETS product family: Output
Product type: Binary output
Paredzētais pielietojums
Produkta īpašības
4 1-way NO contacts with manual mechanical operation and status indicator
ETS product family: Output
Product type: Binary output
Paredzētais pielietojums
- Switching of 110 ... 230 V AC or 24 V AC/DC electrical loads with floating contacts
- Mounting on DIN rail according to EN 60715 in distribution box
Produkta īpašības
- Manual switching of the relays is independent of the bus
- Operation as 1-way NO or 1-way NC contacts
- Logic operation and forced guidance
- Switching feedback (bus operation only)
- Switch position indication
- Central switching function with collective feedback
- Disabling function for each channel
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch-off warning
- Integration into light scenes
- Operating hours counter, configurable via bus
- Input monitoring for cyclical updating with safety circuit
- No additional power supply necessary
Read less...
Read more...
Information
| Article number: | 2304.16 REGHM |
|---|---|
| EAN/GTIN: | 4011377020917 |
Read less...
Read more...
Technical data
| KNX medium: | TP 256 |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Connection, KNX: | connection terminal |
| Power consumption KNX: | typical 150 mW |
| Enerģijas zudums: | max. 4 W |
| Apkārtējās vides temperatūra: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| Mounting width: | 72 mm (4 rail units) |
| Pieslēgums, izejas | |
| Connection mode: | screw terminals |
| vienā vadā: | 1 x 0,5 ... 4 mm² |
| Daudzdzīslu vadītājs bez gala uzmavas: | 1 x 0,5 ... 4 mm² |
| Daudzdzīslu vadītājs ar gala uzmavu: | 1 x 0,5 ... 2,5 mm² |
| Switching outputs | |
| Contact type: | floating relay contacts (μ contact) |
| Switching voltage AC: | AC 250 / 400 V |
| Switching current 230 V AC1: | 16 A |
| Switching current 230 V AC3: | 10 A |
| Switching current 400 V AC1: | 10 A |
| Switching current 400 V AC3: | 6 A |
| Fluorescent lamps: | 10 AX |
| Ohmic load: | 3680 W |
| Capacitive load: | 10 A / 140 µF |
| Switching voltage DC: | DC 12 ... 24 V |
| Switching current DC: | 16 A |
| Min. switching current: | 100 mA |
| Switch-on current 150 µs: | 400 A |
| Switch-on current 600 µs: | 200 A |
| Lamp loads | |
| Kvēlspuldzes: | 2500 W |
| Augstsprieguma halogēnās spuldzes: | 2500 W |
| LV halogen lamps with | |
| inductive transformers: | 1200 VA |
| electronic transformers: | 1500 W |
| Fluorescent lamps T5/T8 | |
| non-compensated: | 2500 W |
| parallel compensated: | 1300 W / 140 µF |
| lead-lag circuit: | 2300 W / 140 µF |
| Compact fluorescent lamps | |
| non-compensated: | 2500 W |
| parallel compensated: | 1300 W / 140 µF |
| Mercury vapour lamps | |
| non-compensated: | 2000 W |
| parallel compensated: | 2000 W / 140 µF |
| Approvals: | VDE |
Read less...
Read more...
Lejupielādes
| Operating instructions | |
|---|---|
| Datenbank ETS2 + ETS3 | |
| Product documentation | |
| Datenbank ETS4 + ETS5 | |
| ETS3 ab Version d + ETS4 + ETS5 | |
| CAD (dwg) | |
| CAD (stp) | |
| EPLAN Makro | |
| Tehniskā specifikācija | |
| ES Atbilstības deklarācija | |
| Artikeldatenblatt |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.271 KG |
| Length | 96 MM |
| Height | 77 MM |
| Width | 95 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.271 KG |
| Length | 96 MM |
| Height | 77 MM |
| Width | 95 MM |
