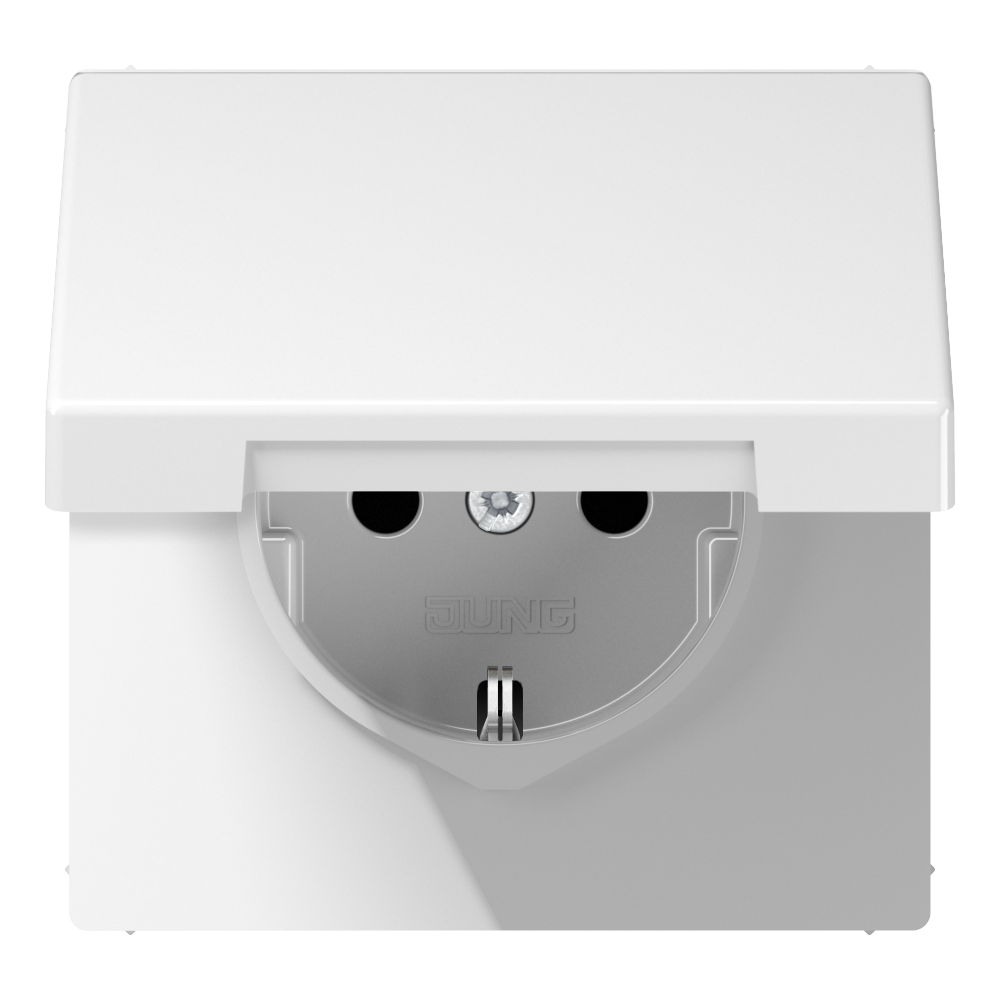

SCHUKO® socket, 16 A 250 V ~, Safety Plus, hinged lid, duroplastic antimicrobial, LS range, white

SPLS 1520 KIKL WW

SCHUKO® socket, Safety Plus, duroplastic antimicrobial, white

SPLS 1520 KIKL WW

with hinged lid (with spring)
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy – SILVERPLUS^®

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Information

Article number:	SPLS 1520 KIKL WW
EAN/GTIN:	4011377215481
Colour:	white
Material:	duroplastic antimicrobial
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
