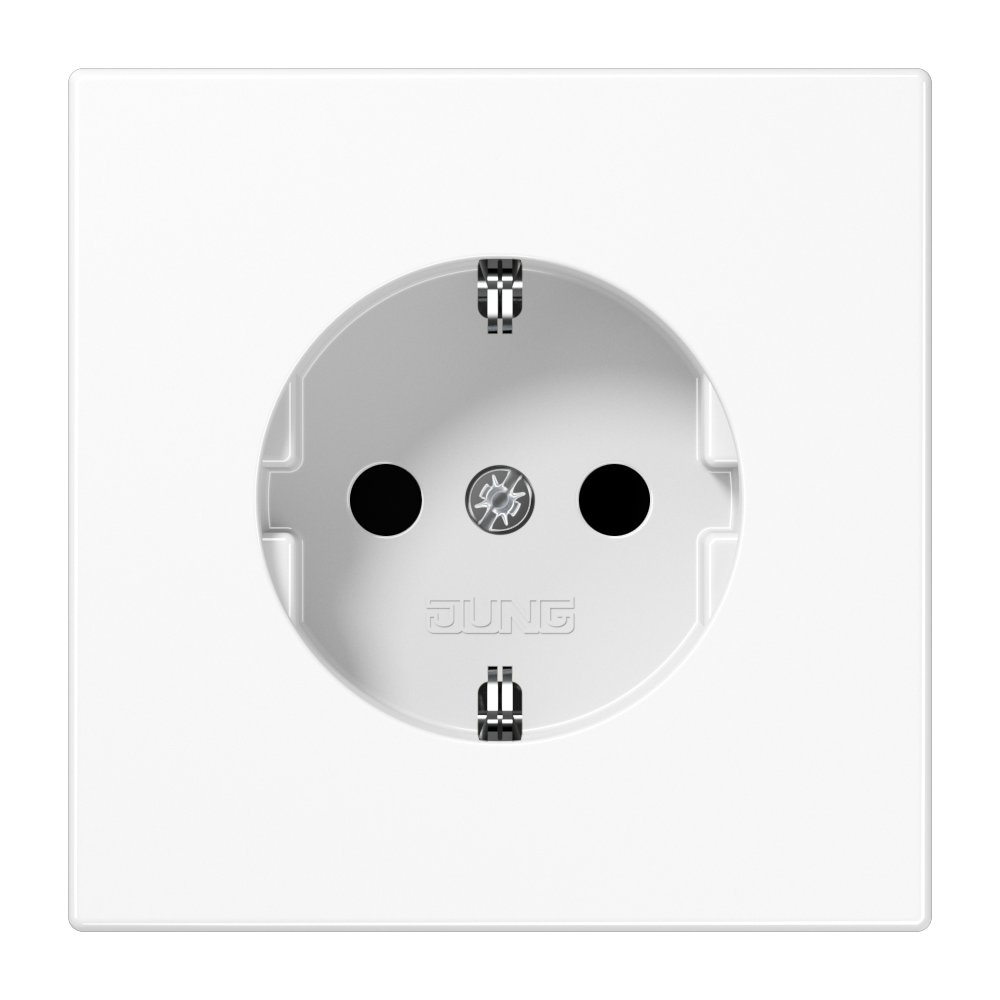

SCHUKO® socket, 16 A 250 V ~, screw terminals, Safety Plus, duroplastic antimicrobial, LS range, white

SPLS 1521 KI WW

SCHUKO® socket, screw terminals, Safety Plus, duroplastic antimicrobial, white

SPLS 1521 KI WW

with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1521 N..
Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy – SILVERPLUS^®

Read less... Read more...

Information

Article number:	SPLS 1521 KI WW
EAN/GTIN:	4011377215467
Colour:	white
Material:	duroplastic antimicrobial
Connection:	Schraubklemmen VDE, 2,5 mm2
Width:	70 mm
Height:	70 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.095 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.05 KG
Length	290 MM
Height	80 MM
Width	180 MM

Read less... Read more...

Frames

SPLS 981 WW

Frame 1-gang, white
