Centre plate (snap-on fixing) for modular jack sockets, 2-gang, EMT, AMP, MTRJ, thermoplastic, LS range, ivory

LS 1969-25 WE

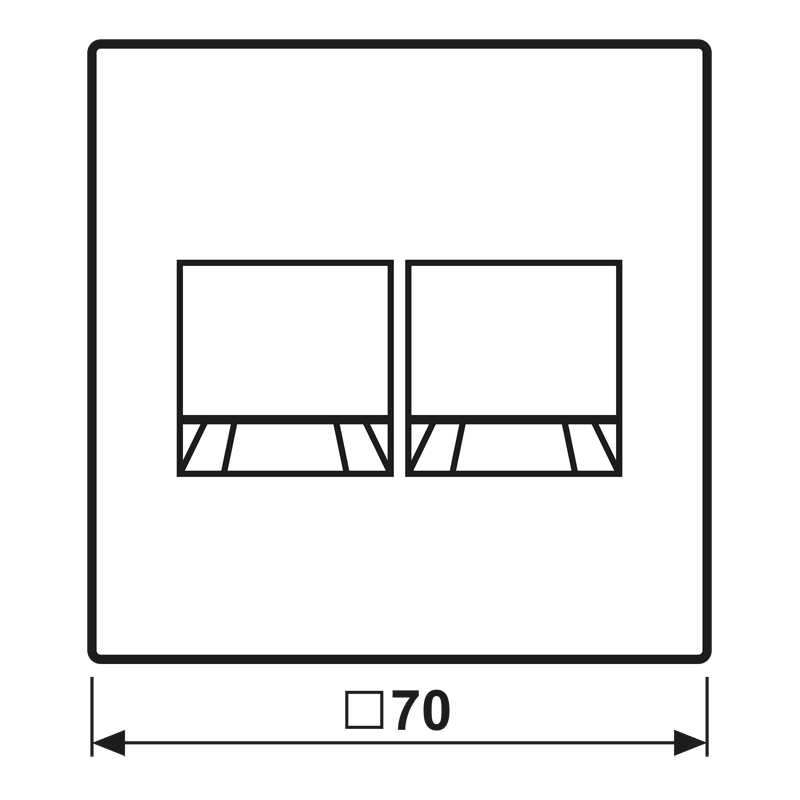

Centre plate (snap-on fixing) for modular jack sockets, 2-gang, EMT, AMP, MTRJ, ivory
LS 1969-25 WE
arrow-left-slim
arrow-right-slim
  • Centre plate (snap-on fixing) for modular jack sockets, 2-gang, EMT, AMP, MTRJ, ivory
(with supporting frame, screw fixing only)
shutter with spring
inner dimensions of keystone mount 14,8 x 20,7 mm
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0188650-5
EMT-jack, Cat. 5e, 90° ref.-no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0338038-1
EMT-jack, Cat. 5e, 90° ref.-no. 0-0338038-2
Toolless Jack, Cat. 3 unshielded: ref.-no. 0-1116603-x
Toolless Jack, Cat. 5e unshielded: ref.-no. 0-1116604-x,
Toolless Jack, Cat. 5e shielded: ref.-no. 0-1339015-1
Toolless Jack, Cat. 6 unshielded: ref.-no. 0-1116605-x,
Toolless Jack, Cat. 6 shielded: ref.-no. 0-1339016-1
MTRJ-LWL jack: ref.-no. 1278414-1
for 2 sockets

Thermoplastic (breakproof) high-gloss
Read less... Read more...
Individual colour printing possible
Individual laser engraving possible
More articles

Information

Article number: LS 1969-25 WE
EAN/GTIN: 4011377178380
Colour: ivory
Material: thermoplastic
Width: 70 mm
Height: 70 mm
Read less... Read more...
Текст тендерної пропозиції
Інформація про товар
Read less... Read more...

Logistik

Single item
Packaging unit 1 pc.
Gewicht 0.057 KG
Length 70 MM
Höhe 22 MM
Breite 70 MM
Karton
Packaging unit 10 pc.
Gewicht 0.57 KG
Length 212 MM
Höhe 94 MM
Breite 96 MM
