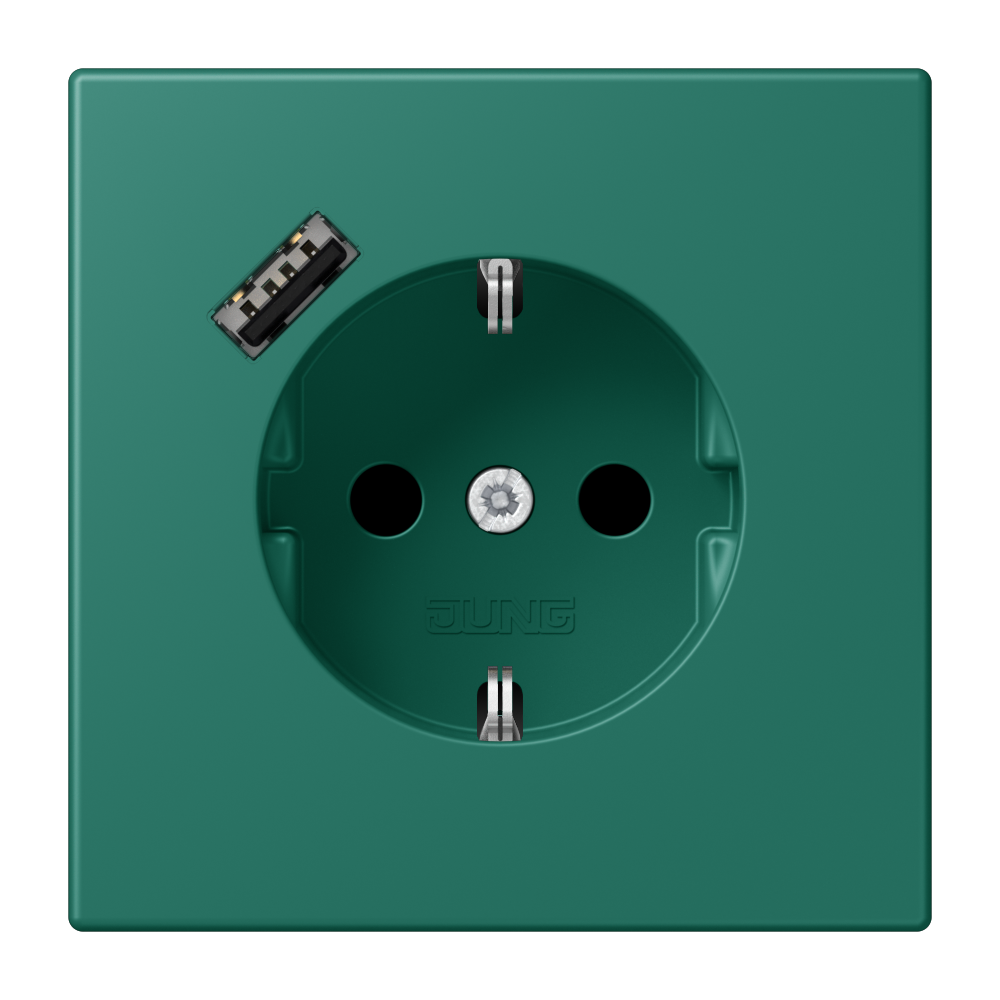

SCHUKO® socket, 16 A 250 V ~, with USB charger (JUNG Quick Charge®), 1 x type A, Safety Plus, LS range, vert anglais (32040)

LC 1520-18 A 216

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, thermoplastic lacquered, vert anglais

LC 1520-18 A 216

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

matt lacquered

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Read less... Read more...

discontinued

Auslaufdatum 01.06.2026

Individual colour printing possible

Article number:	LC 1520-18 A 216
EAN/GTIN:	4011377285934
Colour:	vert anglais
Material:	thermoplastic lacquered
Type:	1 x type A
Width:	70 mm
Height:	70 mm
Auslaufdatum:	01.06.2026

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Stand-by power:	≤ 60 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
lsingle wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...
