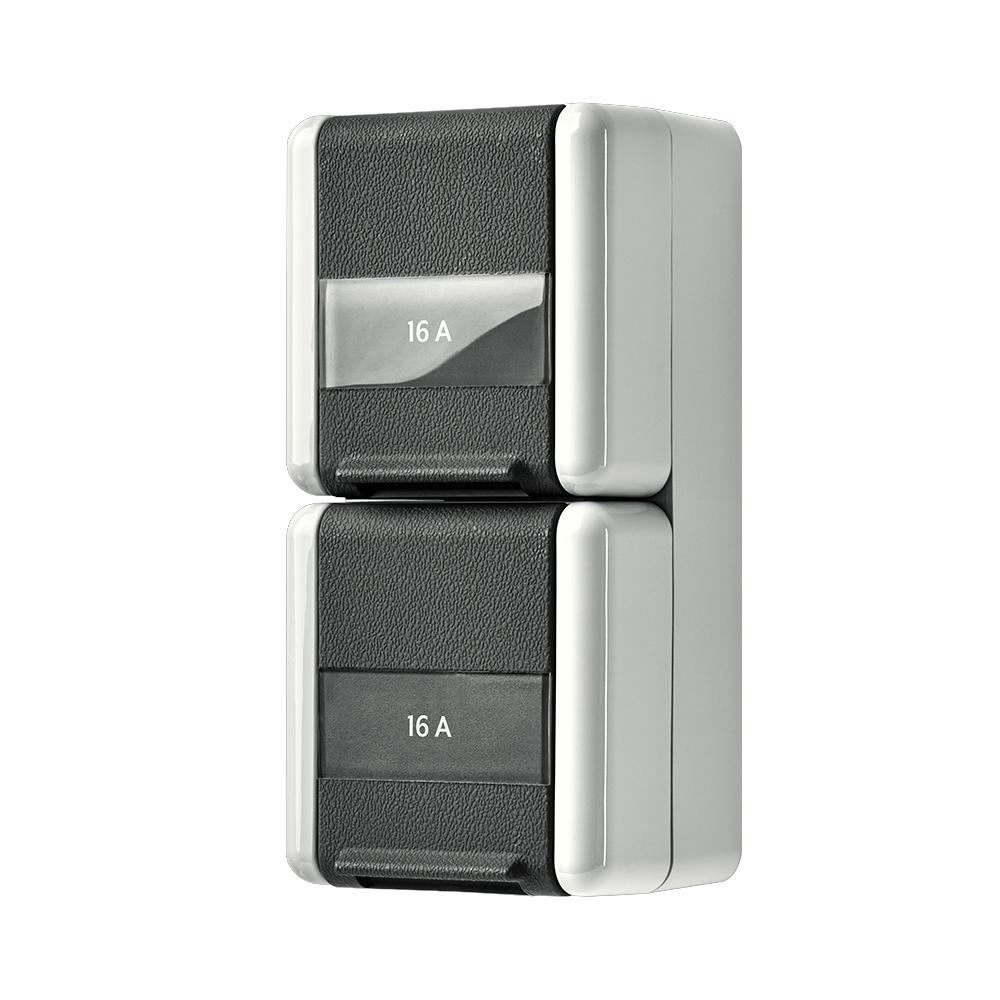

2-gang SCHUKO® socket, wired, 16 A 250 V ~, Safety Plus, with inscription field, vertical, IP 44, WG 800

822 KINAW

2-gang SCHUKO® socket, wired, Safety Plus, with inscription field

822 KINAW

wired
with two inscription fields 22 x 48 mm
with enhanced contact protection (shutter)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

for vertical installation, housing 75 x 151 x 58 mm

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Degree of protection IP44 is ensured.

Individual inscription of paper inlays for incription fields possible

Article number:	822 KINAW
EAN/GTIN:	4011377084346
Version:	2 inlets, 2 single covers with enhanced contact protection (shutter)

Read less... Read more...
