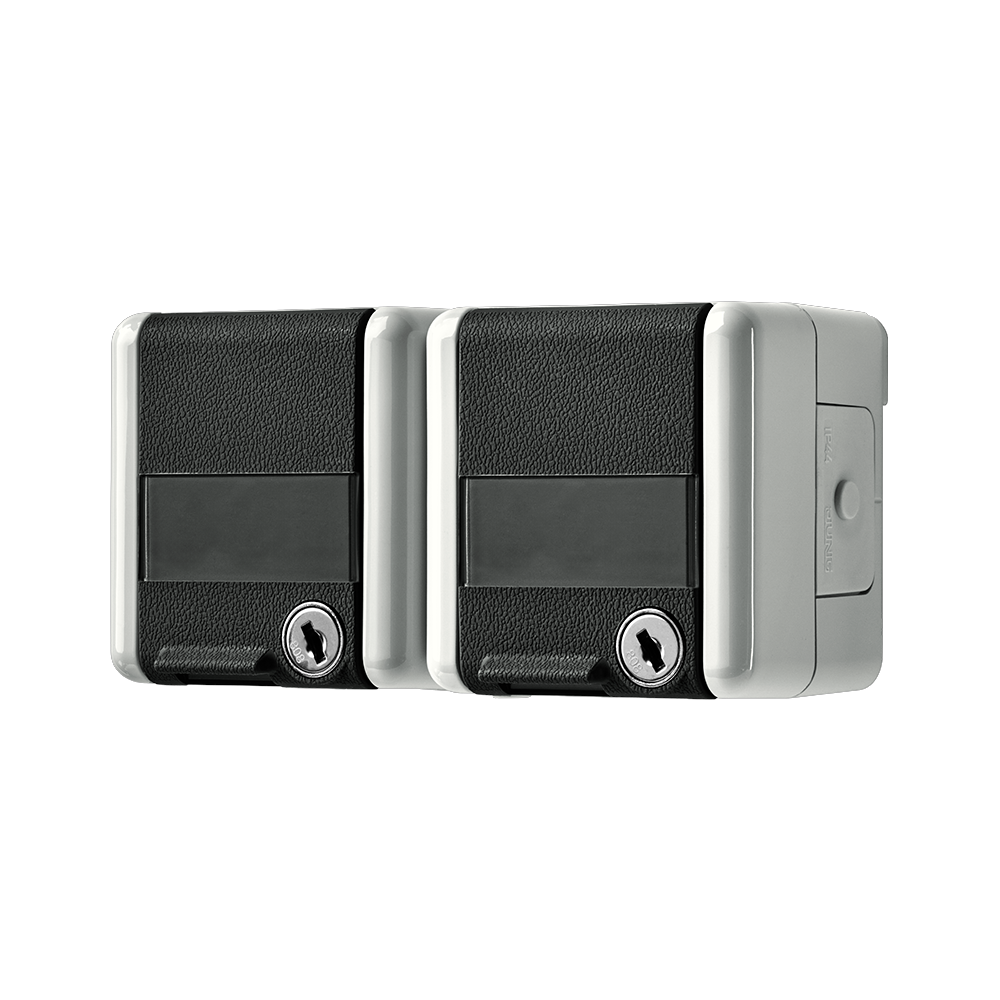

2-gang SCHUKO® socket, wired, 16 A 250 V ~, with inscription field, with safety lock, horizontal , IP 44, WG 800

8220 NAWSL

2-gang SCHUKO® socket, wired, with inscription field, with safety lock

8220 NAWSL

wired
with 2 safety locks
(equal locks) with 4 keys
with two inscription fields 22 x 48 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Spare key ref.-no.: 802 SL to 825 SL (When ordering, please indicate lock number, e.g. 813 SL)

for horizontal installation, housing 151 x 75 x 58 mm

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Degree of protection IP44 is ensured.

Individual inscription of paper inlays for incription fields possible

Article number:	8220 NAWSL
EAN/GTIN:	4011377350755
Version:	4 inlets, 2 single covers

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.29 KG
Length	151 MM
Height	60 MM
Width	75 MM
Carton
Packaging unit	5 pc.
Weight	1.45 KG
Length	315 MM
Height	80 MM
Width	163 MM
Palette
Packaging unit	720 pc.
Weight	232 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
