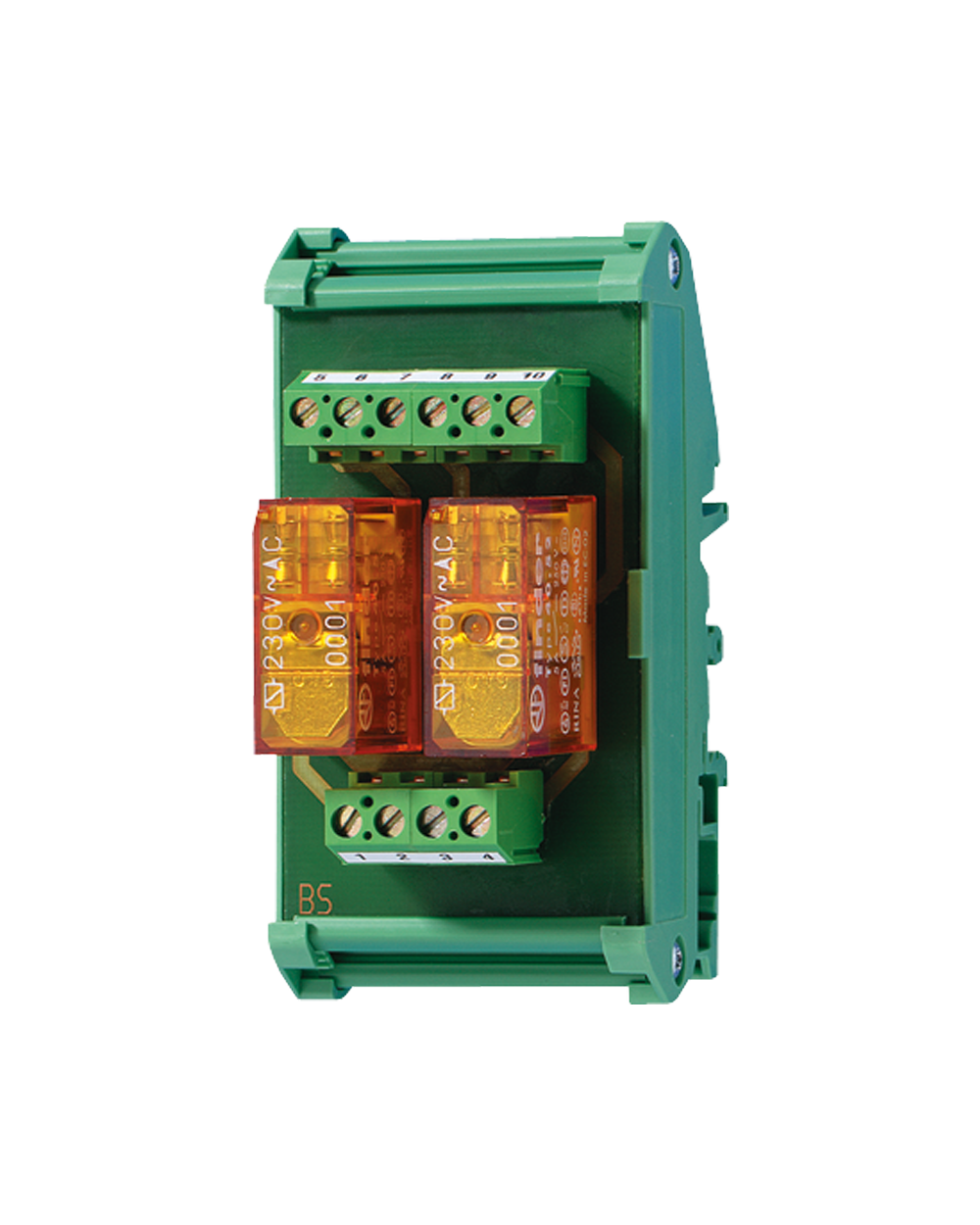

Decoupling relay, rail mounting device
TR-S REG
rail mounting device, 2.5 rail units
If more than one motor should be connected to a blinds insert or a mechanical blind switch/push-button, a decoupling relay is required for electrical isolation; one relay for two motors.
If more than one motor should be connected to a blinds insert or a mechanical blind switch/push-button, a decoupling relay is required for electrical isolation; one relay for two motors.
Read less...
Read more...
discontinued
More articles
Information
| Article number: | TR-S REG |
|---|---|
| EAN/GTIN: | 4011377125254 |
| Mains frequency: | 50 Hz |
| Date of discontinuation: | 30.09.2026 |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50 Hz |
| Control: | AC 230 V ~, 50 Hz |
| Switching capacity: | 4 A, AC 230 V ~ cos ϕ ≥ 0.8 ind. |
| Duty cycle: | 100 % |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Operating instructions | |
| Tendering text | |
| EC Declaration of Conformity | |
| Product data sheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.094 KG |
| Length | 76 MM |
| Height | 52 MM |
| Width | 44 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.118 KG |
| Length | 84 MM |
| Height | 74 MM |
| Width | 84 MM |
| Outer carton | |
| Packaging unit | 10 pc. |
| Weight | 1.308 KG |
| Length | 362 MM |
| Height | 90 MM |
| Width | 184 MM |
