including mounting plate, adhesive film and fastening screw
including transparent cover ref.-no.: LS 50 NA
for cover kit 2-gang, ref.-no.: ..502 TSA .. in the LS range
Cannot be combined with frames in FLAT DESIGN.
ETS product family: Push-button

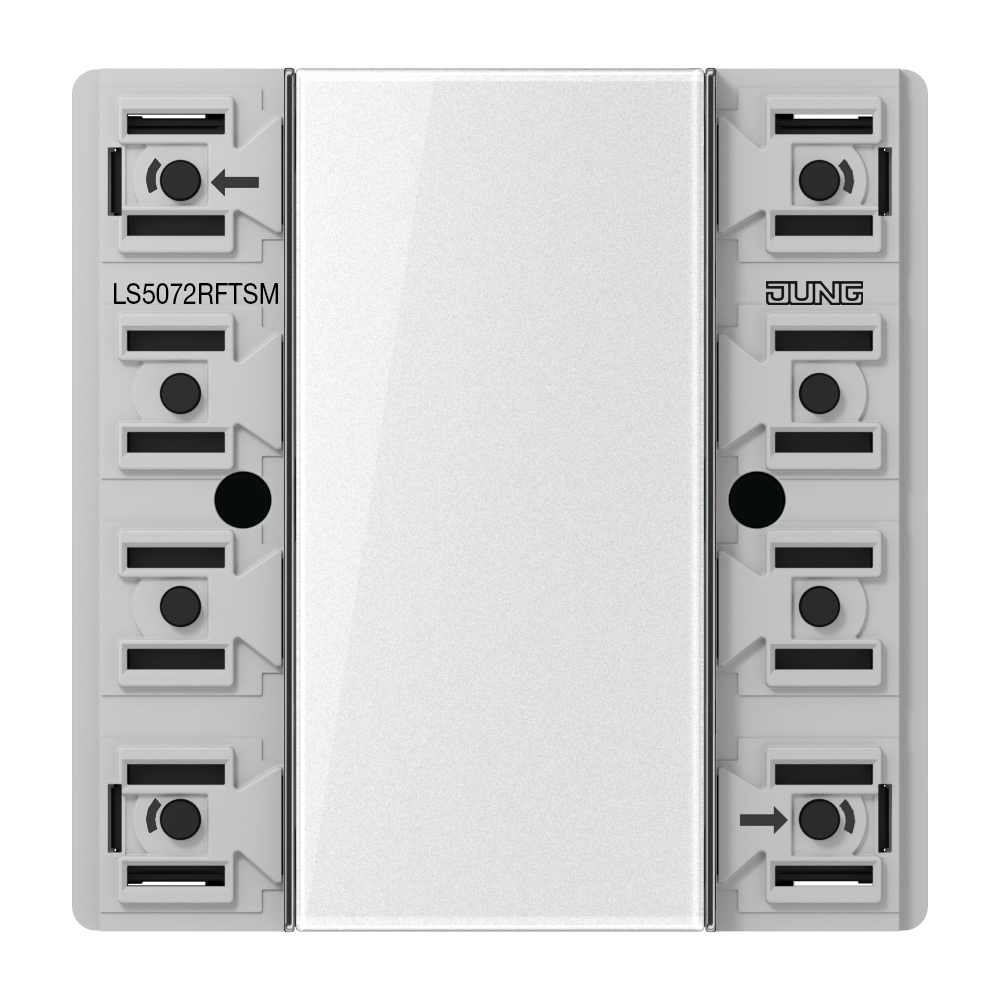

Product type: 2-gang push-button
2 green LED: actuator status
1 red LED: transmission status
Intended use- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- Button pairs for button function or rocker function
- Status indication with LED
- Integrated temperature sensor
- Battery-powered device (battery compartment accessible from front)
- Project design and commissioning with ETS5 or a more recent version
Spare part:transparent cover ref.-no.: LS 50 NA
Accessories:Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW, LS 50 NA WWM, LS 50 NA SWM, AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA C-L
Cover, suitable for backlighting ref.-no.: LS 50 NA TX SW-L
