including transparent cover ref.-no.: CD 50 NA
for cover kit 3-gang, ref.-no.: CD 503 TSA ..
ETS product family: Push-button

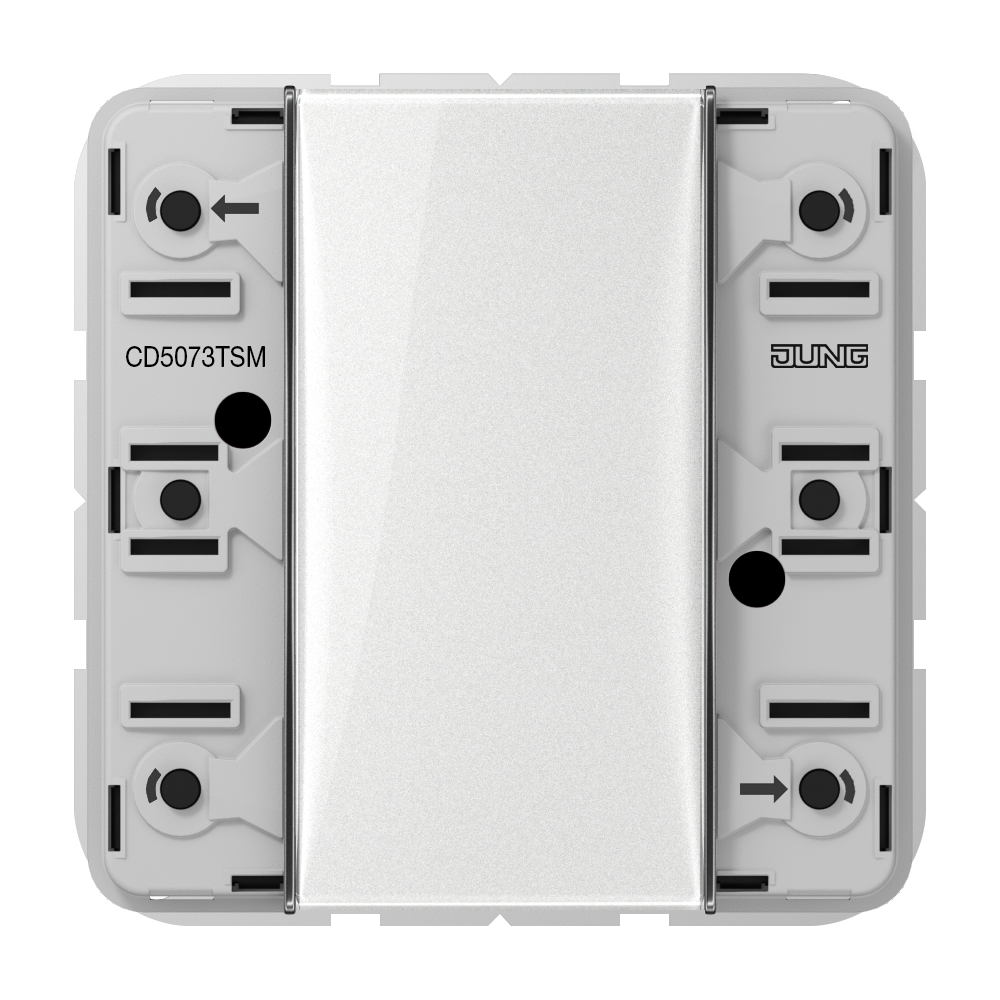

Product type: 3-gang push-button
Intended use- Operation of loads, e.g. light on/off, dimming, blinds up/down, calling up and saving light scenes, etc.
- Installation in flush box with dimensions according to DIN 49073
Product characteristics- KNX medium: TP 256
- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- To be completed with cover kit
- Inscription field
- One red status LED for a pair of buttons
- One operation LED as orientation light and to indicate the programming status – red, green or blue adjustable
- Energy saving mode
- Integrated bus coupling unit
- Including transparent cover kit for operation on construction site without design covers
Spare part:transparent cover ref.-no.: CD 50 NA
Accessories:Neutral cover ref.-no.: CD 50 NA W, CD 50 NA WW, CD 50 NA GR, CD 50 NA LG, CD 50 NA SW
Cover, suitable for backlighting ref.-no.: CD 50 NA TX SW-L
Screw assortment for sensors, ref.-no.: S-BOX TSM RT ZN
