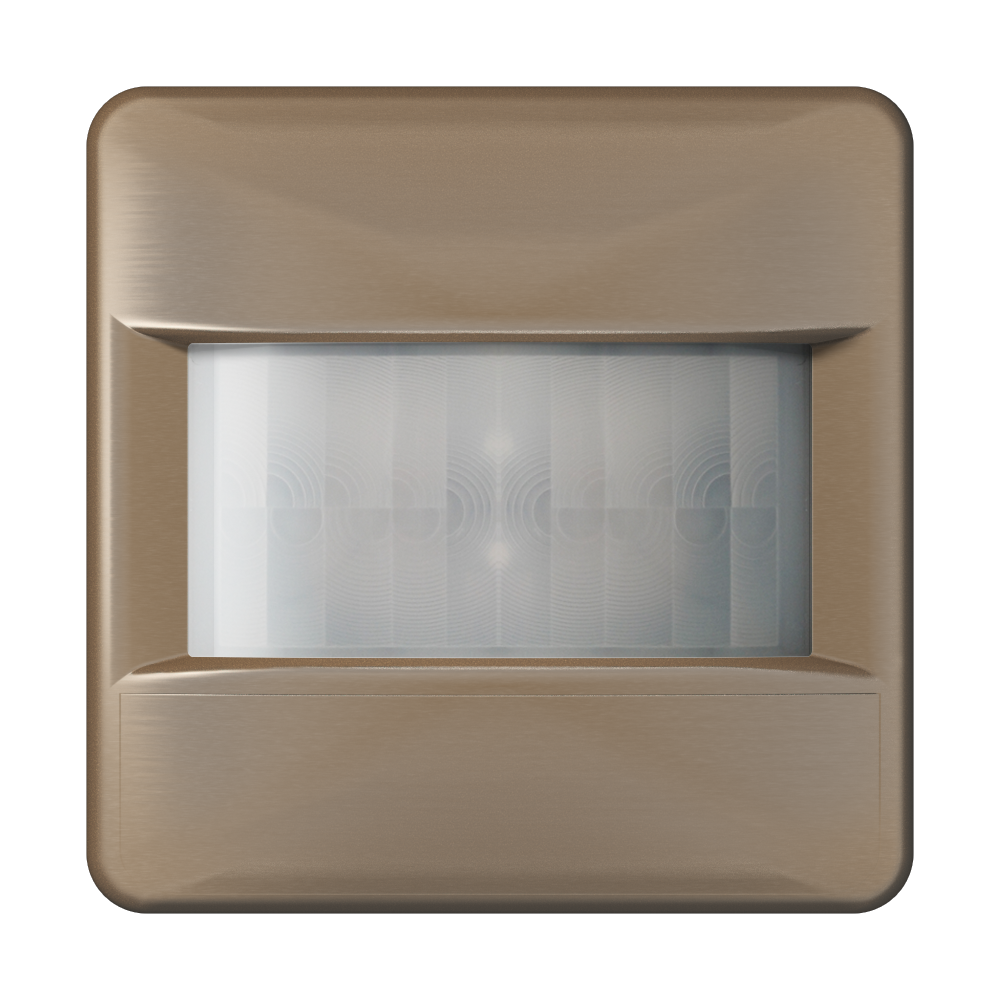

LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, thermoplastic, CD range, gold-bronze

CD 17180 WU GB

LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, gold-bronze
arrow-slider
arrow-slider
  • LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, gold-bronze
arrow-left-slim
arrow-right-slim
  • LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, gold-bronze
CD 17180 WU GB
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, gold-bronze
Sensitivity and brightness threshold adjustable
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
IP44 suitable only for interiors

Intended use
  • Automatic switching of lighting depending on the thermal movement and ambient brightness
  • Operation with system insert for switching or dimming or satellite insert 3-wire
  • Wall installation on system insert

Product characteristics
  • Extension of the detection area in combination with 3-wire satellite insert
  • Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
  • Switch-on with last brightness or fixed switch-on brightness, with dimming insert
  • Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
  • Dimming light via satellite unit, with dimmer insert
  • Screen for limiting the detection area
  • Fixed run-on time
  • Sensitivity selectable
  • Brightness threshold adjustable

Spare part:
Cover for slide switch ref.-no.: CD 1718 ASS ..

metal colours (thermoplastic lacquered)
Read less... Read more...
discontinued
Date of discontinuation 31.10.2026
Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: CD 17180 WU GB
EAN/GTIN: 4011377167926
Colour: gold-bronze
Material: thermoplastic
Date of discontinuation: 31.10.2026
Read less... Read more...

Technical data

Ambient temperature:−20 ... +45 °C
Storage/transport temperature:−25 ... +70 °C
Brightness setting:approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity:25, 50, 75, 100 %
Run-on time:approx. 2 min
Mounting height:1.10 m
Detection angle:180°
Detection range
Sensitivity 25 %:max. 8 m
Sensitivity 50 %:max. 13 m
Sensitivity 75 %:max. 26 m
Sensitivity 100 %:max. 32 m
Read less... Read more...
Downloads
Show all downloads
Operating instructions
Select language
Select language
DE
EN
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Tendering text
AE
Select language
Select language
EN
DE
AT
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
AE
Select language
Select language
EN
DE
AT
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Product data sheet
AE
Select language
Select language
DE
EN
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.04 KG
Length 68 MM
Height 40 MM
Width 66 MM
Carton
Packaging unit 1 pc.
Weight 0.084 KG
Length 84 MM
Height 72 MM
Width 82 MM
