LB Management room thermostat set, AS/A range, black

TR D A 1790 SW

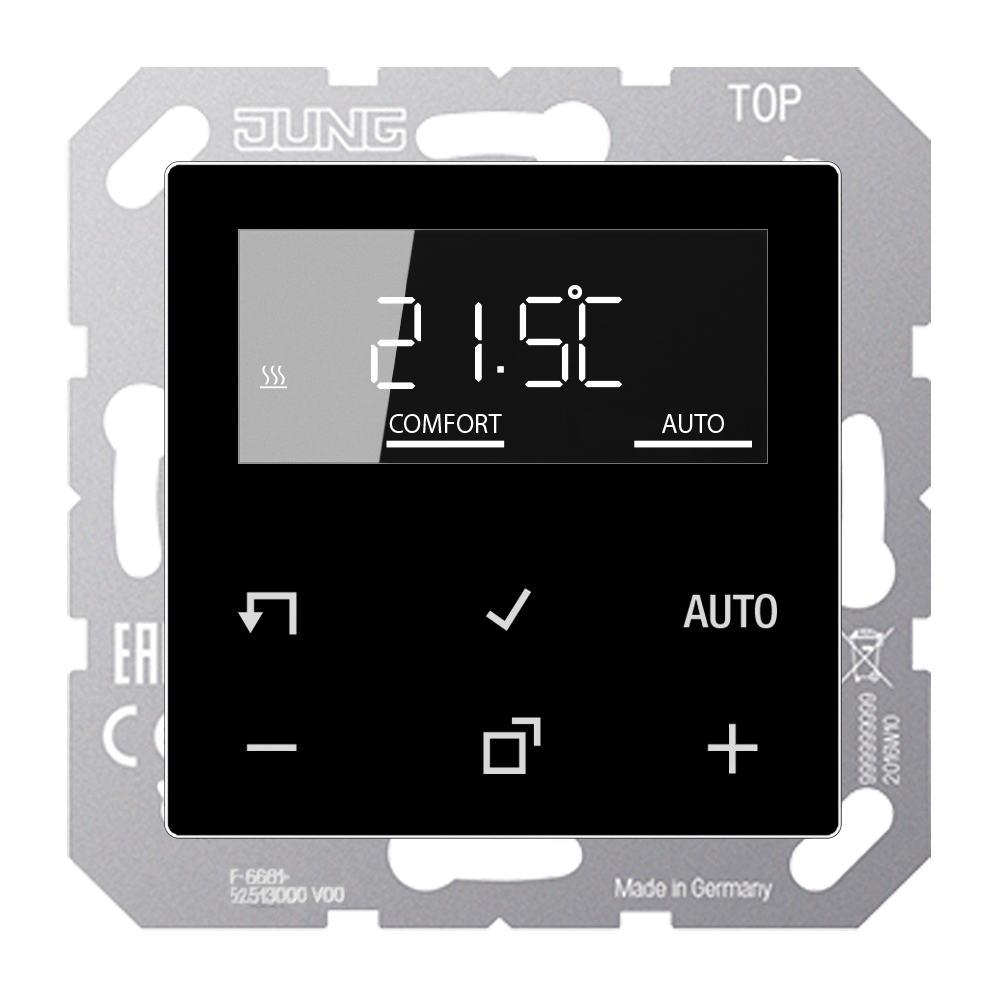

LB Management room thermostat set, black
arrow-slider
arrow-slider
  • LB Management room thermostat set, black
arrow-left-slim
arrow-right-slim
  • LB Management room thermostat set, black
TR D A 1790 SW
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • LB Management room thermostat set, black
consists of room thermostat insert (ref.-no.: 1790 RTR) and display (ref.-no.: .. 1790 D ..)
Read less... Read more...
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: TR D A 1790 SW
EAN/GTIN: 4011377172197
Colour: black
Range: AS/A range
Material: glass
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50/60 Hz
Stand-by power depending on the cover:approx. 0.1 ... 0.5 W
Switching current 230 V AC1:10 mA ... 16 A
Connected load:max. 3,600 W
Connection
single wire:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded without ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded with ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 1.5 mm²
Ambient temperature:−5 ... +45 °C
Accuracy per month:± 10 s
Power reserve:> 4 h
Regulator class (EU 811/2013):IV
Contribution to energy efficiency:2 %
Read less... Read more...
Downloads
Show all downloads
Operating instructions
Select language
Select language
DE
EN
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Operating instructions
Select language
Select language
DE
EN
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Tendering text
AE
Select language
Select language
EN
DE
AT
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
AE
Select language
Select language
EN
DE
AT
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Product data sheet
AE
Select language
Select language
DE
AT
EN
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.181 KG
Length 85 MM
Height 90 MM
Width 85 MM
Carton
Packaging unit 1 pc.
Weight 0.181 KG
Length 85 MM
Height 90 MM
Width 85 MM
