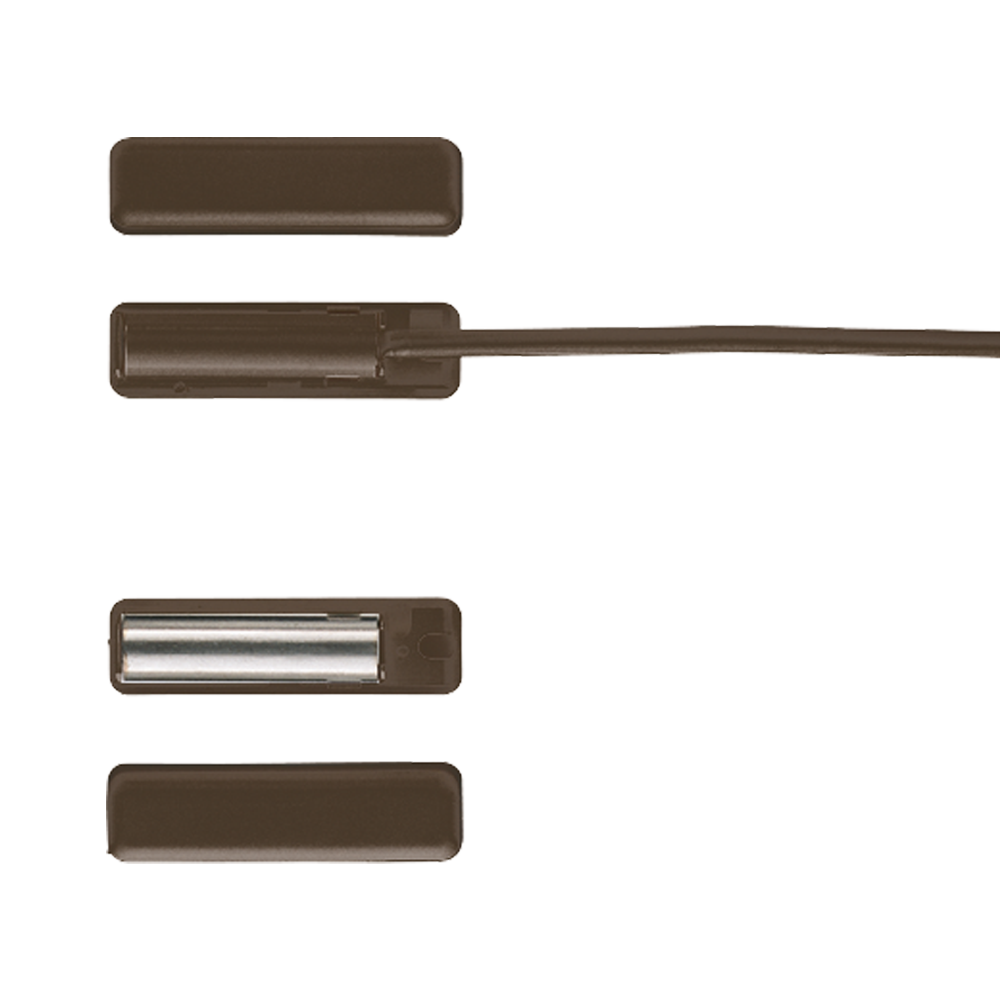

Magnet contact

FUS 4410 BR

A sealed tubular glass envelope protects the magnet contact (reed contact) against dust and water.
The reed contact is actuated by means of a permanent magnet.
For installation in steel profiles (magnetic material) only block reed contacts can be used.
Included in delivery:
2 surface-mounted housings, 2 caps,
3 spacers 2 mm
1 spacer 6 mm
To be integrated into the signalling system of the Smart Panels by the KNX system via binary inputs / push-button interfaces.

Read less... Read more...

Article number:	FUS 4410 BR
EAN/GTIN:	4011377776609
Version:	brown

Read less... Read more...

Technical data

Contact type:	1-pole, 1-way NO contact
Switching voltage:	max. 100 V DC
Switching current:	max. 0.5 A
Contact rating:	max. 10 W or 10 VA
Transition resistance:	0.15 Ω
Permissible operating voltage:	max. 40 V
Connection cable:	LIYY 2 x 0.14 mm, Ø 3.2 mm (length 3 m)
Dimensions:	contact = 32 mm x Ø 8 mm magnet = 30 mm x Ø 6 mm AINICo 5 housing (LxWxH) = 54 x 13 x 13 mm

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE ES
Dokumentation	Select language Select language EN
Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	238 G
Length	200 MM
Height	100 MM
Width	100 MM
Carton
Packaging unit	1 pc.
Weight	238 G
Length	200 MM
Height	100 MM
Width	100 MM
Palette
Packaging unit	440 pc.
Weight	105 KG
Length	1200 MM
Height	1190 MM
Width	800 MM
