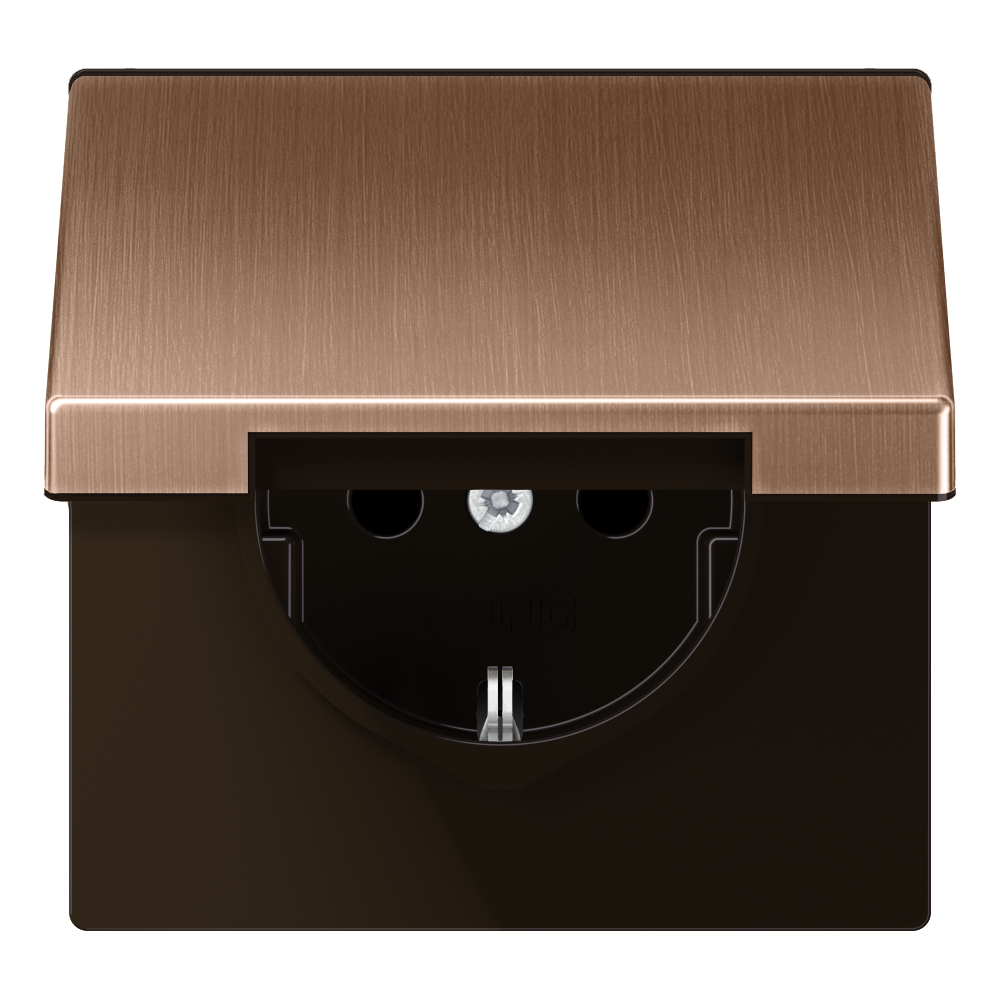

SCHUKO® socket, 16 A 250 V ~, hinged lid, LS range, brushed bronze

BRG 1520 KL

BRG 1520 KL

with hinged lid (with spring)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Metal versions not suitable for ceiling installation.
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

new

Individual colour printing possible

Article number:	BRG 1520 KL
EAN/GTIN:	4011377373297
Colour:	brushed bronze
Material:	stainless steel 1.4303 X4 CrNi 18-12, PVD-coated
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.112 KG
Length	70 MM
Height	48 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.218 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	100 pc.
Weight	12.606 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	425.392 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
