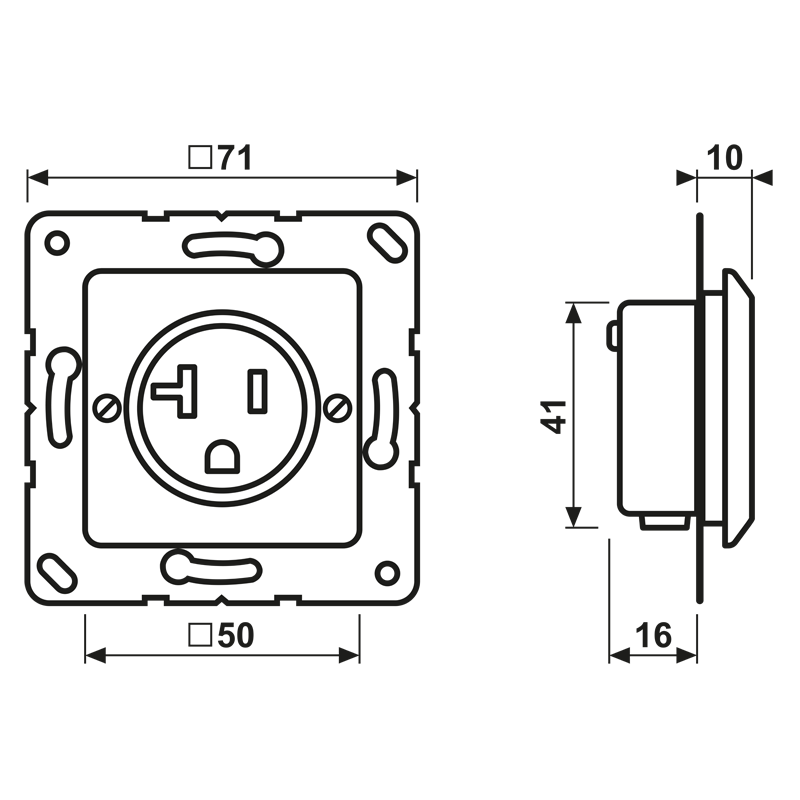

Socket, US NEMA system, 20 A 125 V ~, screw terminals, thermoplastic, 50 x 50 mm, white

121-20 WW

Socket, US NEMA system, screw terminals, thermoplastic, white

121-20 WW

20 A, 125 V ~, 5-20R, 2-pole + earth
(with supporting frame, screw fixing only)
with screw terminals for rigid and flexible wires up to 4 mm² acc. to US-NEMA

Thermoplastic (breakproof) high-gloss

50 x 50 system (screw fixing)
For design ranges:
AS 500 / A 500 / A creation / A plus: with intermediate frame no.: A 590 Z..
CD 500 / CD plus: with intermediate frame no.: ..590 Z.. or hinged lid no.: CD 590 KL..
CD universal: with hinged lid .: CD 590 BFKL..
LS 990 / LS plus: with intermediate frame no.: LS 961 Z.. or hinged lid no.: LS 990 KL..
Aluminium: with hinged lid no.: AL 2990 KL
Stainless Steel: with hinged lid no.: ES 2990 KL
Anthracite: with hinged lid no.: AL 2990 KL AN
Chrome: with hinged lid no.: GCR 2990 KL
Gold: with hinged lid no.: GO 2990 KL
Gold 24 carat: with hinged lid no.: LS 990 KL GGO

Read less... Read more...

Article number:	121-20 WW
EAN/GTIN:	4011377195059
Version:	white
Range:	50 x 50 mm
Material:	thermoplastic

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.074 KG
Length	71 MM
Height	32 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.742 KG
Length	290 MM
Height	80 MM
Width	180 MM
