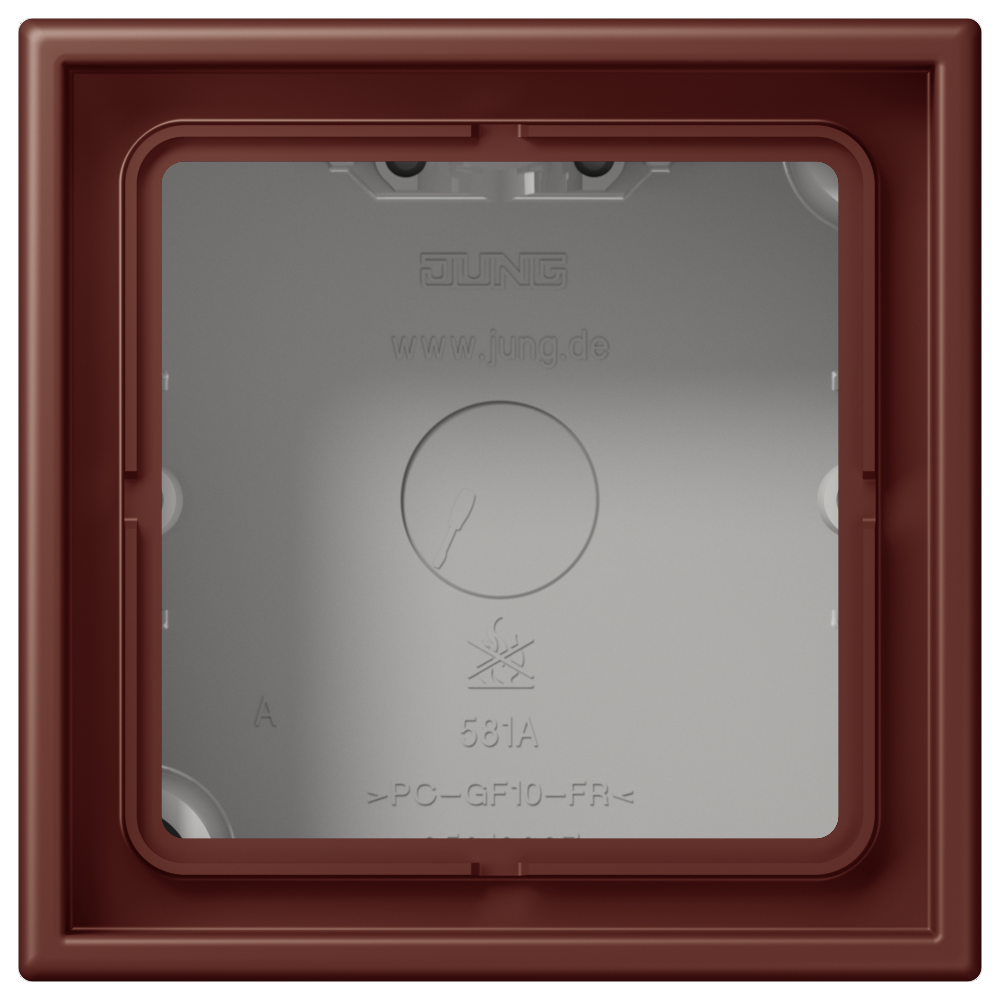

Surface cap 1-gang, LS CUBE, duroplastic lacquered, terre sienne brûlée 31 (32120), vertical and horizontal installation

LC 581 A 235

Surface cap 1-gang, terre sienne brûlée 31 (32120)

LC 581 A 235

with integrated frame and non-flammable ground plate
for inserts with covers of the LS range (except LS 1912 toggle switches, key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
81 x 81 x 47 mm
Installation depth max. 34 mm

matt lacquered

Spare part:
Spare part:
mounting box ref.-no.: 581 A

Read less... Read more...

Article number:	LC 581 A 235
EAN/GTIN:	4011377345997
Colour:	terre sienne brûlée 31
Material:	duroplastic lacquered
Version:	1-gang

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.107 KG
Length	80 MM
Height	48 MM
Width	80 MM
Carton
Packaging unit	1 pc.
Weight	0.132 KG
Length	90 MM
Height	92 MM
Width	86 MM
Outer carton
Packaging unit	10 pc.
Weight	1.547 KG
Length	462 MM
Height	100 MM
Width	195 MM
