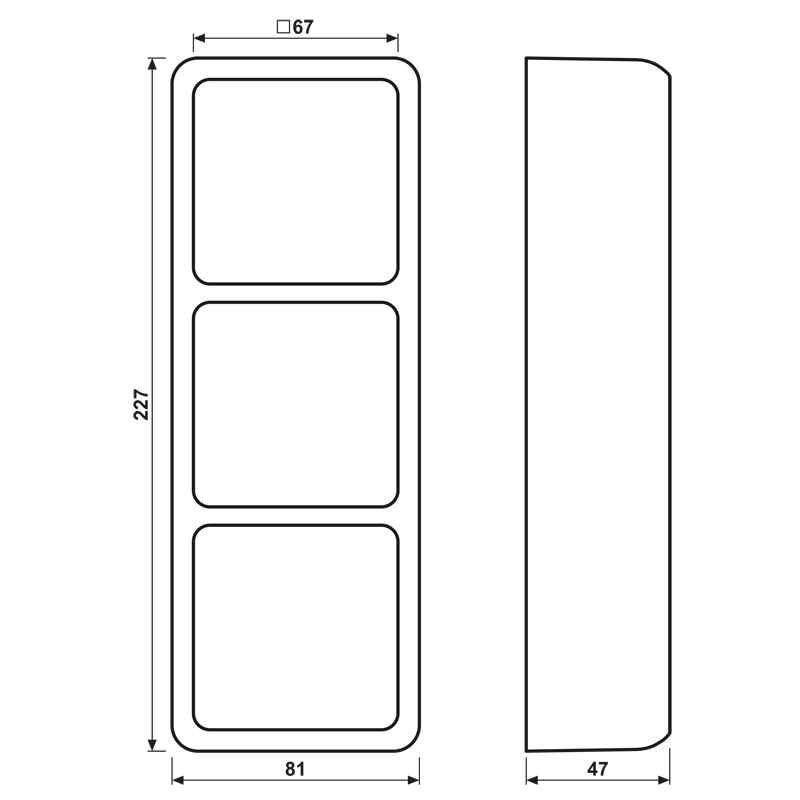

Surface cap 3-gang, CD 500 Surface-mounted, duroplastic, grey, vertical and horizontal installation

CD 583 A GR

CD 583 A GR

with integrated frame and non-flammable ground plate
for inserts with covers of the CD range (except key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
227 x 85 x 47 mm
Installation depth max. 34 mm

Duroplastic (scratch-proof) glossy

Spare part:
mounting box ref.-no.: 583 A

Read less... Read more...

discontinued

Date of discontinuation 31.10.2026

Article number:	CD 583 A GR
EAN/GTIN:	4011377892606
Colour:	grey
Material:	duroplastic
Version:	3-gang
Date of discontinuation:	31.10.2026
