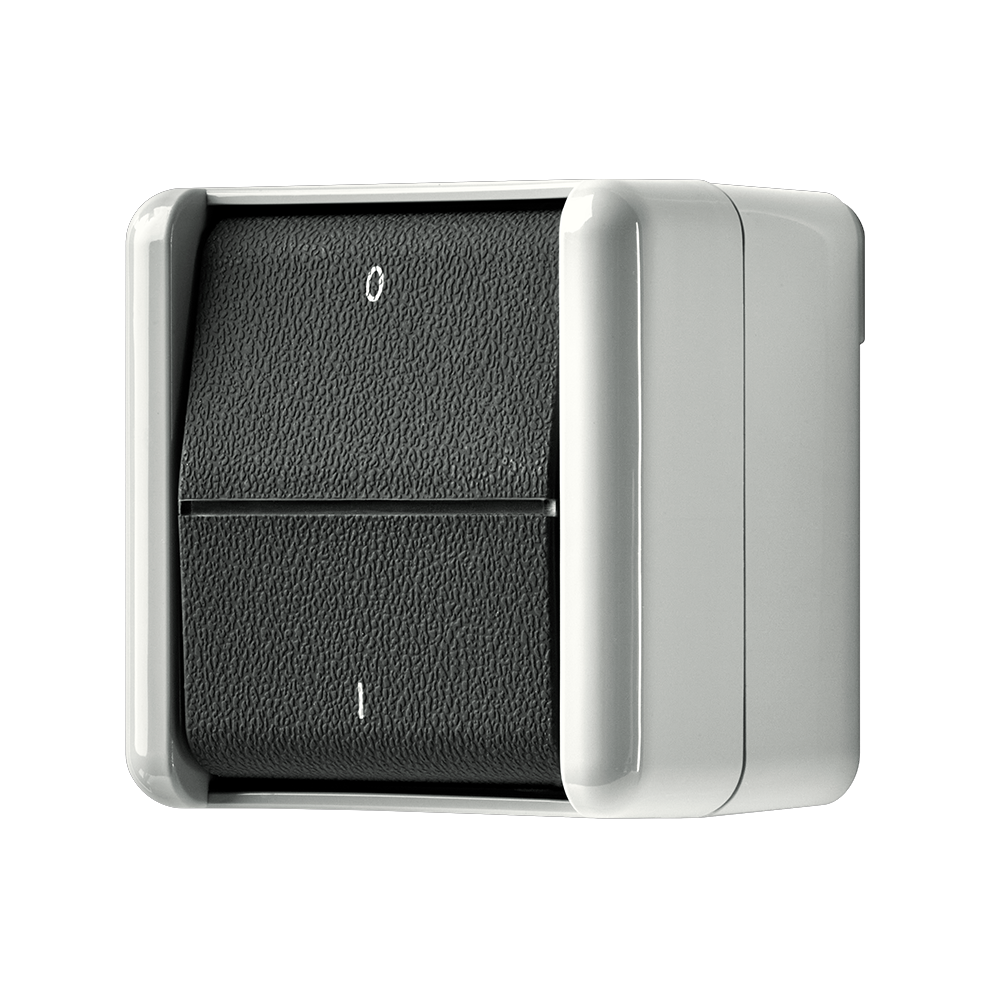

1-gang switch, 2-pole, 1-way, 10 AX 250 V ~, IP 44, WG 800

802 W

1-gang switch, 2-pole, 1-way, 10 AX, 250 V ~, grey

802 W

with screwless terminals for rigid wires up to 2.5 mm²

Switch can be illuminated in OFF-position with lamp ref.-no. 90/95 (230 V), 96-.. (low voltage), or LED lamp ref.-no. 90-LED.. (230 V) or 961248 LED.. (low voltage).

Rocker with symbols I 0

Read less... Read more...

Degree of protection IP44 is ensured.

Article number:	802 W
EAN/GTIN:	4011377655904
Version:	2-pole, 1-way
Power SBL (self-ballasted lamps):	max. 100 W

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
ES atitikties deklaracija	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH
Techniniai duomenys	Select language Select language DE EN ES FR NL

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.15 KG
Length	75 MM
Height	60 MM
Width	75 MM
Carton
Packaging unit	10 pc.
Weight	1.503 KG
Length	330 MM
Height	90 MM
Width	170 MM
Palette
Packaging unit	1440 pc.
Weight	239 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
