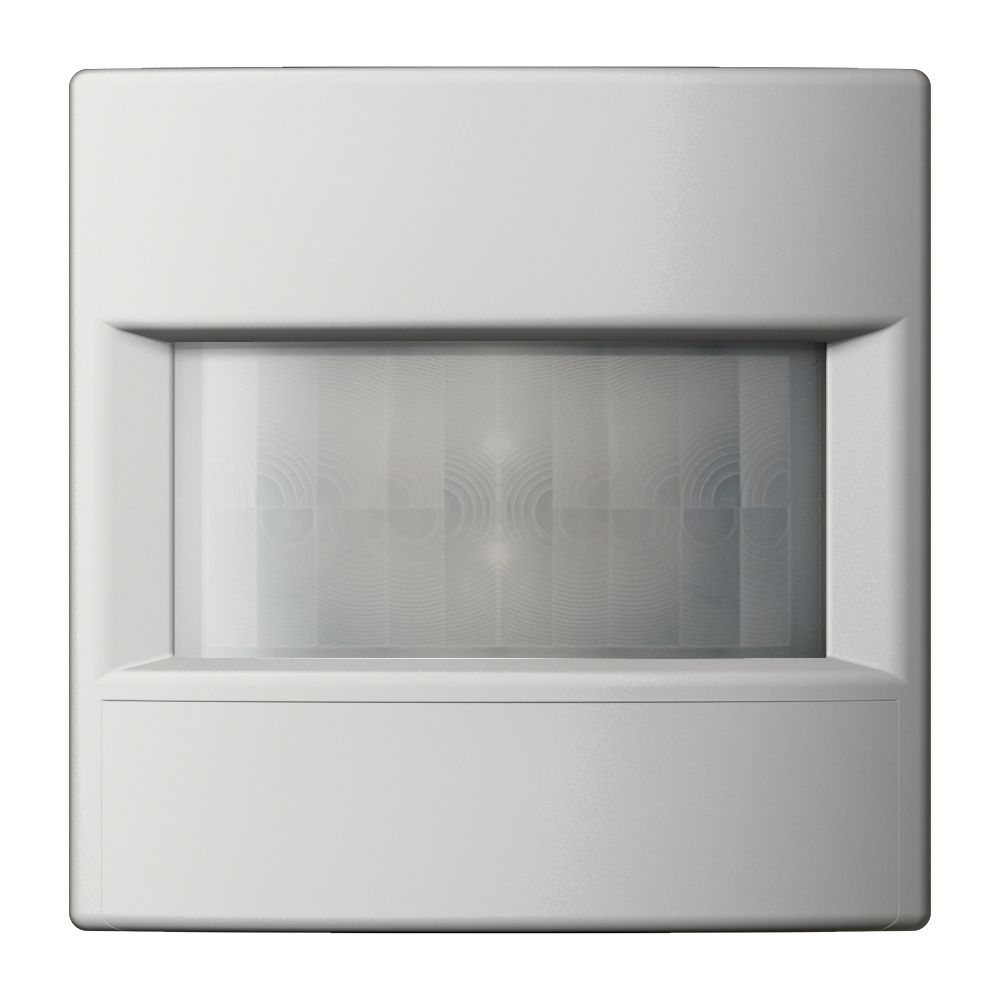

Standardfor bus coupling unit 3 ref.-no.: 2073 U
ETS product family: Physical sensors
Product type: Movement
Numatytoji paskirtis- Requirement-oriented control of lighting and other electrical loads in interiors
- Mounting on bus coupling unit 3 (ref.-no.: 2073 U)
Produkto savybės- Automatic switching of lighting depending on the thermal movement and ambient brightness
- 2 PIR sensors
- Detection range 180°
- Integrated brightness sensor
- Switch-off brightness can be set
- Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Sensitivity can be set manually
- Status LEDs
- Manual switching on the device
- Up to half of the detection area can be screened off (cover or parameter setting)
Spare part:Cover for slide switch ref.-no.: .. 1718 ASS .. in the LS range
Thermoplastic (breakproof) high-gloss
