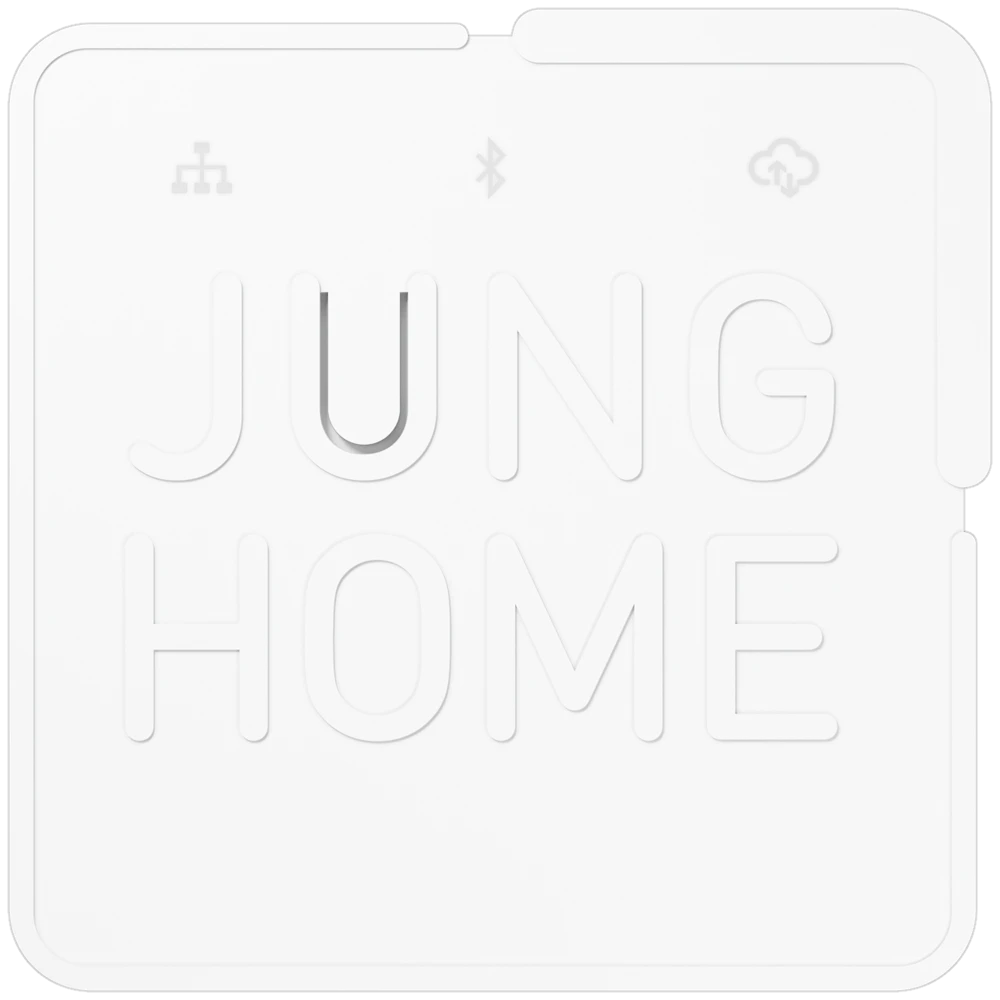

JUNG HOME gateway
BT S GATEWAY
including power supply
including LAN cable
Intended use
Product characteristics
Accessories:
mounting adapter for DIN rail ref.-no.: MA-REG
including LAN cable
Intended use
- Connecting JUNG HOME devices to myJUNG services, e.g. for voice control
- Connecting JUNG HOME devices to other smart home systems via the local network
- Only suitable for use in indoor areas that are free of dripping and splashing water
- For wall installation or as desktop device (top-hat rail mounting with separately available adapter for rail mounting, ref.-no.: MA-REG)
Product characteristics
- Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- Bluetooth® Mesh for fully encrypted wireless communication and repeater function
- Encrypted communication via myJUNG services e.g. with services from Alexa, Google Home
- 3 status LEDs for commissioning and operation support
- Button for commissioning and for factory reset
- RJ45 socket and included LAN cable for connecting to WLAN router
- Can be updated using JUNG HOME app
- Encrypted communication with local network e.g. with Smart Visu Server (requirement: JUNG HOME gateway from version 1.3.1 and SV-SERVER2 from version 1.2.1850), wibutler pro 2 and Mediola gateway
Accessories:
mounting adapter for DIN rail ref.-no.: MA-REG
Read less...
Read more...
More articles
Information
| Article number: | BT S GATEWAY |
|---|---|
| EAN/GTIN: | 4011377202818 |
| Version: | with Europlug |
Read less...
Read more...
Technical data
| Gateway | |
| Power consumption stand-by: | < 2 W |
| Dimensions (L x W x H): | 102 x 102 x 28 mm |
| Operating temperature: | −5 ... +45 °C |
| Storage/transport temperature: | −20 ... +70 °C |
| Degree of protection: | IP20 |
| Radio frequency: | 2402,0 ... 2480,0 MHz |
| Transmission range | |
| in buildings: | approx. 30 m |
| Transmitting power: | 10 dBm / 10 mW, class 1.5 |
| LAN: | 1 x 10/100/1000 Mbit/s |
| Power supply | |
| Supply voltage: | AC 230 V |
| Mains frequency: | 50/60 Hz |
| Output voltage: | 5 V SELV |
| Connection USB: | Micro USB-B |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Workbook |
Select language
|
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.177 KG |
| Length | 103 MM |
| Height | 107 MM |
| Width | 103 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.177 KG |
| Length | 103 MM |
| Height | 107 MM |
| Width | 103 MM |
