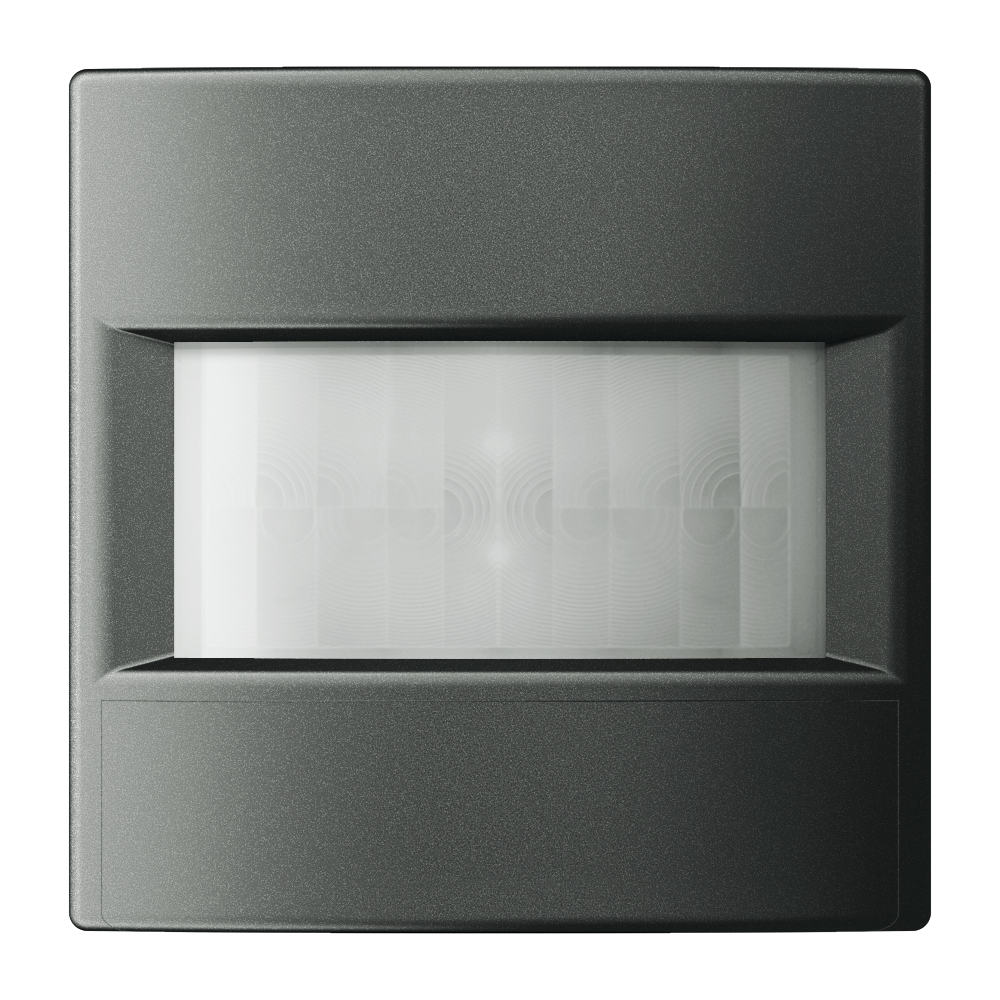

JUNG HOME motion detector, 1,10 m, thermoplastic lacquered, LS range, antracito sp.

BT AL 17181 AN

JUNG HOME motion detector, 1,10 m, antracitas
BT AL 17181 AN
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • JUNG HOME motion detector, 1,10 m, antracitas
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE

Numatytoji paskirtis
  • Automatic switching of lighting depending on the thermal movement and ambient brightness
  • Belaidis sujungimas su JUNG HOME sistemos įrenginiais
  • Operation with system insert for switching or dimming or satellite insert 3-wire
  • Wall installation on system insert

Produkto savybės
  • Įrenginio paleidimas ir valdymas naudojant JUNG HOME programėlę mobiliajame įrenginyje (išmaniajame telefone ar planšetiniame kompiuteryje) per „Bluetooth®
  • Switch for continuous ON/OFF or automatic operation
  • Detection range extended by combining several JUNG HOME motion detectors or via satellite input
  • Screen for limiting the detection area
  • Multi-coloured status indicator
  • Disabling of local operation
  • Free linking of the motion sensor with actuator in the insert or wirelessly with other JUNG HOME devices
  • Up to 16 time programs control the functions of the respective insert (ON/OFF switching or dimming)
  • Laiptų apšvietimo funkcija (automatinis išjungimas) su išjungimo įspėjimu
  • Veikimo trukmė, įjungimo uždelsimas, išjungimo uždelsimas
  • Funkcijos išjungimas ir priverstinis nukreipimas: nuolatinis įjungimas / išjungimas arba įjungimas / išjungimas nustatytam laikui
  • Įjunkite arba išjunkite automatines funkcijas naudodami JUNG HOME programėlę
  • Automatinis datos ir laiko atnaujinimas prisijungus prie mobiliojo įrenginio
  • Laiko programos pagal saulėtekį arba saulėlydį (astro laikmatis)
  • Maximum and minimum brightness adjustable, with dimming insert
  • Switch-on with last brightness or fixed switch-on brightness, with dimming insert
  • Warm dimming (changing of the colour temperature with simultaneous brightness increase), with DALI insert
  • Apkrovos įtraukimas į zonas (grupes), centrines funkcijas ir scenas
  • Evaluation of the satellite inputs (if present) for controlling the system insert
  • Bluetooth® Mesh – visiškai šifruotas belaidis ryšys ir kartotuvo funkcija
  • Galima atnaujinti naudojant JUNG HOME programėlę

Available in future via update:
(Notes on updates and schedules can be found at jung.group/junghome)
  • Night light function with period for brightness reduction, with dimming insert
  • Hotel function (orientation light instead of OFF), with dimming insert
  • Calling a scene with movement
Spare part:
Cover for slide switch ref.-no.: .. 1718 ASS .. in the LS range

metal colours (thermoplastic lacquered)
Read less... Read more...
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: BT AL 17181 AN
EAN/GTIN: 4011377201866
Colour: anthracite
Material: thermoplastic lacquered
Read less... Read more...

Technical data

Aplinkos temperatūra:−5 ... +45 °C
Transportavimo temperatūra:−25 ... +70 °C
Laikymo temperatūra:−5 ... +45 °C
Santykinė drėgmė:20 ... 70 % (be kondensacijos)
Degree of protection:IP20
Tikslumas per mėnesį:± 13 s
Energijos rezervas:min. 4 h
Detection angle:180°
Mounting height:1,10 m
Sensitivity:0, 25, 50, 75, 100 %
Brightness setting:approx. 5 ... 1,000 lx (and daytime operation)
Run-on time:approx. 1 s ... 240 min
Radijo dažnis:2402,0 ... 2480,0 MHz
Perdavimo galia:maks. 10 mW (klasė 1.5)
Ryšio veikimo diapazonas
Perdavimo diapazonas pastatuose:apie 30 m
Read less... Read more...
Parsisiunčiama medžiaga
Naudojimosi instrukcija
Workbook
Aprašas konkursams
ES atitikties deklaracija
Produkto aprašymas
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.023 KG
Length 70 MM
Height 38 MM
Width 70 MM
Carton
Packaging unit 1 pc.
Weight 0.062 KG
Length 84 MM
Height 70 MM
Width 84 MM
Outer carton
Packaging unit 10 pc.
Weight 0.746 KG
Length 360 MM
Height 90 MM
Width 175 MM
