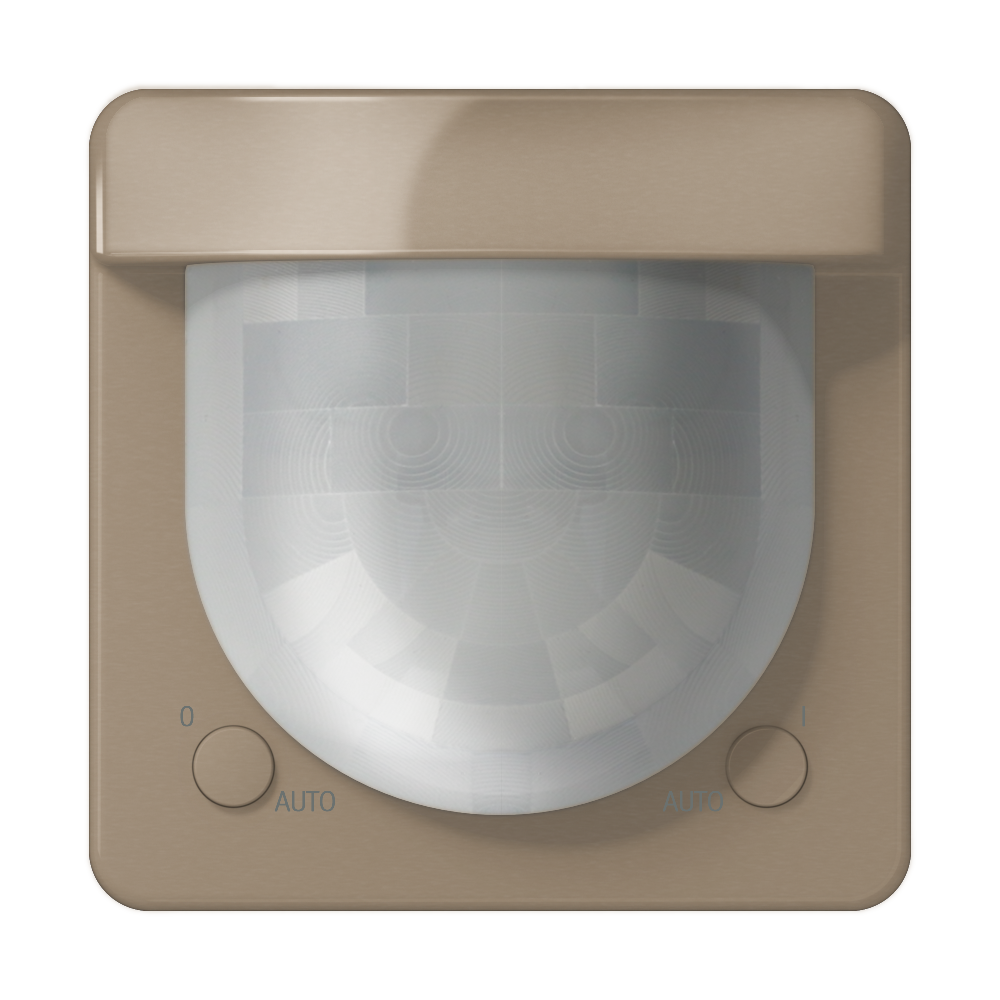

JUNG HOME motion detector, 2,20 m, thermoplastic lacquered, CD range, gold-bronze
BT CD 17182 GB
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
IP44 suitable for installation in interiors and exteriors
Numatytoji paskirtis
Produkto savybės
Available in future via update:
(Notes on updates and schedules can be found at jung.group/junghome)
metal colours (thermoplastic lacquered)
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
IP44 suitable for installation in interiors and exteriors
Numatytoji paskirtis
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Belaidis sujungimas su JUNG HOME sistemos įrenginiais
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
Produkto savybės
- Įrenginio paleidimas ir valdymas naudojant JUNG HOME programėlę mobiliajame įrenginyje (išmaniajame telefone ar planšetiniame kompiuteryje) per „Bluetooth®“
- 2 buttons for continuous ON/OFF or automatic operation
- Detection range extended by combining several JUNG HOME motion detectors or via satellite input
- Multi-coloured status indicator
- Disabling of local operation
- Free linking of the motion sensor with load output in the system insert or wirelessly with other JUNG HOME devices or for calling up a scene
- Up to 16 time programs control the functions of the respective insert (ON/OFF switching or dimming)
- Laiptų apšvietimo funkcija (automatinis išjungimas) su išjungimo įspėjimu
- Veikimo trukmė, įjungimo uždelsimas, išjungimo uždelsimas
- Funkcijos išjungimas ir priverstinis nukreipimas: nuolatinis įjungimas / išjungimas arba įjungimas / išjungimas nustatytam laikui
- Įjunkite arba išjunkite automatines funkcijas naudodami JUNG HOME programėlę
- Automatinis datos ir laiko atnaujinimas prisijungus prie mobiliojo įrenginio
- Laiko programos pagal saulėtekį arba saulėlydį (astro laikmatis)
- Maximum and minimum brightness adjustable, with dimming insert
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Warm dimming (changing of the colour temperature with simultaneous brightness increase), with DALI insert
- Apkrovos įtraukimas į zonas (grupes), centrines funkcijas ir scenas
- Evaluation of the satellite inputs (if present) for controlling the system insert
- Bluetooth® Mesh – visiškai šifruotas belaidis ryšys ir kartotuvo funkcija
- Galima atnaujinti naudojant JUNG HOME programėlę
Available in future via update:
(Notes on updates and schedules can be found at jung.group/junghome)
- Night light function with period for brightness reduction, with dimming insert
- Hotel function (orientation light instead of OFF), with dimming insert
- Calling a scene with movement
metal colours (thermoplastic lacquered)
Read less...
Read more...
discontinued
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
More articles
Information
| Article number: | BT CD 17182 GB |
|---|---|
| EAN/GTIN: | 4011377202467 |
| Colour: | gold-bronze |
| Material: | thermoplastic lacquered |
| Date of discontinuation: | 31.10.2026 |
Read less...
Read more...
Technical data
| Aplinkos temperatūra: | −5 ... +45 °C |
| Transportavimo temperatūra: | −25 ... +70 °C |
| Laikymo temperatūra: | −5 ... +45 °C |
| Santykinė drėgmė: | 20 ... 70 % (be kondensacijos) |
| Degree of protection: | IP20 |
| Tikslumas per mėnesį: | ± 13 s |
| Energijos rezervas: | min. 4 h |
| Detection angle: | 180° |
| Mounting height: | 1.1 / 2.2 m |
| Sensitivity: | 0, 25, 50, 75, 100 % |
| Brightness setting: | approx. 5 ... 1,000 lx (and daytime operation) |
| Run-on time: | approx. 1 s ... 240 min |
| Radijo dažnis: | 2402,0 ... 2480,0 MHz |
| Perdavimo galia: | maks. 10 mW (klasė 1.5) |
| Ryšio veikimo diapazonas | |
| Perdavimo diapazonas pastatuose: | apie 30 m |
Read less...
Read more...
Parsisiunčiama medžiaga
| Naudojimosi instrukcija | |
|---|---|
| Workbook |
Select language
|
| Aprašas konkursams | |
| ES atitikties deklaracija | |
| Produkto aprašymas |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.048 KG |
| Length | 85 MM |
| Height | 73 MM |
| Width | 85 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 0.606 KG |
| Length | 360 MM |
| Height | 90 MM |
| Width | 175 MM |
