for rockers ref.-no. .. 102 .., .. 102 KO5 .. of the CD and LS ranges
project design and commissioning with ETS5 or a more recent version
ETS product family: Push-button

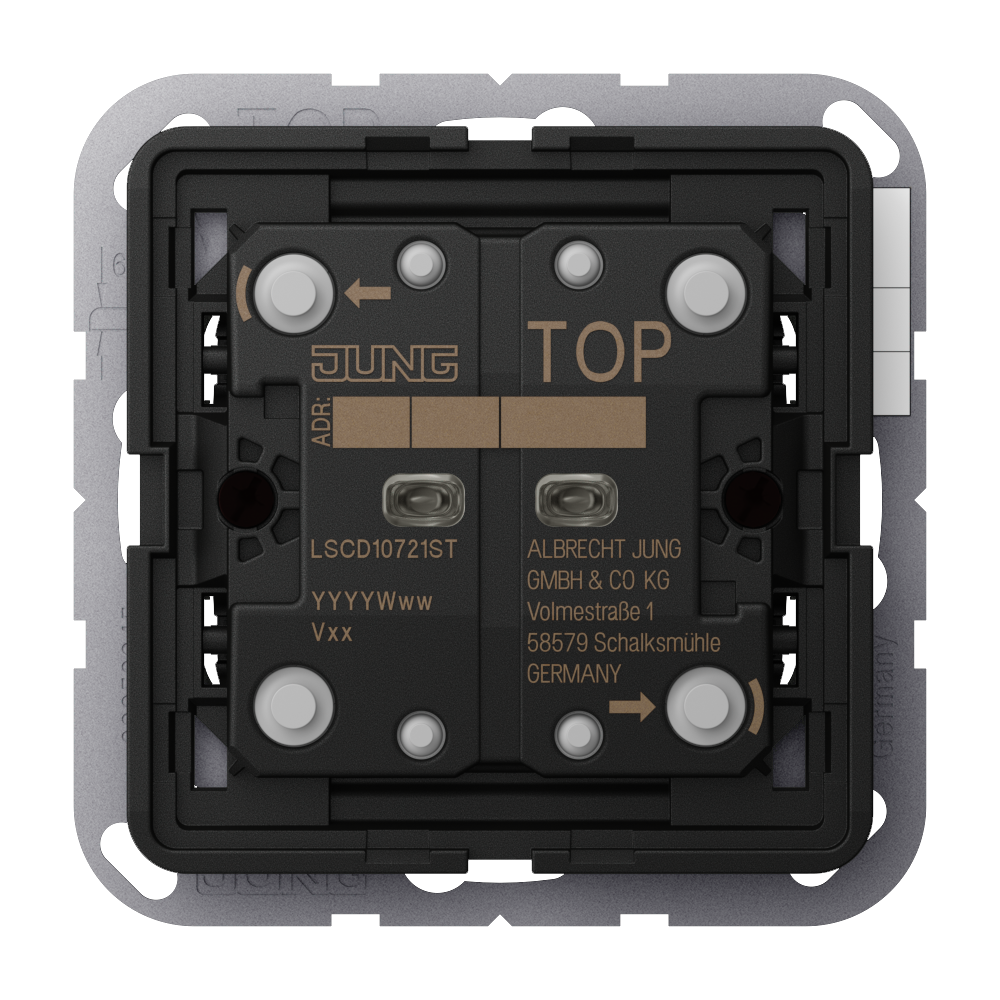

Product type: 2-gang push-button
Numatytoji paskirtis- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, calling up and saving light scenes, etc.
- Montavimas montažinėje dėžutėje, kurios matmenys atitinka DIN 49073 standartą
Produkto savybės- KNX medium: TP 256
- Operating concept (rocker or button) adjustable for each operating area
- Button evaluation (single-area operation or dual-area operation) adjustable
- One or two functions per operating area
- Integrated bus coupling unit
- One status LED per operating area – red
- KNX Data Secure compatible with ETS 5.7.3 or higher
- Can be updated with the ETS Service App
Accessories:Screw assortment for sensors, ref.-no.: S-BOX TSM RT ZN
