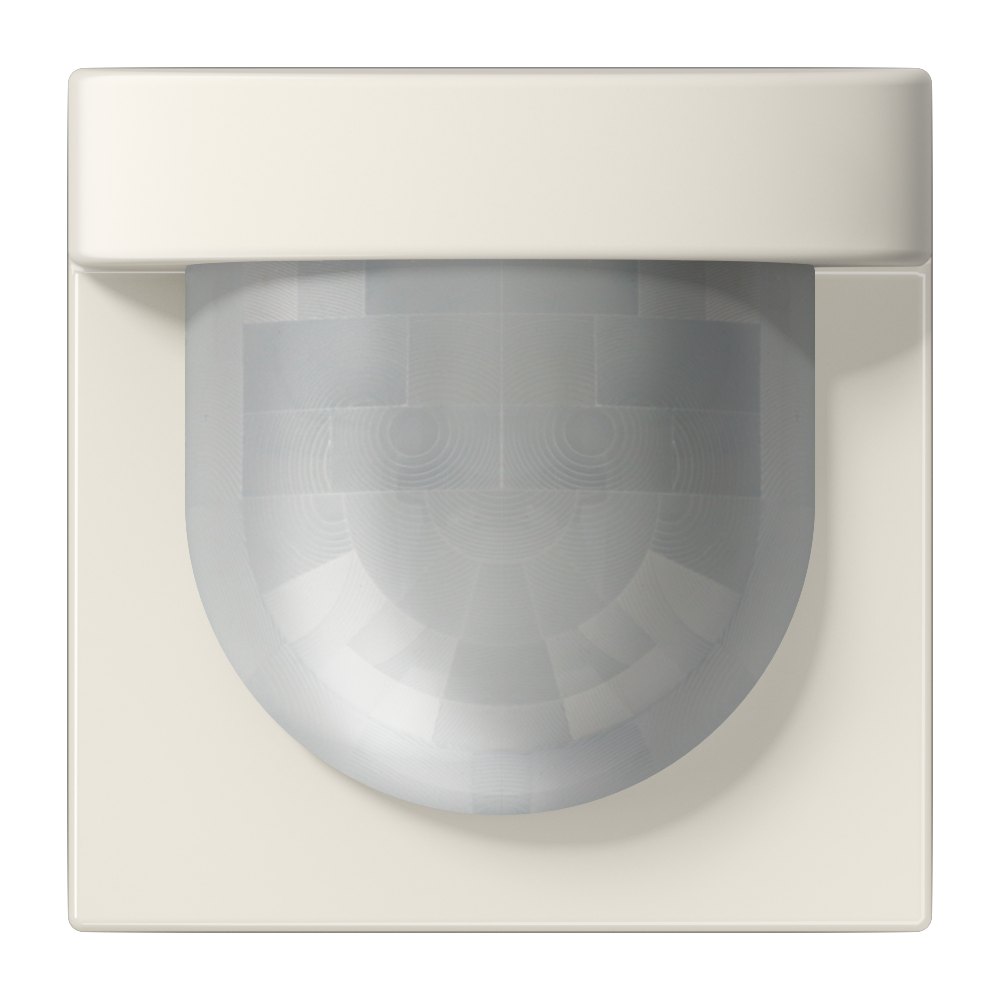

LB Management motion detector, Standard, 2,20 m, thermoplastic, LS range, dramblio kaulo sp.

LS 17280

LB Management motion detector, Standard, 2,20 m, dramblio kaulo sp.

LS 17280

Sensitivity and brightness threshold adjustable
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
IP44 suitable only for interiors

Numatytoji paskirtis

Automatic switching of lighting depending on the thermal movement and ambient brightness
Operation with system insert for switching or dimming or satellite insert 3-wire
Wall installation on system insert

Produkto savybės

Extension of the detection area in combination with 3-wire satellite insert
Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
Brightness threshold adjustable
Sensitivity selectable
Fixed run-on time
Switch-on with last brightness or fixed switch-on brightness, with dimming insert
Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
Dimming light via satellite unit, with dimmer insert

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.

Article number:	LS 17280
EAN/GTIN:	4011377168510
Colour:	dramblio kaulo sp.
Material:	thermoplastic

Read less... Read more...

Technical data

Aplinkos temperatūra:	−20 ... +45 °C
Storage/transport temperature:	−25 ... +70 °C
Brightness setting:	approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity:	25, 50, 75, 100 %
Run-on time:	approx. 2 min
Mounting height:	1,10 / 2,20 m
Detection angle:	180°
Detection range (2.2 m mounting height)
Sensitivity 25 %:	max. 7 m
Sensitivity 50 %:	max. 11 m
Sensitivity 75 %:	max. 13 m
Sensitivity 100 %:	max. 15 m
Detection range (1.1 m mounting height)
Sensitivity 25 %:	max. 7 m
Sensitivity 50 %:	max. 8 m
Sensitivity 75 %:	max. 9 m
Sensitivity 100 %:	max. 10 m

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Naudojimosi instrukcija	Select language Select language DE EN ES FI FR IT NL NO PT RU SE ZH
Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
ES atitikties deklaracija	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.036 KG
Length	70 MM
Height	48 MM
Width	68 MM
Carton
Packaging unit	1 pc.
Weight	0.074 KG
Length	84 MM
Height	72 MM
Width	82 MM
Outer carton
Packaging unit	10 pc.
Weight	0.866 KG
Length	360 MM
Height	90 MM
Width	175 MM
