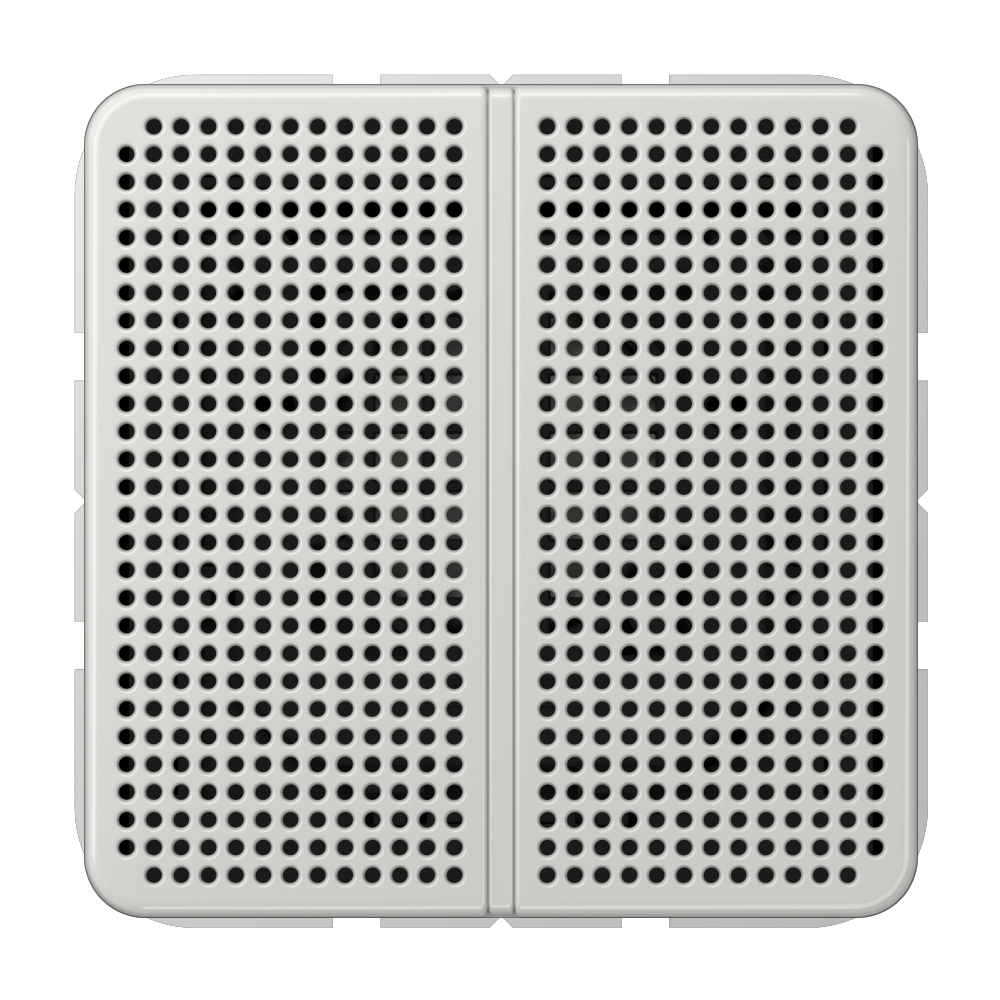

Loudspeaker module, thermoplastic, CD range, light grey

LSM CD 4 LG

LSM CD 4 LG

for connection to the Smart Radio DAB+ ref.-no. DAB .. and DAB .. BT ..
high-quality tone and great loudspeaker dynamics
optimised acoustics through the use of a bass-reflex tube

Thermoplastic (breakproof) high-gloss

Read less... Read more...

discontinued

Date of discontinuation 31.10.2027

Article number:	LSM CD 4 LG
EAN/GTIN:	4011377050358
Colour:	light grey
Range:	CD range
Material:	thermoplastic
Date of discontinuation:	31.10.2027

Read less... Read more...

Technical data

Rated nominal power:	approx. 2,5 W
Impedance:	4 Ω
Frequency range:	120 ... 15 000 Hz (−10 dB)
Santykinė drėgmė:	max. 95 %
Storage/transport temperature:	−25 ... +60 °C
Connection:	screw terminals
Terminals for:	1,5 mm²
