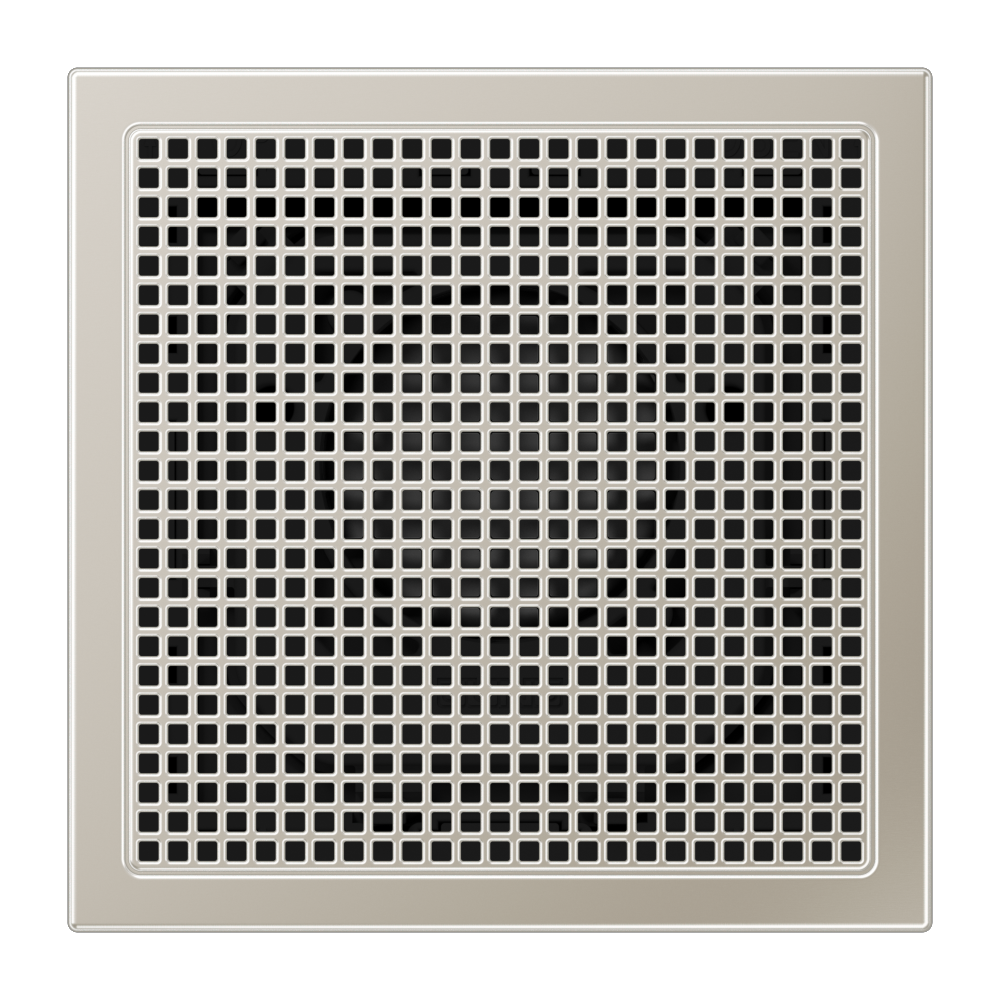

Loudspeaker module, LS range, stainless steel

LSM ES 4

LSM ES 4

for connection to the Smart Radio DAB+ ref.-no. DAB .. and DAB .. BT ..
high-quality tone and great loudspeaker dynamics
optimised acoustics through the use of a bass-reflex tube

Metal versions

Read less... Read more...

Article number:	LSM ES 4
EAN/GTIN:	4011377050426
Colour:	stainless steel
Range:	LS range
Material:	stainless steel 1.4303 X4 CrNi 18-12

Read less... Read more...

Technical data

Rated nominal power:	approx. 2,5 W
Impedance:	4 Ω
Frequency range:	120 ... 15 000 Hz (−10 dB)
Relative humidity:	max. 95 %
Storage/transport temperature:	−25 ... +60 °C
Connection	screw terminals
Terminals for:	1,5 mm²

Read less... Read more...
