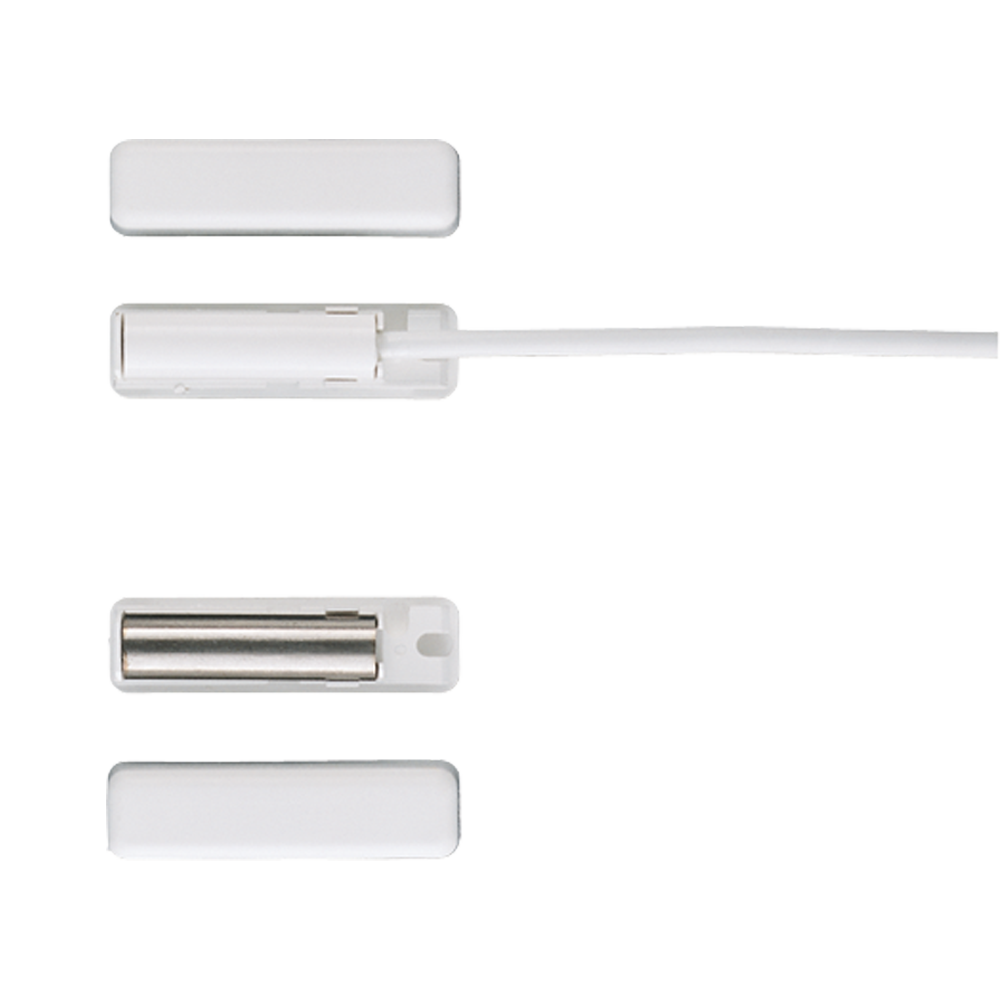

Magnet contact

FUS 4410 WW

A sealed tubular glass envelope protects the magnet contact (reed contact) against dust and water.
The reed contact is actuated by means of a permanent magnet.
For installation in steel profiles (magnetic material) only block reed contacts can be used.
Included in delivery:
2 surface-mounted housings, 2 caps,
3 spacers 2 mm
1 spacer 6 mm
To be integrated into the signalling system of the Smart Panels by the KNX system via binary inputs / push-button interfaces.

Read less... Read more...

Article number:	FUS 4410 WW
EAN/GTIN:	4011377776500
Colour:	white
Version:	similar RAL 9016

Read less... Read more...

Technical data

Contact type:	1-pole, 1-way NO contact
Switching voltage:	max. 100 V DC
Switching current:	max. 0,5 A
Contact rating:	max. 10 W or 10 VA
Transition resistance:	0,15 Ω
Permissible operating voltage:	max. 40 V
Connection cable:	LIYY 2 x 0.14 mm, Ø 3.2 mm (length 3 m)
Dimensions:	contact = 32 mm x Ø 8 mm magnet = 30 mm x Ø 6 mm AINICo 5 housing (LxWxH) = 54 x 13 x 13 mm

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Naudojimosi instrukcija	Select language Select language DE ES
Dokumentacija	Select language Select language EN
Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
ES atitikties deklaracija	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.176 KG
Length	92 MM
Height	87 MM
Width	91 MM
Carton
Packaging unit	1 pc.
Weight	0.176 KG
Length	92 MM
Height	87 MM
Width	91 MM
Outer carton
Packaging unit	10 pc.
Weight	1.908 KG
Length	462 MM
Height	100 MM
Width	195 MM
Palette
Packaging unit	640 pc.
Weight	144.122 KG
Length	1200 MM
Height	1190 MM
Width	800 MM
