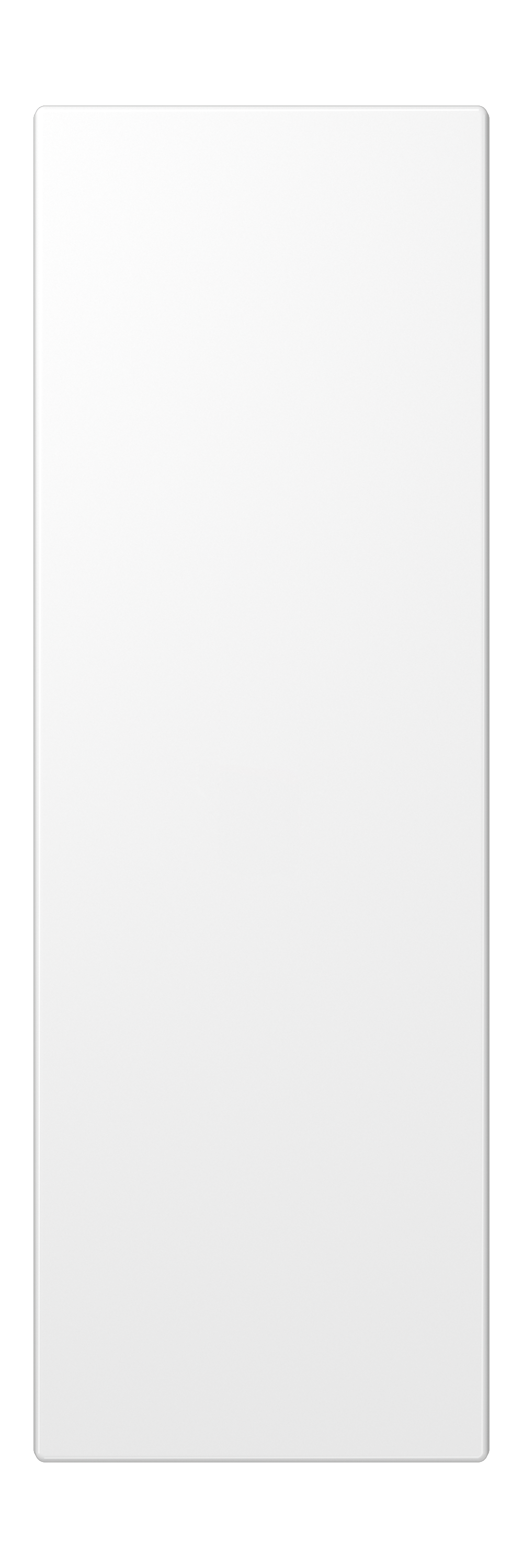

Oversize rocker (70 x 212.4 mm), stainless steel lacquered, LS range, balta, vertical and horizontal installation

ES 2993 WW

ES 2993 WW

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
with insert and design frame suitable for automatic doors (flush-mounting with ref.: LS 983 WW, ES 2983; surface mounting with ref: LS 583 A WW, ES 2583 A-L)

Protection level IP44 only possible with 3-gang frame!
Inscription on request
Installation note: No plaster compensation possible. Insert must be mounted flush with the wall. Supporting frame must be on top of wallpaper.

Spare part:
Spare part:
holder plate ref.-no.: ES 2993 HP

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Article number:	ES 2993 WW
EAN/GTIN:	4011377065581
Colour:	white (stainless steel lacquered)
Material:	stainless steel lacquered

Read less... Read more...
