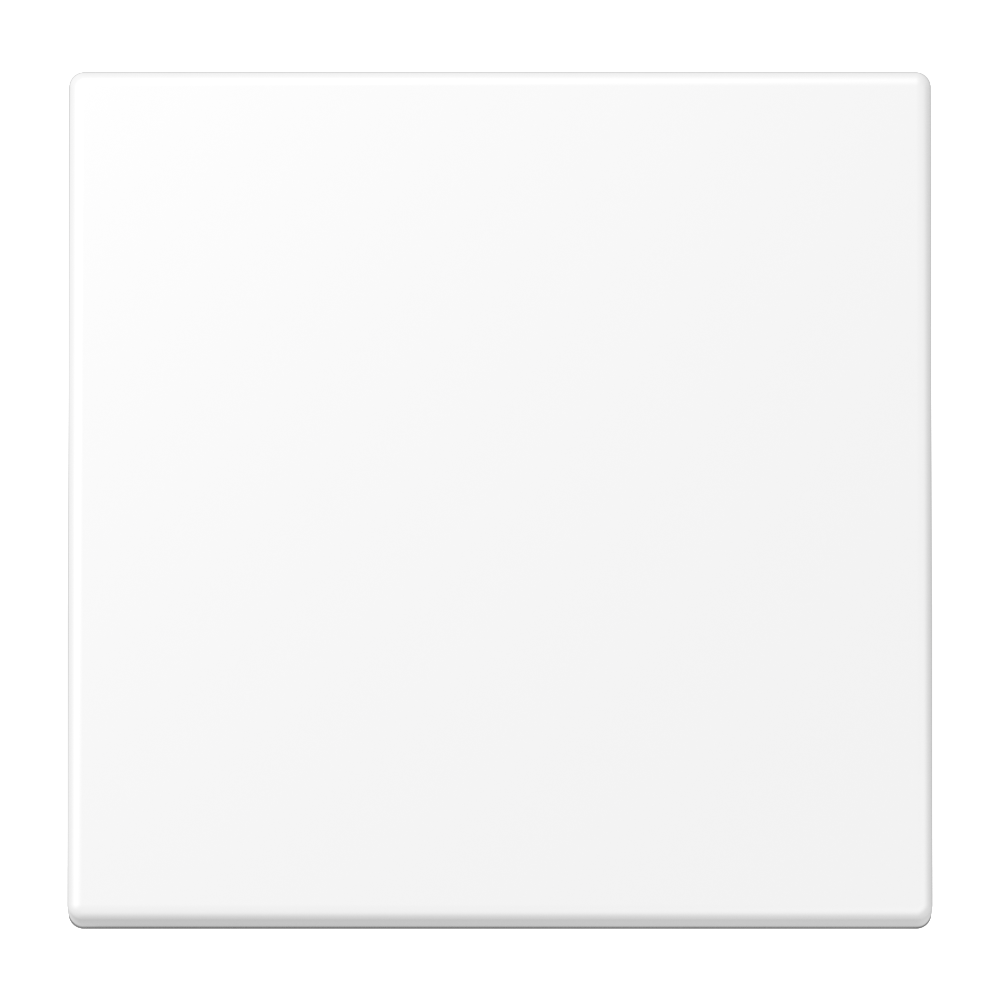

Rocker 1-gang, duroplastic lacquered, LS range, matt snow white

LS 990 WWM

Rocker 1-gang, matt snow white

LS 990 WWM

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
for multi push-button ref.-no.: 531-41 U (not metal versions)
in combination with multi push-button no IP44 possible

matt lacquered

Spare part:
holder plate ref.-no.: CD 90 HP
For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

More articles

Information

Article number:	LS 990 WWM
EAN/GTIN:	4011377186927
Colour:	matt snow white
Material:	duroplastic lacquered
Width:	70 mm
Height:	70 mm

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.039 KG
Length	71 MM
Height	17 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.391 KG
Length	212 MM
Height	94 MM
Width	96 MM
Outer carton
Packaging unit	100 pc.
Weight	4.15 KG
Length	470 MM
Height	225 MM
Width	190 MM
Palette
Packaging unit	4800 pc.
Weight	186 KG
Length	1200 MM
Height	1550 MM
Width	800 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

Frames

Frame 1-gang, matt snow white

Frame 1-gang, matt snow white

Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)

Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)

Frame 1-gang, matt snow white

Frame 1-gang, matt snow white

Surface cap 1-gang, matt snow white

Surface cap 1-gang, matt snow white
