Rocker 1-gang, LS range, stainless steel

ES 2990

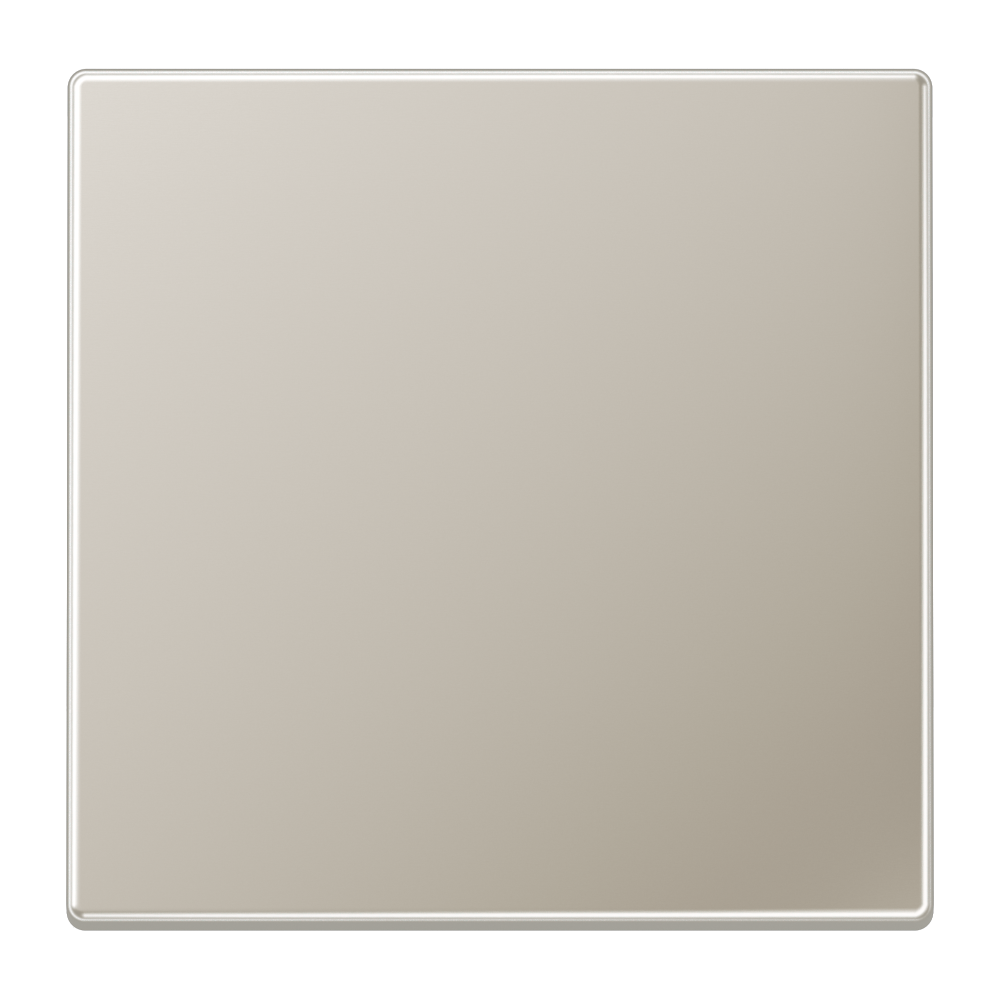

Rocker 1-gang, stainless steel

ES 2990

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U

Metal versions

Spare part:
holder plate ref.-no.: CD 90 HP
For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Individual laser engraving possible

More articles

Information

Article number:	ES 2990
EAN/GTIN:	4011377746909
Colour:	stainless steel
Material:	stainless steel 1.4303 X4 CrNi 18-12
Width:	70 mm
Height:	70 mm

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.048 KG
Length	70 MM
Height	24 MM
Width	68 MM
Carton
Packaging unit	10 pc.
Weight	0.574 KG
Length	210 MM
Height	96 MM
Width	94 MM
Outer carton
Packaging unit	100 pc.
Weight	5.98 KG
Length	455 MM
Height	215 MM
Width	185 MM
Palette
Packaging unit	6000 pc.
Weight	380.8 KG
Length	1200 MM
Height	1550 MM
Width	800 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

Frames

Frame 1-gang, stainless steel

Frame 1-gang, stainless steel

Frame 1-gang, stainless steel

Frame 1-gang, stainless steel

Frame 1-gang, stainless steel

Frame 1-gang, stainless steel

Surface cap 1-gang, stainless steel

Surface cap 1-gang, stainless steel

Additional items
