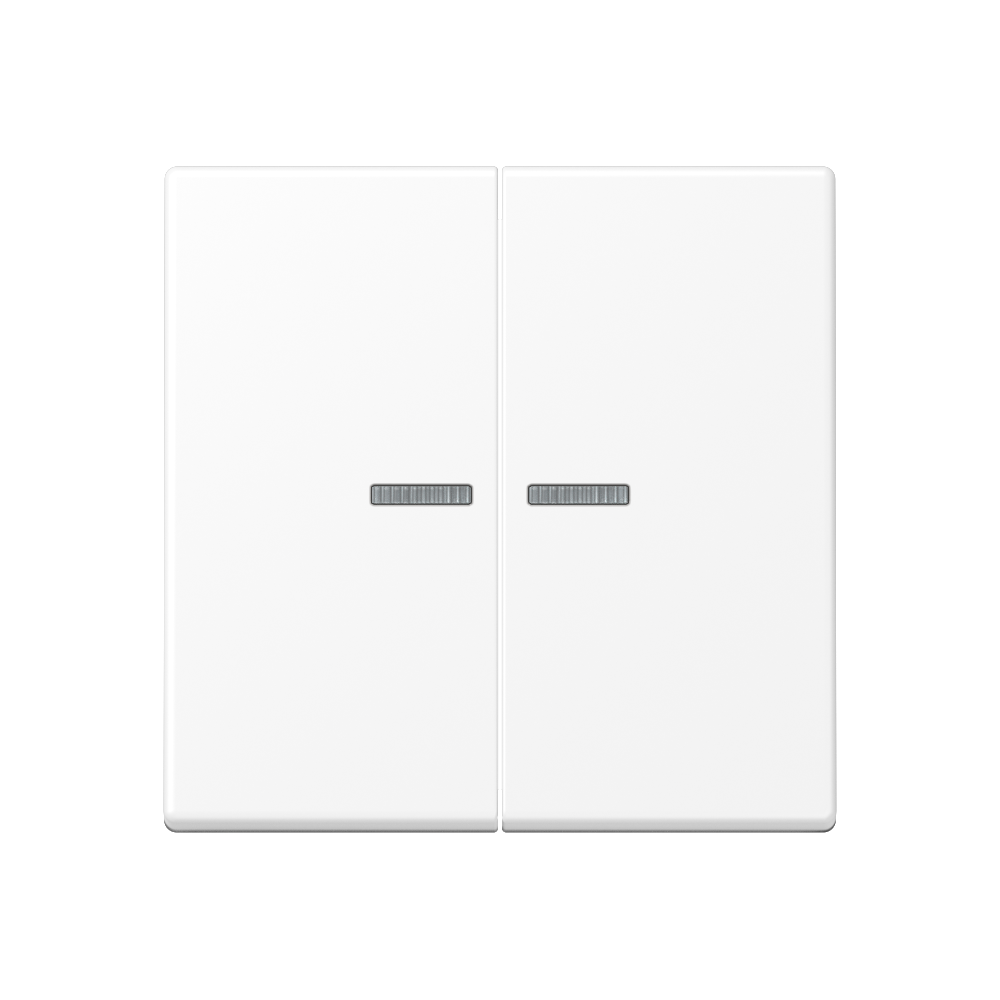

Rocker 2-gang, with lens, duroplastic lacquered, A range, matt snow white

A 595 KO5 WWM

Rocker 2-gang, with lens, matt snow white
arrow-slider
arrow-slider
  • Rocker 2-gang, with lens, matt snow white
arrow-left-slim
arrow-right-slim
  • Rocker 2-gang, with lens, matt snow white
A 595 KO5 WWM
arrow-left-slim
arrow-right-slim
  • Rocker 2-gang, with lens, matt snow white
for switch ref.-no.: 505 U 5
for switch with indicator light ref.-no.: 505 KOU 5
for push-button ref.-no.: 535 U 5

matt lacquered

Spare part:
holder plate ref.-no.: AS 90-5 HP
Read less... Read more...
Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
Individual colour printing possible
More articles

Information

Article number: A 595 KO5 WWM
EAN/GTIN: 4011377189140
Colour: matt snow white
Material: duroplastic lacquered
Width: 55 mm
Height: 55 mm
Read less... Read more...
Parsisiunčiama medžiaga
Rodyti visus parsisiuntimus
Aprašas konkursams
LT
Select language
Select language
EN
DE
AT
AE
GB
SG
ES
EE
FR
IT
LV
NL
PL
PT
RU
UA
ZH
Produkto aprašymas
LT
Select language
Select language
DE
AT
EN
AE
GB
SG
US
ES
EE
FR
IT
KR
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.028 KG
Length 54 MM
Height 22 MM
Width 54 MM
Carton
Packaging unit 10 pc.
Weight 0.27 KG
Length 212 MM
Height 98 MM
Width 96 MM
Read less... Read more...

Inserts

505 U 5

2-gang switch (insert), 2 x 1-pole, 1-way with 2 glow lamps ref.-no. 94, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way with 2 glow lamps ref.-no. 94, 10 AX, 250 V ~
505 KOU 5

2-gang switch (insert) with indicator light, 2 x 1-pole, 1-way with 2 glow lamps ref.-no. 94, 10 AX, 250 V ~
2-gang switch (insert) with indicator light, 2 x 1-pole, 1-way with 2 glow lamps ref.-no. 94, 10 AX, 250 V ~
535 U 5

2-gang push-button, 2 x 1-pole, 1-way NO contact with 2 glow lamps ref.-no. 94, 10 A, 250 V ~
2-gang push-button, 2 x 1-pole, 1-way NO contact with 2 glow lamps ref.-no. 94, 10 A, 250 V ~
505 KOVU 5

2-gang switch (insert) with indicator light, mechanical interlocking, 10 AX, 250 V ~
2-gang switch (insert) with indicator light, mechanical interlocking, 10 AX, 250 V ~

Frames

All products
A 5581 BF WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
AF 581 BF WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
AC 581 GL WW

Glass frame 1-gang, balta
Glass frame 1-gang, balta
AC 581 GL NB

Glass frame 1-gang, night blue
Glass frame 1-gang, night blue

Frames

A 5581 BF WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
AF 581 BF WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
AC 581 GL WW

Glass frame 1-gang, balta
Glass frame 1-gang, balta
AC 581 GL NB

Glass frame 1-gang, night blue
Glass frame 1-gang, night blue
AC 581 GL KG

Glass frame 1-gang, crystal grey
Glass frame 1-gang, crystal grey
AC 581 GL SG

Glass frame 1-gang, emerald green
Glass frame 1-gang, emerald green
AV 581 GLM WW

Glass frame 1-gang, balta
Glass frame 1-gang, balta
AV 581 GLM NB

Glass frame 1-gang, night blue
Glass frame 1-gang, night blue
AV 581 GLM KG

Glass frame 1-gang, crystal grey
Glass frame 1-gang, crystal grey
AV 581 GLM SG

Glass frame 1-gang, emerald green
Glass frame 1-gang, emerald green
A 5581 BF A WWM

Surface cap 1-gang, matt snow white
Surface cap 1-gang, matt snow white

Additional items

W-KEIL

Tastenheber
Tastenheber

Spare parts

AS 90-5 HP

Holder plate 2-gang, black
Holder plate 2-gang, black
